VB1940 USB 3.0 Camera Module 4K Main parameters
|
Module Number |
SNS-GM1133-V1.0 |
Sensor |
VB1940 |
|
Resolution |
5mp |
Dimension |
Customizable |
|
Lens FOV |
82 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Drive Free |
Products Description
The VB1940 USB 3.0 camera module integrates the VB1940 CMOS sensor, delivering 4K Ultra HD resolution (3840×2160) at 5MP for sharp and detailed imaging. With a high-speed USB 3.0 interface, it ensures fast data transmission and smooth video streaming with low latency, making it suitable for real-time applications.
Its compact and customizable design allows seamless integration into robotics, industrial systems, security devices, and multimedia platforms. Supporting Windows, Linux, Mac, and Android, it offers true plug-and-play functionality without additional drivers.
Key Features/Advantages
4K Ultra HD resolution (3840×2160) with 5MP CMOS sensor
High-speed USB 3.0 interface with smooth and stable transmission
Low-latency performance suitable for real-time video capture
Compact design for easy integration into embedded and industrial systems

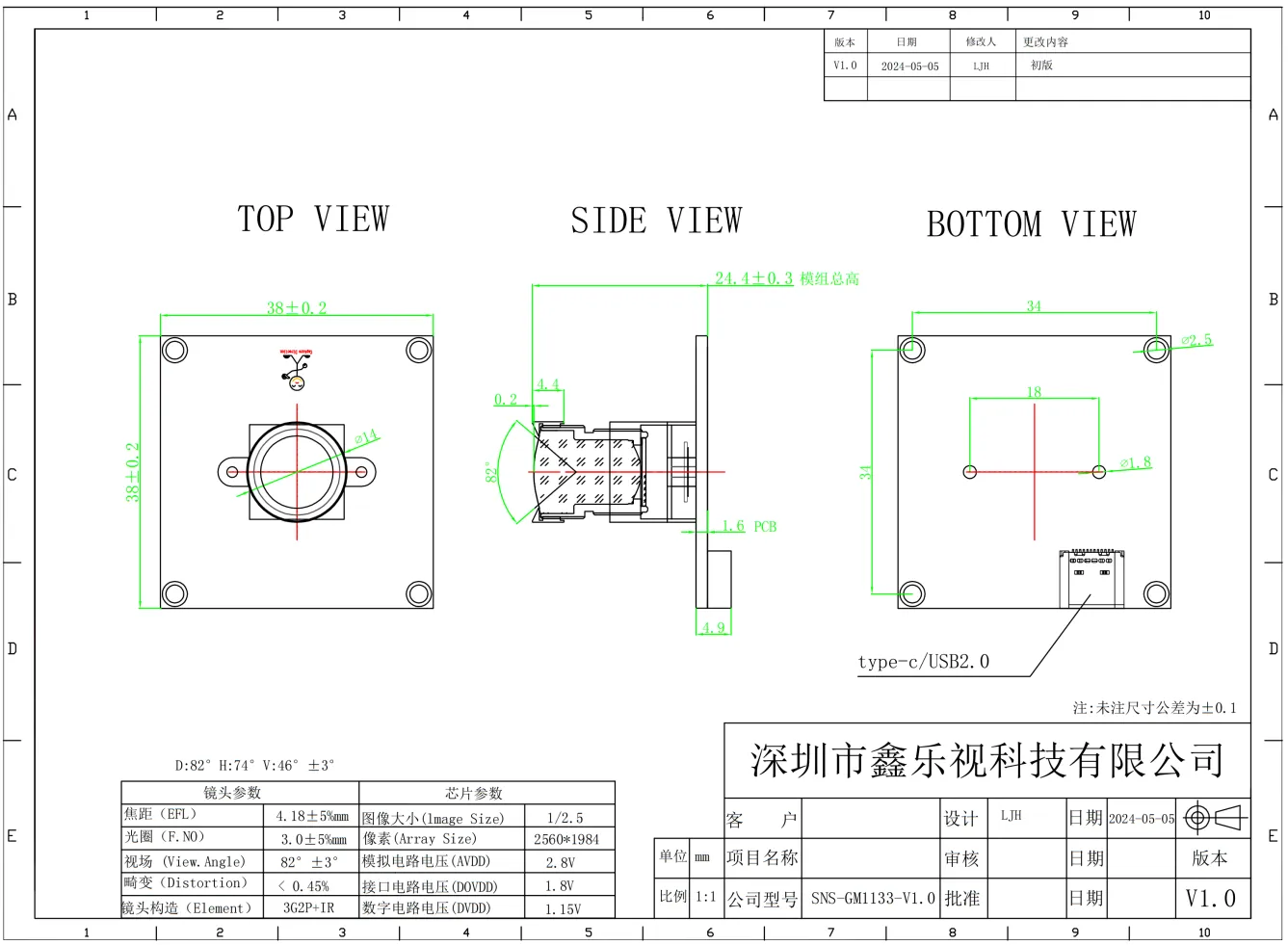

Product structure
Specification
|
Signal |
SNS-GM1133-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8inch |
||
|
Effective Pixels |
2592H*1944V |
|
|
|
Pixel size |
2.0 um*2.0 um |
|
|
|
Optical distortion |
<0.45% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
2592*1944 30 FPS 1920*1080 30 FPS 1600*1200 30 FPS |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
Type-c USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
3G2P+650IR |
|
|
|
F/NO |
3.0±5% |
|
|
|
EFL |
4.18 mm±5% |
|
|
|
FOV |
82°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|
Product Picture
Application areas of camera modules
1. Virtual Reality (VR) : For virtual reality devices that provide the high-quality image capture required for immersive experiences
2. Augmented Reality (AR) : for augmented reality applications that combine real world and virtual information to provide an enhanced visual experience
3. 3D Scanning and modeling: Used for 3D scanning and modeling to capture three-dimensional information about objects for design and manufacturing
