2MP 60FPS Dual Lens OG02B10 Camera Module
|
Module Number |
SNS-2MP-OG02B10-HQK1 |
Sensor |
1/2.9'' Omnivision OG02B10 |
|
Resolution |
2MP 1600(H) X 1200(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Dual Lens |
Products Description

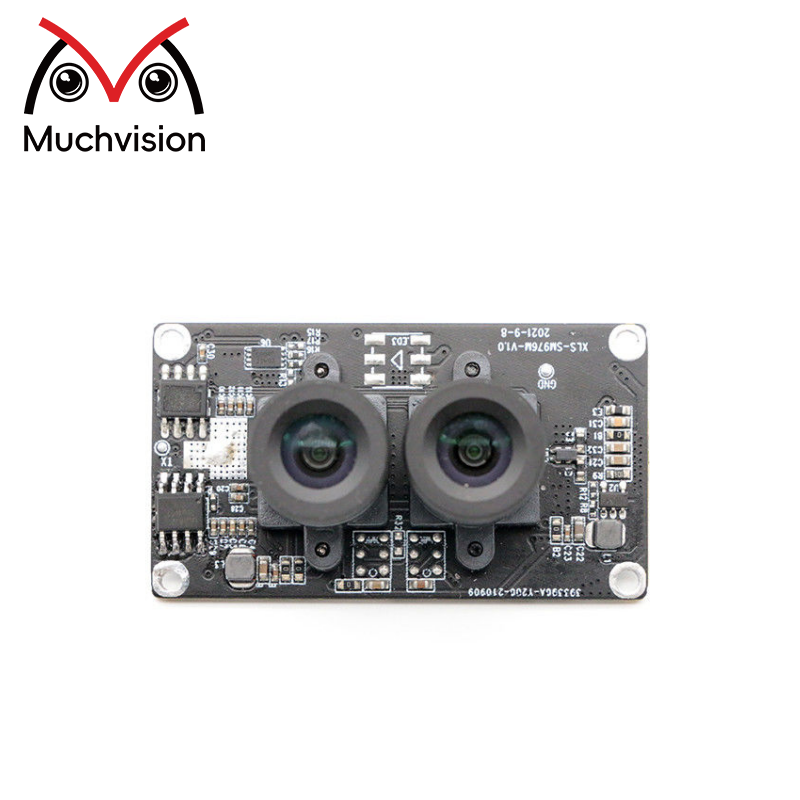

This 2MP USB camera module uses dual OmniVision OG02B10 sensors with global shutter technology. It captures 1600x1200 resolution at 60FPS, providing smooth and clear video without motion blur.
The fixed-focus lenses deliver sharp images, and a manually adjustable focus option is available for specific installation needs. With high optical clarity from its 6G lens structure and optional 90° field of view, it is ideal for fast-moving objects and precision applications.
Compact and low-power, this module suits robotics, industrial inspection, machine vision, and other real-time imaging applications. Its USB2.0 interface makes integration simple and versatile.
Highlights
Dual 2MP sensors: High-resolution imaging at 1600x1200.
Global shutter: Eliminates motion artifacts for fast-moving objects.
60FPS video: Smooth real-time video output.
Flexible focus: Fixed-focus standard, optional manual adjustment.
Compact and efficient: Low power consumption, easy USB2.0 integration.
Specification
|
Model No |
SNS-2MP-OG02B10-HQK1 |
|
Sensor |
1/2.9'' Omnivision OG02B10 |
|
Pixel |
2 Mega Pixel |
|
Most effective pixels |
1600(H) x 1200(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed Focus/Manually Adjustable |
|
Clock Frequency |
6 to 27 MHz |
|
Chief Ray Angle (CRA) |
15° |
|
Microphone |
Optional |
|
Interface type |
USB 2.0 high speed |
|
|
Brightness/Contrast/Color saturation/Hue/Definition/Gamma |
|
Lens |
Lens Structure: 6G |
|
Lens Size: 1/2.5 inch |
|
|
H FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, <200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
(compatible ) |
|
Storage temperature |
-20°C to 75°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
