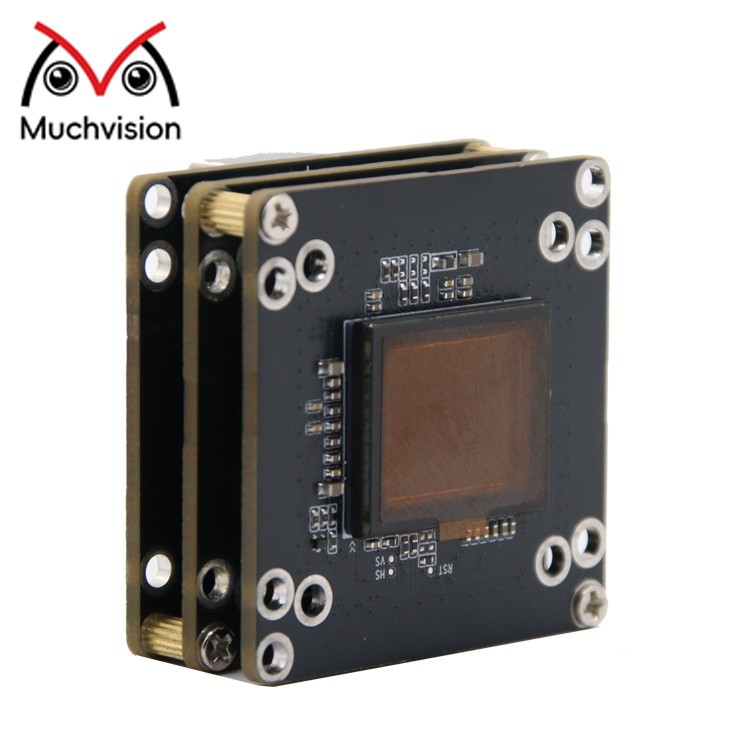

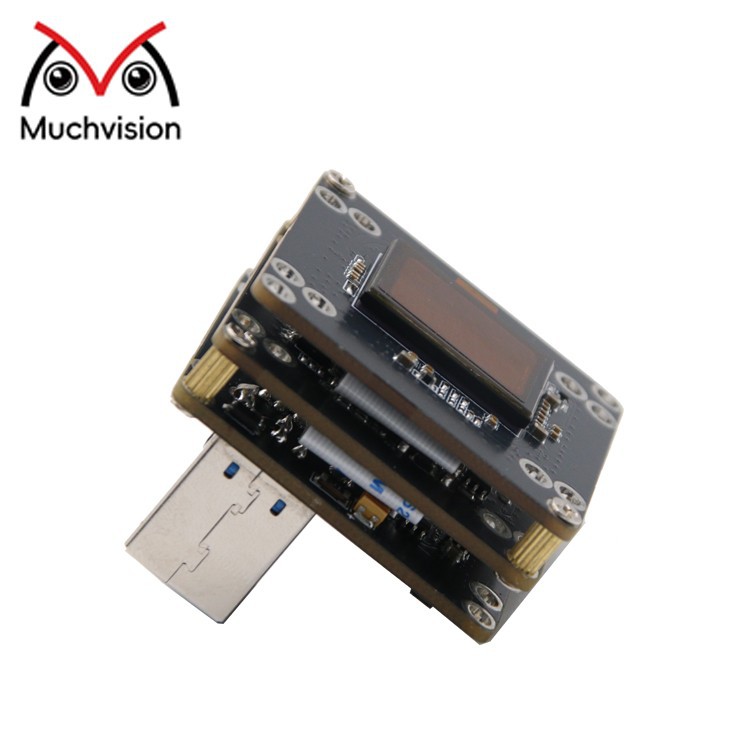

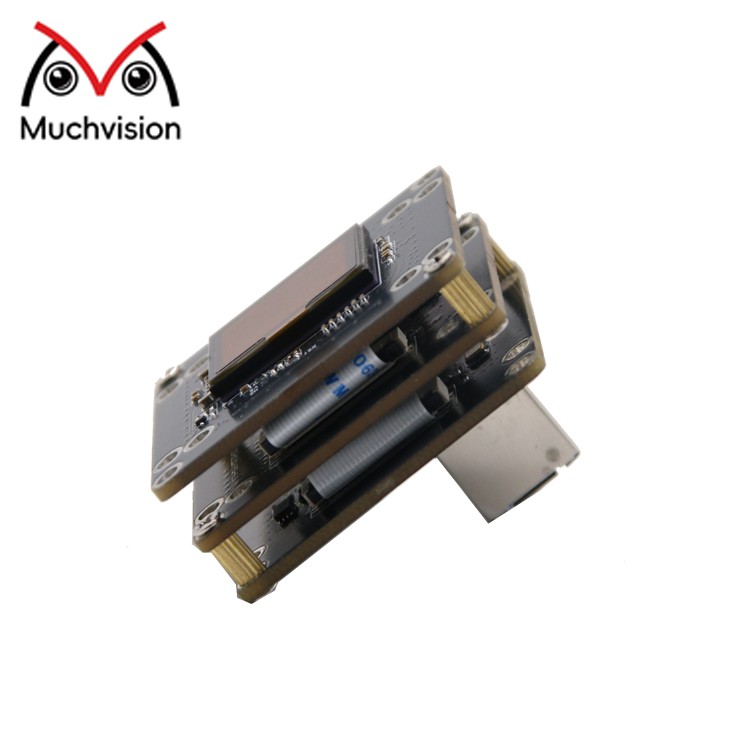

USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS

USB3.0 Camera Module 1/1.2 Inch Sensor 1080P 90FPS

Module Number:SNS-DZ1224-48-V1.0
Sensor:1/1.2” inch
Resolution:1920 × 1080
Dimension:(customizable)

Model:Signal SNS-DZ1224-48-V1.0
Image Sensor Size:1/1.2” inch
Effective Pixels:1920 × 1080
Pixel Size:5.8 µm × 5.8 µm
Send Inquiry
Add To Inquiry
Description
Technical Parameters

Module Number

SNS-DZ1224-48-V1.0

Sensor

1/1.2" inch

Resolution

1920 × 1080

Dimension

(customizable)

Lens FOV

85°(optional)

Focus Type

FF

Interface

USB3.0

Feature

Full HD,USB3.0



Products Description



This USB3.0 CMOS camera module is designed for video conferencing, streaming, and security surveillance. Equipped with a 1/1.2 inch sensor, it captures 1080P video at 90fps, ensuring smooth communication and professional video quality.

The sensor delivers clear and vivid images, even in low light conditions, making it suitable for indoor and outdoor use. The USB3.0 interface with 3Gbps speed enables real-time, uncompressed image transfer, ensuring seamless performance during video calls and streaming.

It supports still images in JPG and BMP formats as well as dynamic video recording in AVI and MP4. Image enhancement features include adjustable exposure, brightness, contrast, and color balance.



Highlights



1080P Full HD video at 90fps with 1/1.2 inch CMOS sensor

High quality video conferencing and online streaming

Excellent low light performance for surveillance

USB3.0 plug and play with 3Gbps transfer speed



parameter



Item

Specification

Model

Signal SNS-DZ1224-48-V1.0

Image Sensor Size

1/1.2" inch

Effective Pixels

1920 × 1080

Pixel Size

5.8 µm × 5.8 µm

Image Sensor Data Output

Raw Bayer 10 bits

Video Output Format

MJPG / YUY2

Maximum Resolution & Frame Rates

- 1920 × 1080 → MJPG 90 FPS / YUY2 60 FPS
- 1280 × 960 → MJPG 90 FPS / YUY2 90 FPS
- 1280 × 720 → MJPG 90 FPS / YUY2 90 FPS
- 640 × 480 → MJPG 90 FPS / YUY2 90 FPS

SNR (max)

TBD

Dynamic Range

TBD

Minimum Illumination

TBD

Digital Interface

USB3.0 (Type-B)

Transfer Rates

3 Gbps

Power Requirements

5V ± 5%

Storage Temperature

-40℃ ~ 70℃

Operating Temperature

-30℃ ~ 60℃

Power Consumption

NO LED / IR-LED / PCB printing ink black

Operating System Support

Windows XP / Vista / 7 / 8.1 / 10 / Mac / Android / Linux 2.6.2 (UVC supported)

Effective Focal Length (EFL)

/

F/NO (Aperture)

/

Field of View (FOV)

/

Optical Distortion

/

Lens Construction

/

Lens View (Default Lens)

/

Focus Type

Fixed focus

Shooting Distance

60 cm ~ ∞
