Two Micro USB3.0 12mp Module IMX377
|
Module Number |
SNS-GM1024-V1.0-57 |
Sensor |
IMX577/377 |
|
Resolution |
12mp 4072(H) X3064 (V) |
Dimension |
Customizable |
|
Lens FOV |
Optional |
Focus Type |
Fixed Focus |
|
Interface |
USB3.0 |
Feature |
FHD |
Products Description
The dual-microphone Sony IMX377 USB 3.0 camera module offers 12MP resolution (4072x3064) with 4K full-frame imaging, capturing high-quality video with accurate color and low noise.
Equipped with two microphones, it records synchronized audio and video, enhancing security monitoring and surveillance applications. The USB 3.0 interface ensures smooth, high-speed video streaming without lag.
Compact and standardized, the module is easy to integrate into existing systems. Optional lenses and customizable dimensions make it flexible for various security and industrial applications.
Highlights
Sony IMX377 sensor: 12MP full-frame high-definition imaging
Dual microphones: Synchronized audio and video capture
4K resolution: Clear, detailed, high-quality video
USB 3.0 high-speed transmission: Smooth, real-time streaming
Product structure
Specification
|
Effective Pixels |
4072 (H) x3064 (V) |
|
Image Sensor |
(Type 1/2.3)12.3 Mega-pixel CMOS |
|
Sensor Type |
Sony IMX577 |
|
Chip size |
7.564 mm (H) × 5.476 mm (V) |
|
Substrate material |
Silicon |
|
operating temperature |
-20 to +75 ˚C |
|
storage temperature |
-30 to +80 ˚C |
|
Input frequency range |
27.0 MHz |
|
Dimensions |
Customizable |

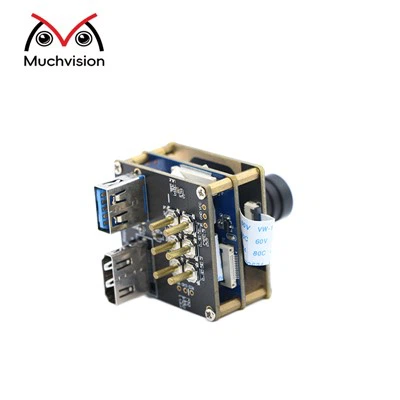

Product Picture
