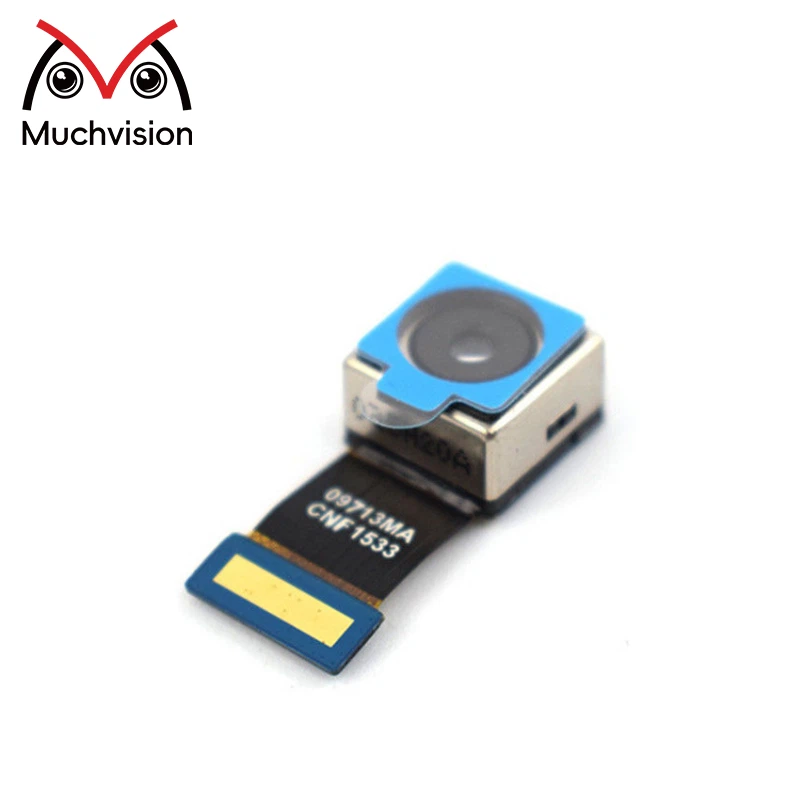

13MP CSI2 Camera Module Sony IMX214 HD
|
Module Number |
SNS-CNF1355 |
Sensor |
1/3.06"SONY IMX214 |
|
Resolution |
13MP (4208*3120) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Auto Focus |
|
Interface |
MIPI CSI2 |
Feature |
HD |
Products Description
This 13MP USB camera module uses the Sony IMX214 sensor to capture ultra-high-definition images at 4208x3120 resolution.
It integrates a MIPI CSI2 interface with PCB board and USB cable, making it ideal for compact devices. The module supports fast autofocus, ensuring clear images for high-speed recognition and scanning applications.
The IMX214 sensor provides excellent image quality and cost performance. Its compact size (19.25mm x 8.5mm) allows flexible integration. Customization options include module dimensions and lens FOV.
This module is suitable for high-speed cameras, document scanners, and professional imaging devices requiring high resolution and precise focus.
Highlights
13MP ultra-high resolution: 4208x3120 pixel images with clear detail
Sony IMX214 sensor: ensures excellent image quality and cost efficiency
Fast autofocus: captures clear images quickly for efficient operations
Compact and customizable: 19.25x8.5mm, supports FOV and dimension customization
MIPI CSI2 interface: stable data transmission for professional imaging applications
Product Structure
Specification
|
Pixel Size |
1.4μm x 1.4μm |
|
Effective Pixels |
4208*3120 |
|
Image Sensor |
1/3.06" |
|
Sensor Type |
IMX214 |
|
Lens View |
FOV80°(Optional),F/N(Optional) |
|
TV Distortion |
<1% (Optional) |
|
Temperature(Operation) |
0～60℃ |
|
Temperature(Storage) |
-20～70℃ |
|
Dimension |
19.25*8.5mm (Customizable) |
