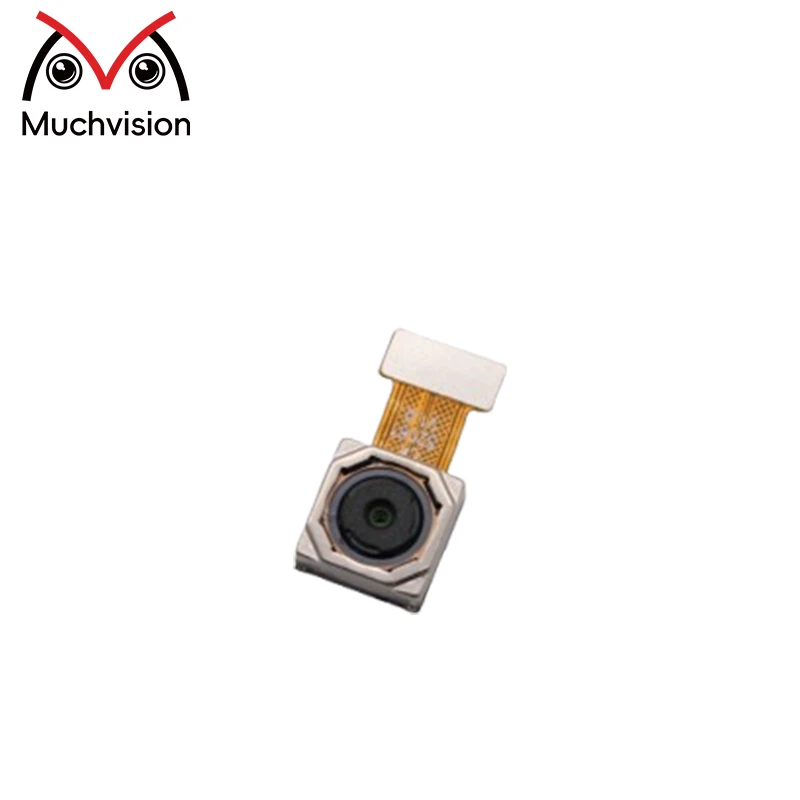

GC05A2 5MP CMOS Camera Module 30fps RAW10 RAW8 Formats

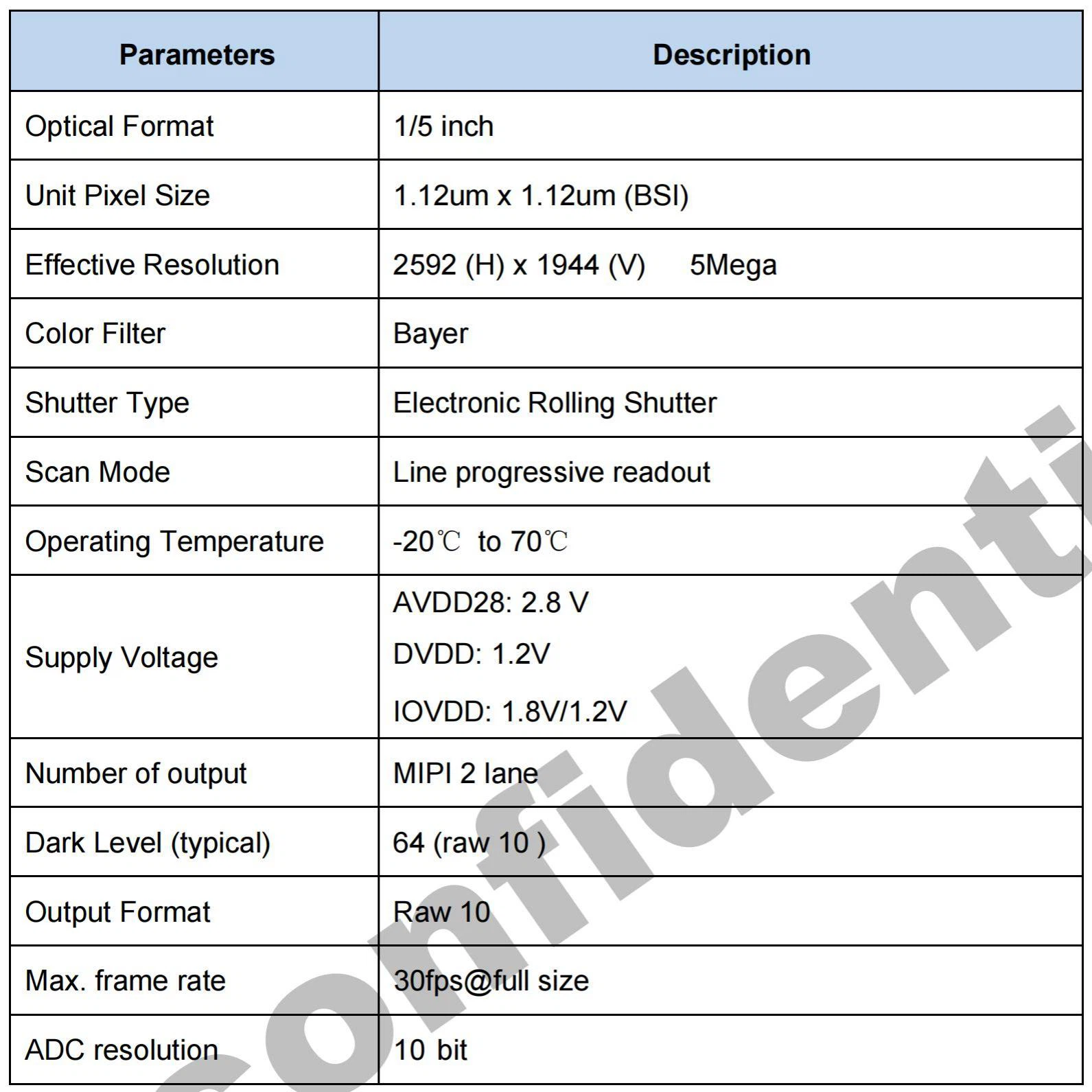

The GC05A2 CMOS image sensor is built with a 2592H x 1944V pixel array, delivering 5 megapixel effective resolution. It integrates a 10-bit ADC and image signal processor, ensuring consistent image capture quality.

The sensor has a 1 over 5 inch optical format with 1.12μm pixel size, designed for high integration and stable performance. It outputs in RAW10 and RAW8 formats through a MIPI 2 lane interface, providing flexibility for different imaging systems.

With a frame rate of 30fps at full resolution, the GC05A2 supports smooth imaging in compact devices. Its rolling electronic shutter and progressive scan mode ensure detailed capture with reduced complexity.

5 megapixel resolution with 2592 x 1944 pixel array

30fps full resolution output with stable performance

Supports RAW10 and RAW8 data output formats

MIPI 2 lane interface for flexible integration
