Module Number |
XLS52032-V1.0 |
Sensor |
OV5670 |
|
Resolution |
2560x1440 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
FF |
|
Interface |
MIPI |
Feature |
HDR |

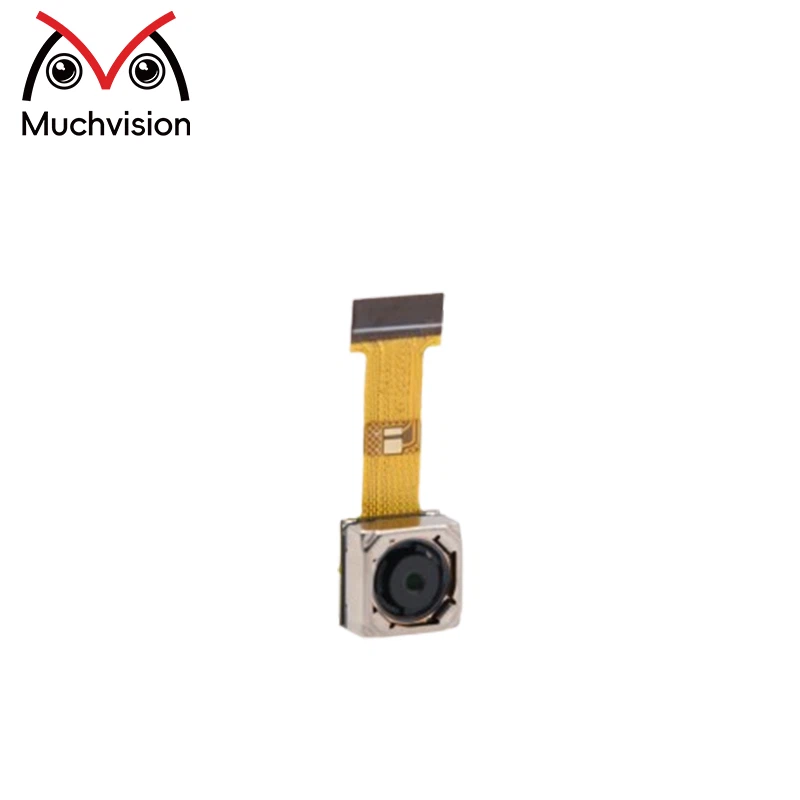

Products Description
The OV5670 sensor provides 5MP full HD video with HDR and rolling shutter. It supports 10-bit RGB RAW output and 2-lane MIPI interface, making it easy to integrate into industrial and surveillance cameras.
Frame rates include 30fps at 5MP, 60fps at 1080P, and 120fps at VGA, covering multiple video requirements.
On-chip features such as defective pixel correction, noise reduction, and stable color rendering deliver clean, reliable images.
Highlights
5MP full HD HDR video
Rolling shutter with flexible frame rates
2-lane MIPI interface for industrial integration
Noise reduction and pixel correction
Structure diagram
parameter
|
Item |
Specification |
|
Active Array Size |
2592 × 1944 |
|
Pixel Size |
1.12 µm × 1.12 µm |
|
Image Area |
2945.7 µm × 2214 µm |
|
Lens Size |
1/5" |
|
Lens Chief Ray Angle (CRA) |
31° non-linear (see figure 9-2) |
|
Input Clock Frequency |
6 ~ 27 MHz |
|
Output Interface |
2-lane MIPI serial output |
|
Output Formats |
10-bit RGB RAW |
|
Maximum Frame Rate |
- 5MP (2592 × 1944) → 30 FPS |
|
Power Supply |
- Analog: 2.6 ~ 3.0V (2.8V nominal) |
|
Power Requirements |
Active: TBD |
|
Sensitivity |
TBD |
|
Maximum S/N Ratio |
TBD |
|
Dynamic Range |
TBD |
|
Dark Current |
TBD |
|
Operating Temperature |
-30°C ~ +85°C junction temperature |
|
Stable Image Temperature |
0°C ~ +60°C junction temperature |
|
Package Dimensions |
4080 µm × 3430.2 |
