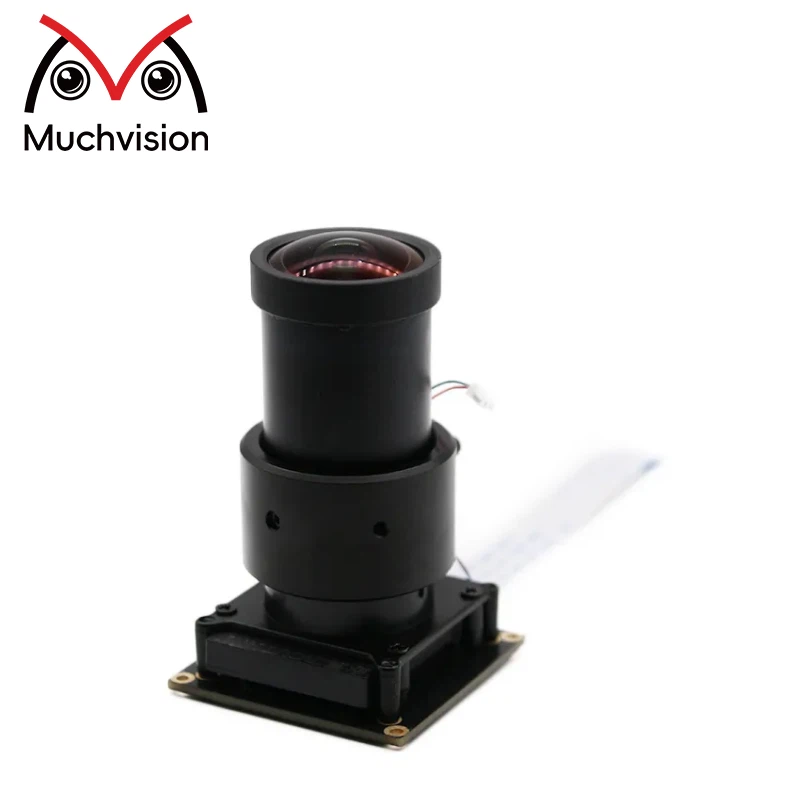

Global Exposure 8mp Starvis IMX567/568 camera module
|
Module Number |
XLS-IMX567/568-8mp |
Sensor |
Snoy IMX567/568 CMOS |
|
Resolution |
8MP 2840(H)x2840(V) |
Dimension |
(customizable) |
|
Lens FOV |
70°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Global Exposure |
Products Description
This module excels in scenarios requiring high image integrity and real-time performance. In machine vision applications, it enables precise dimensional measurement, product appearance inspection, and rapid identification of minor defects and scratches, ensuring clear and accurate detection results on high-speed production lines. In computer vision applications requiring high-precision computation and analysis, such as 3D reconstruction and AI visual data acquisition, its distortion-free characteristics are particularly critical.
The module uses a MIPI interface and supports customizable FPC length, offering flexible integration solutions ideal for compact devices. It is compatible with Windows, Android, and Linux operating systems and supports color/monochrome RAW output formats, providing developers with powerful flexibility.
If you are interested in this module or your project is seeking a suitable module, please feel free to contact us. Our engineers will provide you with excellent solutions.
Highlights
1:1 high-resolution image: Uses Sony IMX567/568 sensor, outputs 8mp image, keeps the picture high-definition.
Global exposure: eliminates motion distortion, ensuring clear and undistorted images in fast-moving scenes.
Wide range of application scenarios: performs well in machine vision (dimensional measurement, defect detection) and computer vision (3D reconstruction, AI data acquisition).
High integration and compatibility: MIPI interface, supports FPC length customization, and provides flexible development options.
Specification
|
Product No |
XLS-IMX567-8MP |
XLS-IMX568-8MP |
|
CMOS Sensor |
1/1.8" Sony lMX567, Mono/color, 5.1 Mpixel |
1/1.8" Sony lMX568, ono/color, 5.1 Mpixel |
|
Active pixels |
2472(H)x2064(V) |
2472(H)x 2064(V) |
|
Pixel size |
2.74(H)x2.74(V)um |
2.74(H)x 2.74(V)um |
|
Active sensor size |
6.773(H)x5.655(v)mm |
6.773(H)x5.655(V)mm |
|
Shutter type |
Global Shutter |
Global Shutter |
|
ADC Resolution |
8 Bit / 10 Bit / 12 Bit |
8 Bit / 10 Bit/ 12 Bit |
|
CS1-2 output |
2 lanes/ 4 lanes / RAW 8, 10 or 12 |
2 lanes/ 4 lanes / RAW 8. 10 or 12 |
|
CS1-2 maximum speed |
1.2 Gbps/lane max. |
1.2 Gbps/lane max. |
|
CSl-2 default speed |
1.2 Gbps/lane |
1.2 Gbps/lane |
|
Max fps (full res.. 4 lanes) |
97.0 fps at 8 Bit/ 79.4 fps at 10 Bit/ 67.2 fps at 12 Bit |
97.0 fps at 8 Bit/ 79.4 fps at 10 Bit/ 67.2 fps at 12 Bit |
|
Output modes |
streaming mode, fast trigger mode |
streaming mode, fast trigger mode |
|
Shutter resolution |
1 horizontal unit |
1 horizontal unit |
|
Gain |
0-24dB analog gain + 24-48dB digital gain |
0-24dB analog gain + 24-48dB digital gain |
|
S/N ratio |
n/a |
n/a |
|
dynamic range |
n/a |
n/a |
|
HDR |
NO |
NO |
|
CRA |
n/a |
n/a |
|
ROl/cropping support |
YES |
YES |
|
Binning/subsampling support |
Yes: 2x2 binning / Yes |
Yes: 2x2 binning / Yes |
|
Reverse modes |
for vertical or horizontal: nommal or inverted readout |
for vertical or horizontal: normal or inverted readout |
|
Trigger input |
YES |
YES |
|
Flash output |
YES |
YES |
|
Power consumption |
210mA(@3.3V) max. when active |
180mA(@3.3V) max. when active |
|
Standby current |
50mA |
45mA |
|
Operating temperature |
-30 to +75 deg C, non-condensing |
-30 to +75 deg C, non-condensing |
|
Storage temperature |
-30 to +80 deg C |
-30 to +80 deg C |
|
Performance guarantee temperature |
-10 to +60 deg C |
-10 to +60 deg C |
|
Supply voltage |
3.3V +/- 5% at input of module (not including voltage drop on cable) |
3.3V +/- 5% at input of module (not including voltage drop on cable) |
