Module Number |
SNS32182-V1.0 |
Sensor |
Sony IMX290 CMOS |
|
Resolution |
2304 × 1296 |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Full HD |
Products Description

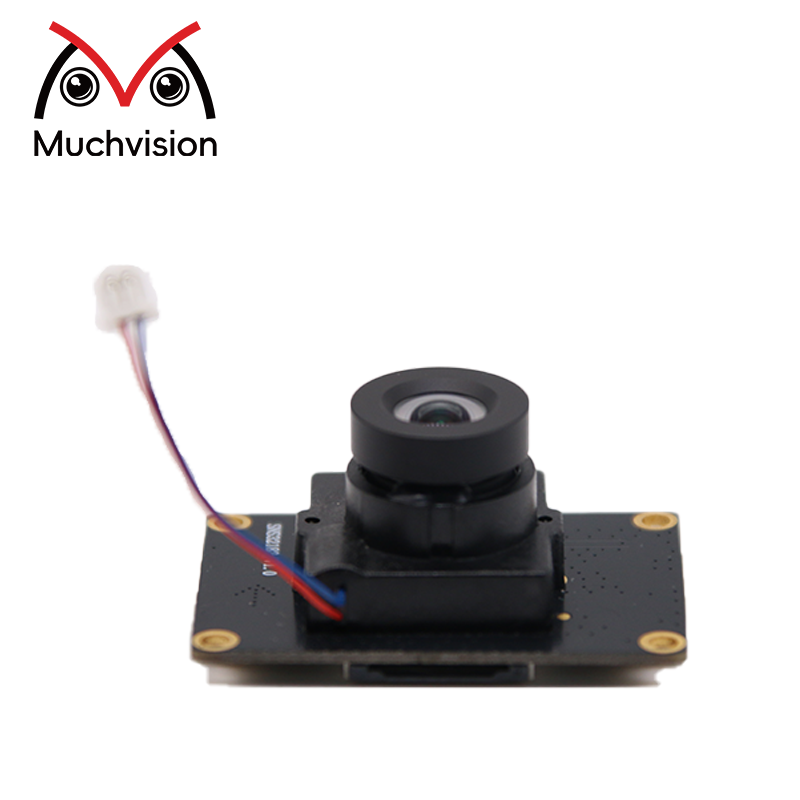

Looking for a compact and versatile camera module for your next device? The SC3336 3MP MIPI sensor is built for real-world use, with smooth 30fps video, a wide 130° optional lens, and true-to-life color reproduction.
Thanks to its rolling shutter, RAW output support, and advanced noise control, images remain natural and detailed. Developers can rely on its MIPI interface for easy integration into platforms like Android, Linux, and embedded systems, while the robust design withstands -30°C to +85°C operating conditions.
Ideal for smart homes, facial recognition systems, drones, dashcams, and compact digital cameras, this module helps create devices that feel reliable, responsive, and user-friendly.
Highlights
3MP resolution (2304×1296) at 30fps with smooth video output
Wide 130° optional field of view for enhanced coverage
78 dB dynamic range with excellent low-light sensitivity
Compact MIPI module with fixed focus design for easy integration
Structure diagram
parameter
|
Parameter |
Specification |
|
Model |
SNS32182-V1.0 |
|
Sensor |
SmartSens SC3336 |
|
Interface |
MIPI (1/2 Lane, 8/10-bit) |
|
Optical Format |
1/2.8 inch |
|
Pixel Size |
2.45 µm × 2.45 µm |
|
Resolution |
2304 × 1296 (3MP) |
|
Frame Rate |
30 fps (2304×1296 @10-bit) |
|
Shutter Type |
Electronic rolling shutter |
|
Focus Type |
Fixed Focus (FF) |
|
Lens FOV (optional) |
130° |
Electrical Characteristics
|
Parameter |
Value |
|
Analog Supply (AVDD) |
2.8 V ±0.1V |
|
Digital I/O (DOVDD) |
1.8 V ±0.1V |
|
Digital Core (DVDD) |
Internal LDO (external supply optional, contact FAE) |
|
Power Consumption |
Low power, optimized for embedded systems |
Image Quality Features
|
Feature |
Details |
|
ADC Resolution |
10-bit |
|
Output Format |
RAW RGB |
|
Dynamic Range |
78 dB |
|
SNR (Signal-to-Noise) |
38 dB |
|
Sensitivity |
5053 mV/lux·s |
|
CRA (Chief Ray Angle) |
15° |
|
Image Processing |
Windowing, H-mirror, V-flip |
|
External Sync |
EFSYNC/FSYNC exposure control |
Mechanical Characteristics
|
Parameter |
Specification |
|
Module Size |
75 × 8.5 mm |
|
Sensor Package |
CSP, 6.199 mm × 4.139 mm, 35-pin |
|
Package Height |
16.1 ±0.3 mm |
|
Base Dimensions |
20 × 18.9 mm |
|
Operating Temp. |
-30°C ~ +85°C |
|
Optimal Temp. Range |
-20°C ~ +60°C |
|
IR Filter |
650 nm cutoff |
|
ESD Protection |
HBM: Class 3A / CDM: Class C3 |
