IMX390 Camera Module 2MP 1080P HDR 120fps Low Light MIPI Interface for Raspberry Pi and Embedded Vision

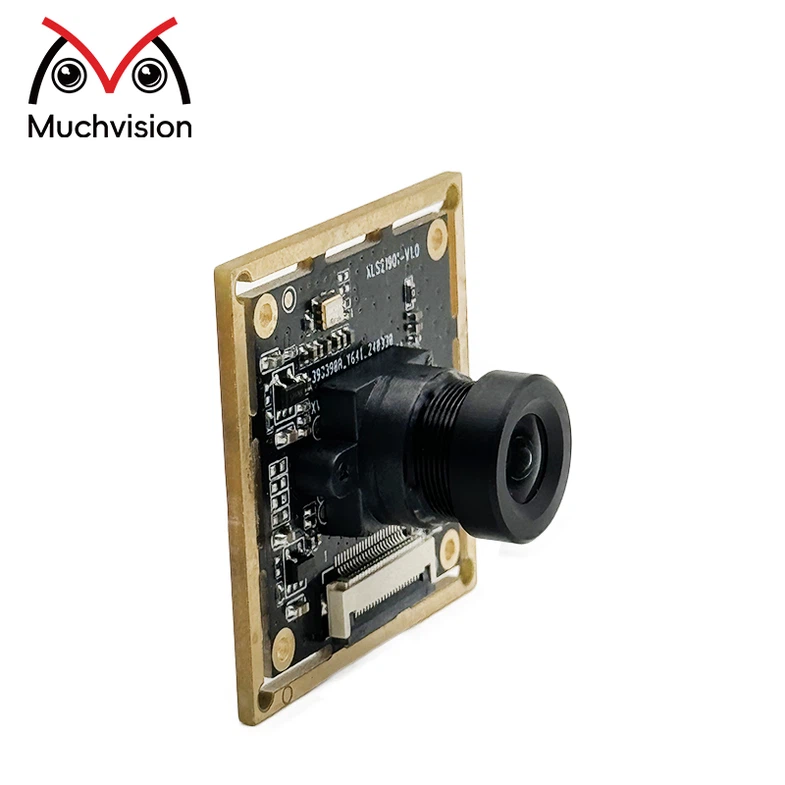

The IMX390 camera module is powered by the SONY 1/2.8" 2MP CMOS sensor, supporting 1080P (1920×1080) resolution with excellent image quality. It integrates HDR technology up to 120dB, enabling clear imaging in high-contrast lighting conditions, while maintaining excellent low-light performance.

Its compact structure (18.1±0.2mm height, 13.2×13.2mm base) makes it suitable for integration into embedded systems. The 650nm IR filter effectively reduces infrared interference, ensuring higher image purity. The MIPI interface provides compatibility with Raspberry Pi and mainstream embedded development platforms, supporting smooth video output up to 120fps in Full HD.

High Dynamic Range (HDR): Up to 120dB for clear imaging in complex light conditions

Excellent Low-Light Sensitivity: Delivers sharp images in dim environments

Compact Module Design: 18.1mm height and 13.2×13.2mm base for easy integration

650nm IR Filter: Reduces infrared interference and enhances image clarity

1. Product introduction.

◆CMOS active pixel type dots

◆Built-in timing adjustment circuit, H/ driver and serial communication circuit

◆Input frequency: 74.25 MHz/ 37.125 MHZ

◆Number of recommended recording pixels: 1920 (H)x 1080 (V) approx 2.07M pixel

◆Readout mode

  All-pixel scan mode

  720p-HD readout mode

  Window cropping mode

  Vertical / Horizontal direction-normal / inverted readout mode

◆Readout rate

  Maximum frame rate in Full HD 1080p mode: 120 frame / s

◆Wide dynamic range (WDR) function

  Multiple exposure WDR

  Digital overlap WDR

◆Variable-speed shutter function (resolution 1H units)

◆10-bit/ 12-bit AD converter

◆Conversion gain switching (HCG Mode / LCG Mode)

◆CDS/PGA function

  0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB)

  30.3 dB to 63 dB: Analog Gain 30 dB + Digital Gain 0.3 to 33 dB (step pitch 0.3 dB)

◆Supports l/O switching

  CMOS logic parallel SDR output

  Low voltage LVDS (150 m Wp-p) serial ( 2 ch /4 ch switching) DDR output

  CS1-2 serial data output ( 2 Lane /4 Lane, RAWV10 / RAWV12 output)

◆Recommended exit pupil distance:-30 mm to -

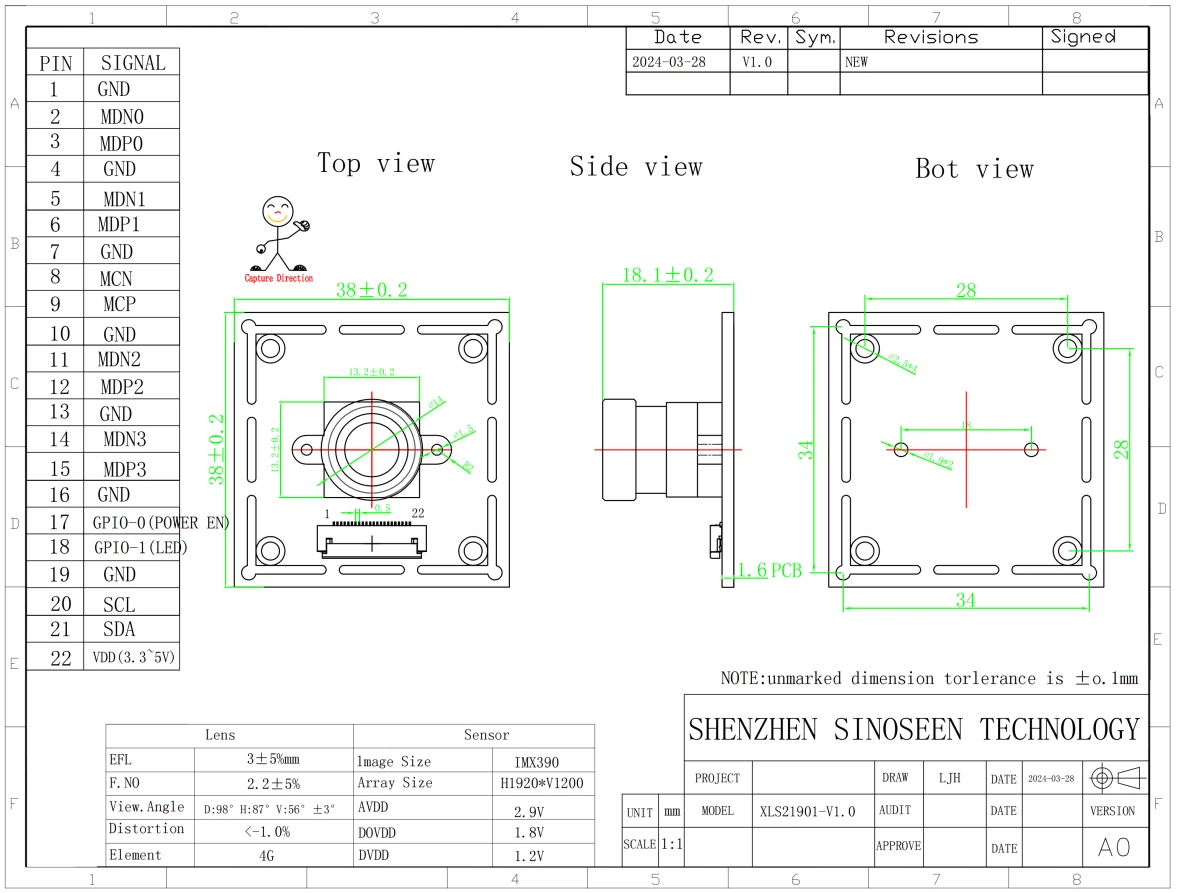

2.Specifications and features.

Total height: 18.1±0.2mm

Base size: 13.2*13.2±0.2mm

Image size: 1920*1080

IR filter: 650

Chip parameters.

◆CMOS image sensor

◆lmage size

  Type 1/2.8

◆Total number of pixels

  1945 (H)x 1109 (V) approx. 2.16 M pixels

◆Number of effective pixels

  1945 (H) x 1097 (V) approx. 2.13 M pixels

◆Number of active pixels

 1937 (H) x 1097 (V) approx. 2.12 M pixels

◆Number of recommended recording pixels

  1920 (H) x 1080 (V) approx. 2.07 M pixels

◆Unit cell size

  2.9 μm (H) x 2.9 μm (v)

◆Optical black

  Horizontal (H) direction: Frnt 0 pixels, rear 0 pixels

  Vertical (v) direction: Front 10 pixels, rear 0 pixels

◆Dummy

  Horizontal (H) direction: Front 0 pixels, rear 3 pixels

  Vertical (w) direction: Front 0 pixels, rear 0 pixels

◆Substrate material

  Silicon

1. Medical endoscope: Used in medical to provide a clear image of the interior to assist the doctor in diagnosis

2. Vehicle recorder: Used for vehicle recorder to record video and images during driving and provide evidence of accidents

3. Barcode scanning: Used for barcode scanning in industrial automation to improve logistics and warehousing efficiency

Hot Tags: IMX390 camera module, 2MP HDR camera, 1080P MIPI camera, low light camera module, automotive camera sensor, Raspberry Pi camera module, ADAS camera module, IMX178 USB Camera Module Raspberry Pi
