1D 2D QR Code / Barcode Scanner Module
|
Module Number |
WH-1036 |
Acquisition Speed |
1/30Fps(E21W) 1/120fps(E21W1) |
|
Print Contrast |
20% Minimum Reflectance |
Precision |
≥5mil |
|
FOV |
Diagonal84,Level72,Vertical54 |
Input Voltage |
3-3.6V Or 3.6-16V |
Products Description
This advanced 1D/2D barcode scanner module is specifically designed for embedded vending machine applications, offering fast and accurate QR code scanning capabilities. The compact device features high-speed decoding, excellent motion tolerance, and robust performance in various lighting conditions. Its durable construction ensures reliable operation in self-service environments while supporting multiple barcode formats for flexible payment and inventory management solutions. With easy integration and low power consumption, this scanner significantly enhances vending machine functionality and user experience.
Highlights
Fast and accurate 1D/2D and QR code scanning for vending applications
High-speed decoding with motion tolerance ensures smooth operation
≥5mil precision and 20% minimum reflectance for reliable performance
Wide field of view supports flexible barcode reading angles
Durable and compact design optimized for embedded systems
Specification
|
Acquisition Performance |
|
|
Sensor |
Image Type,CMOS Sensor |
|
Acquisition Speed |
1/30 fps(E21W) 1/120fps(E21W1) |
|
FOV |
Diagonal 84°,Level 72°,Vertical 54° |
|
Reading Performance |
|
|
Precision |
≥5mil |
|
Depth of Field |
Symbologies |
|
Code 128 10mil 18bytes (Paper) |
|
|
Code 128 18bytes (Screen) |
|
|
QR 10mil 160bytes (Paper) |
|
|
DM 15mil 100bytes (Paper) |
|
|
QR 18bytes (Screen) |
|
|
Code 128 10mil 18bytes (Paper) |
|
|
Symbologies |
2D:QR Code, Data Matrix, PDF417,Han Xin Code,Dotcode,OCR,etc. |
|
1D:UPC-A, UPC-E, EAN-8, EAN-13, ISBN, Code 128, GS1 128, Standard 25, Codabar, MSI/MSI PLESSEY, GS1 |
|
|
Print Contrast |
20% minimum reflectance |
|
Environmental Parameter |
|
|
Operating Temperature |
-30℃ ~ 70℃ |
|
Storage Temperature |
-40℃ ~ 80℃ |
|
Humidity |
5% ~ 95% RH (non-condensing) |
|
Ambient Light |
Max.100,000 Lux |
|
Electrical Parameter |
|
|
Input Voltage |
3-3.6V or 3.6-16V |
|
Operating Current |
<190mA(3.3V Input),<150mA(5V Input) |
|
Standby Current |
< 5mA |

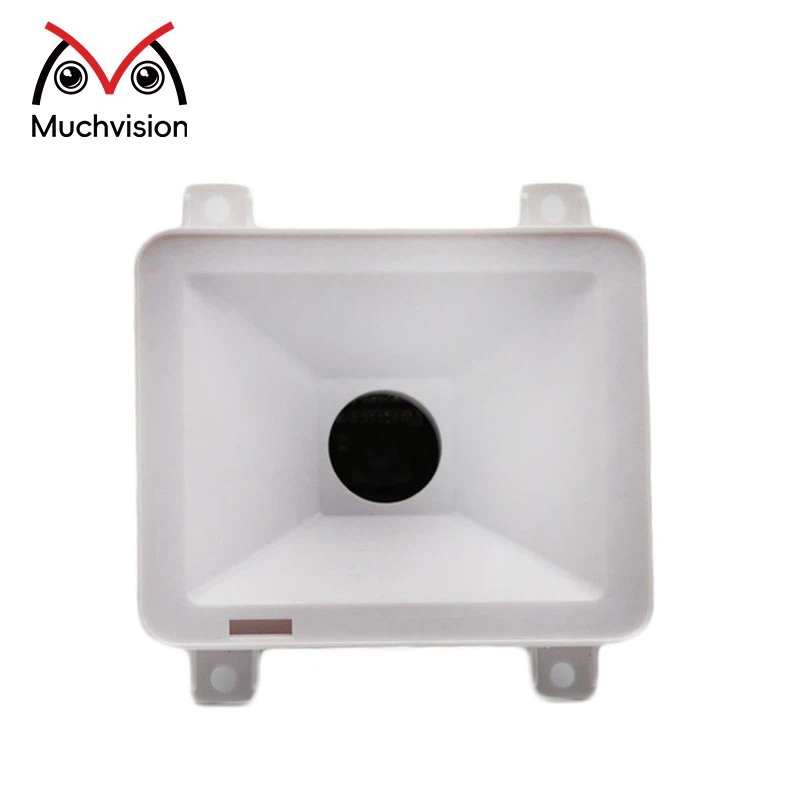

Product Picture
