8MP USB 2.0 Camera Module Compact Main parameters
|
Module Number |
XLS-GM1006-V2.0 |
Sensor |
1/2.8'' CMOS sensor |
|
Resolution |
4k 8mp |
Dimension |
Customizable |
|
Lens FOV |
116 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB |
Feature |
System compatibility |
Products Description
The 8MP USB 2.0 camera module uses a 1 2.8 CMOS sensor and provides clear 4K resolution images. It supports multiple platforms including Windows, Linux, Android, and Mac with plug and play functionality. The compact size makes it suitable for embedded systems and integration into various devices.
This camera module is widely used in industrial automation, barcode scanning, face recognition, medical imaging, and smart home devices. It delivers stable data transfer with USB 2.0 and ensures reliable performance. The fixed focus lens provides a wide field of view, making it a cost effective solution for different applications.
Key Features/Advantages
8MP high resolution with 4K image output
1 2.8 CMOS sensor for clear and detailed capture
USB 2.0 interface with stable data transfer
Plug and play compatibility with Windows Linux Android Mac
Compact design for easy integration into devices

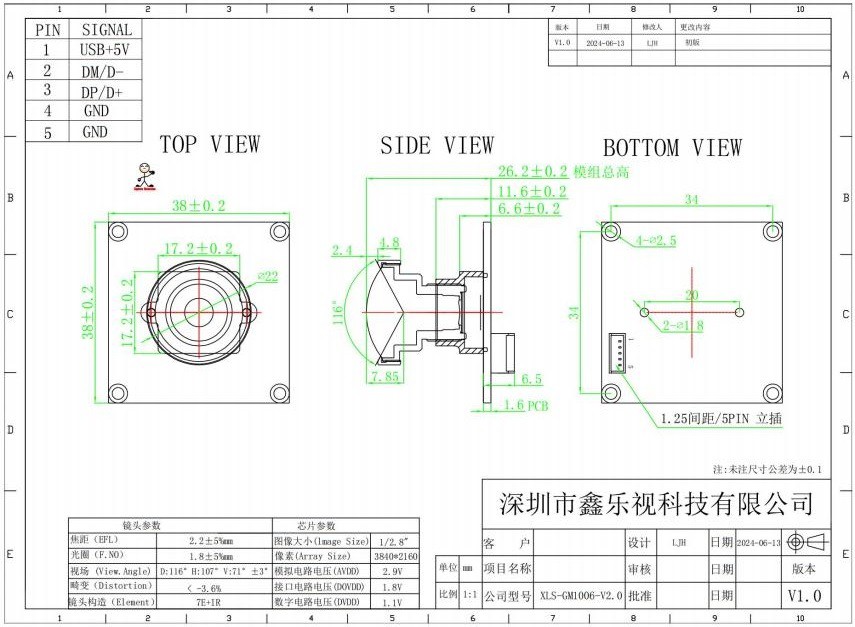

Product structure
Specification
|
Signal |
XLS-GM1006-V2.0 |
REMARKS |
||||
|
Image Sensor Size |
1/2.8"inch |
|||||
|
Effective Pixels |
3864H*2228V |
|||||
|
Pixel size |
1.45 um*1.45 um |
|||||
|
Optical distortion |
<-3.6% |
|||||
|
Image sensor Data output |
Raw Bayer 10bits |
|||||
|
Video output |
MPJG/YUV |
|||||
|
Maximum Frame Rates |
3840*2160 2048*1536 1920*1080 1280*720 640*480 |
30FPS 30FPS 30FPS 30FPS 30FPS |
2592*1944 1600*1200 1280*960 800*600 320*240 |
30FPS 30FPS 30FPS 30FPS 30FPS |
||
|
SNR max |
TBD |
|||||
|
Dynamic range |
TBD |
|||||
|
Min. Illumination |
TBD |
|||||
|
Digital interface |
5pin 1.25mm USB2.0 |
Cable length 1.5 m |
||||
|
Transfer rates |
480MB/S |
|||||
|
Power requirements |
5V±5% |
|||||
|
Storage temperature |
-20℃to70℃ |
|||||
|
operating temperature |
-10℃to60℃ |
|||||
|
Power Consumption |
NO LED |
TBD |
||||
|
IR-LED |
TBD |
|||||
|
PCB printig ink |
black |
|||||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|||||
|
Lens view |
M12*P0.5 |
LENS |
||||
|
Lens Construction |
7E+IR |
|||||
|
F/NO |
1.8±5% |
|||||
|
EFL |
2.2 mm±5% |
|||||
|
FOV |
116 ° ±3 ° |
|||||
|
Focusing method |
Fixed focus |
|||||
|
Shooting distance |
60cm-. |
|||||

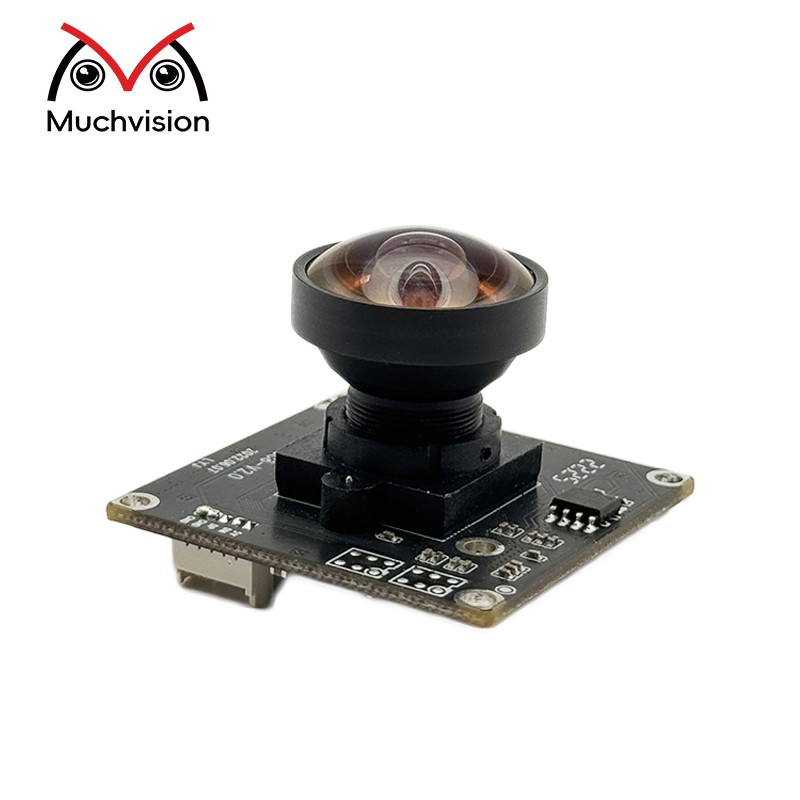

Product Picture
Application areas of camera modules
1. Barcode scanning: Used for barcode scanning in industrial automation to improve logistics and warehousing efficiency
2. Document scanner: Used for document scanning to digitize paper documents for easy storage and retrieval
3. Face recognition system: Used in face recognition systems to provide high definition images and enhance recognition accuracy
