Compact 1080P HD 2MP Camera Module HM2160
|
Module Number |
SNS-USB2160-V1.0 |
Sensor |
1/6" Himax HM2160 |
|
Resolution |
2MP (1920*1080) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
FHD |
Products Description

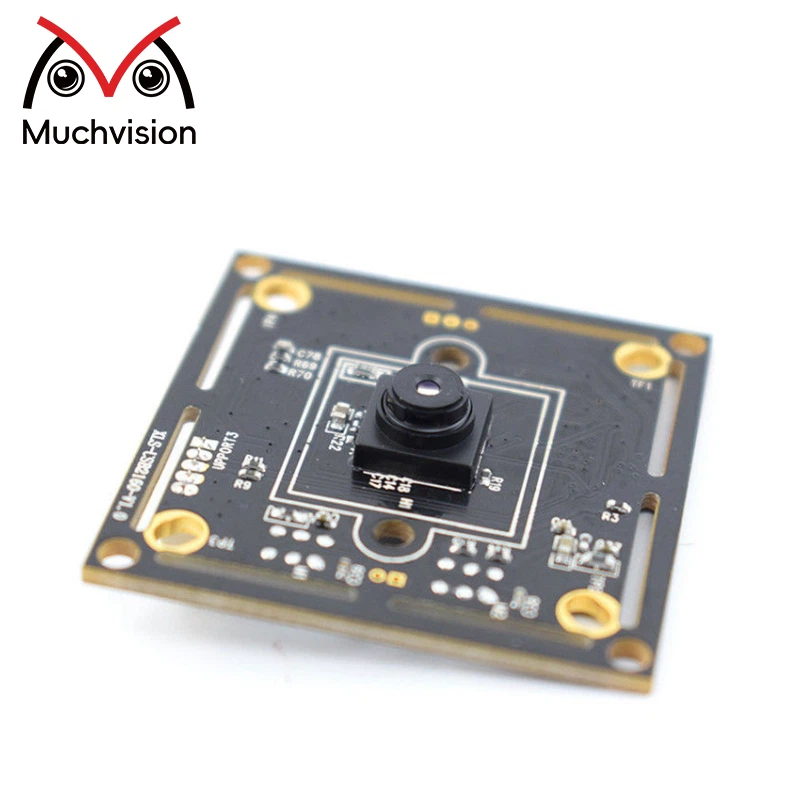

This 2MP USB camera module uses the Himax HM2160 sensor, an ultra-small 1/6-inch sensor. It may be small in size, but it packs a lot of punch, delivering 1080p (1920x1080) Full HD video at 60 frames per second. Another big plus is its extremely low power consumption, requiring less than 130mW even at the highest frame rate.
Thanks to its tiny sensor and fixed-focus design, the HM2160 compact camera module can be customized to fit into extremely small spaces, making it ideal for wearables, compact IoT devices, and drones. The sensor also uses UltraSense BSI pixel technology, which is highly sensitive to light, helping it capture clearer images. And it easily connects to other devices via a simple USB 2.0 interface.
Highlights
1080P Full HD at 60FPS: Smooth video performance for fast-moving subjects.
Ultra-Compact Size: Small 1/6-inch sensor fits into tight spaces.
Ultra-Low Power Consumption: Conserves energy for battery-powered devices.
High Sensitivity: Captures clear images even in low-light environments.
Fixed Focus Lens: Reliable and maintenance-free setup.
Customizable FOV and Size: Adapts to various device requirements.
Product Structure
Specification
|
Pixel Size |
1.4μm x 1.4μm |
|
Effective Pixels |
HD 1936(H)X1096(V) |
|
Image Sensor |
1/6" |
|
AEC/AWB/AGC |
Supported |
|
Lens View |
FOV90°(Optional),F/N(Optional) |
|
Interface |
USB BUS POWER 5P-1.25mm |
|
Operating Voltage |
DC5V |
|
Working Current |
120mA~220mA |
|
Dimension |
32*32mm |
|
Cable Length |
1m/1.5m |
