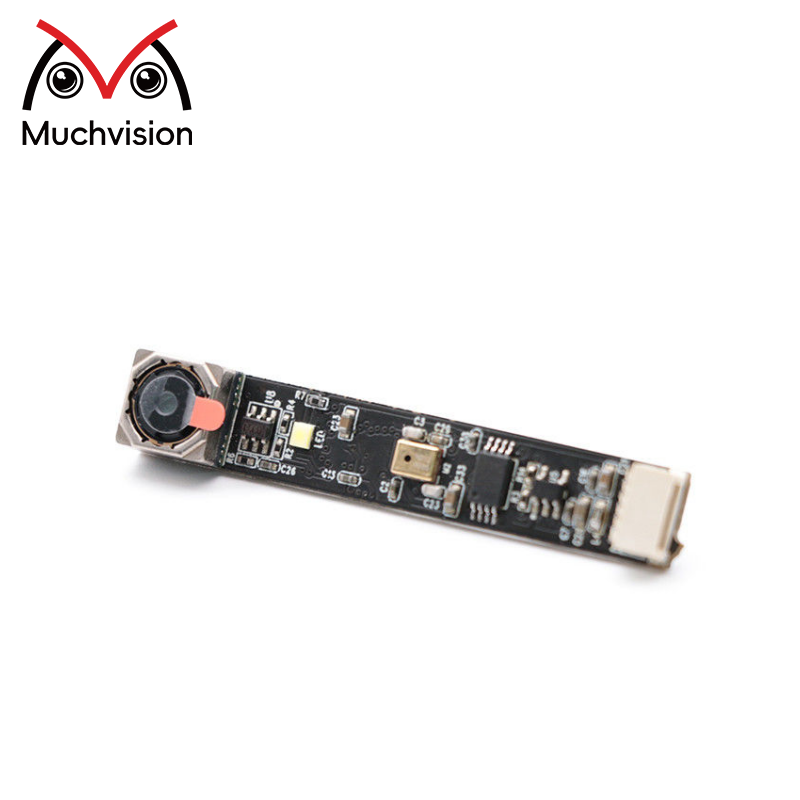

SONY IMX179 8mp USB Camera Module Auto Focus
|
Module Number |
SNS-PC708M-V1 |
Sensor |
1/3.2" SONY IMX179 |
|
Resolution |
8MP 3264(H) X 2448(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Auto Focus |
|
Interface |
USB2.0 |
Feature |
Tiny Size,Microphone And LED |
Products Description
The SONY IMX179 8MP USB Camera Module (SNS-PC708M-V1) is designed for space-limited applications that demand high image quality and functional integration. Measuring just 50x8.5mm, this mini bar-type module integrates autofocus, a microphone, and an LED indicator, offering an all-in-one solution for compact devices.
Powered by the SONY IMX179 CMOS sensor, it captures 8MP (3264x2448) images at 15FPS or 1080P video at 30FPS in MJPEG format, ensuring clear and stable output. Its unique design places the lens at one end of the PCB, making it compatible with special enclosures and embedded structures.
This camera module is suitable for applications such as video conferencing devices, smart terminals, portable instruments, access control systems, and customized embedded projects. With full customization options in size, lens, and features, it provides developers with a flexible solution for next-generation imaging products.
Highlights
Ultra-small bar design: Only 50x8.5mm, perfect for narrow and compact spaces.
8MP Autofocus: SONY IMX179 sensor delivers sharp, high-resolution images.
Integrated microphone & LED: Adds audio input and status indication.
Flexible performance: 8MP@15FPS (MJPEG) or 1080P@30FPS video output.
Customizable: Adaptable in size, shape, and functionality to meet project requirements.
Product Structure
Specification
|
Model No |
SNS-PC708M-V1 |
|
|
|
Image Sensor |
IMX179 |
|
|
|
Image Sensor Size |
1/3.2"CMOS |
|
|
|
Effective Pixels |
3264*2448 |
|
|
|
Pixel size |
1.4umX1.4um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG / YUY2 |
|
|
|
Maximum Frame Rates |
3264x2448 @15FPS 2592 x1944 @ 15fps 1920x1080S @30fps 1280x720 @ 30fps 800x600 @ 30fps 640x480 @30fps |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
USB BUS POWER 5P-1.0mm |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 1.5W |
|
|
IR-LED |
|
|
|
|
LED IR-850( |
NO |
LED |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M6.5 |
LENS |
|
|
Lens Construction |
5P+IR |
|
|
|
F/NO |
2.2 |
|
|
|
EFL |
3.5mm |
|
|
|
FOV |
D:80°±3° |
|
|
|
Micro shooting distance |
AF 10cm-infinity |
|
|
|
MIC |
support MIC |
|
|
