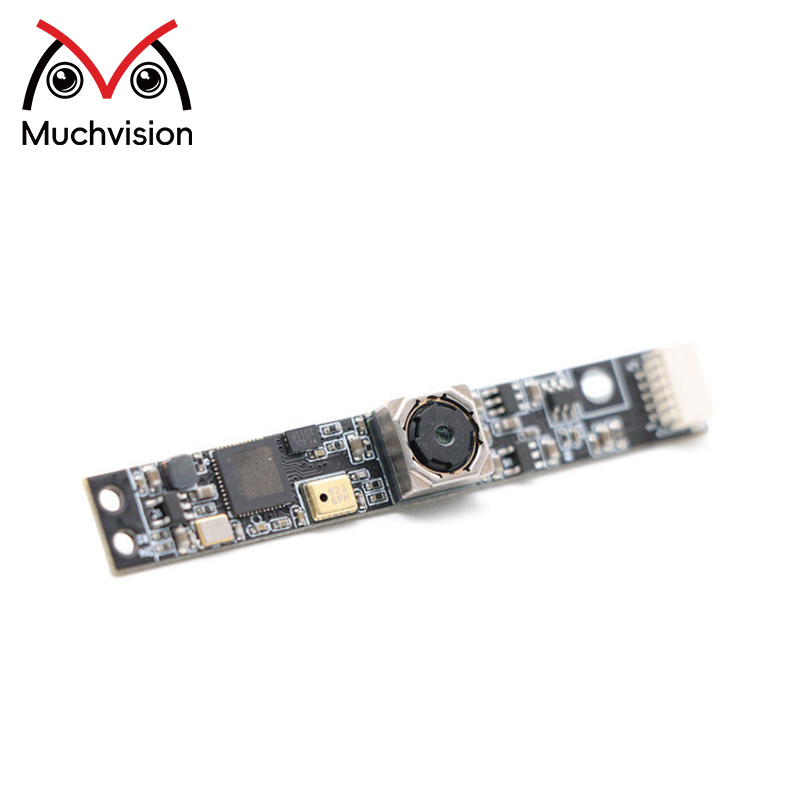

Strip Shape 8MP Microphone Camera Module USB2.0
|
Module Number |
SNS-PC688M-V1.0 |
Sensor |
1/3.2" SONY IMX179 |
|
Resolution |
8MP 3264(H) X 2448(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Auto Focus |
|
Interface |
USB2.0 |
Feature |
4K,Raspberry Pi |
Products Description
The 8MP IMX179 USB camera module offers high-resolution imaging in a uniquely ultra-thin strip design (62x9mm), ideal for space-constrained devices. Equipped with autofocus, it ensures sharp images for both still photos and video streaming.
This module outputs 8MP images (3264x2448) at 15FPS or 1080P HD video at 30FPS in MJPEG format. Its built-in microphone adds audio capture capability, making it a complete visual-audio solution. The USB2.0 interface allows plug-and-play operation, supporting Windows, Mac, Linux, Android, and Raspberry Pi platforms.
Its compact form factor makes it perfect for embedded applications such as laptops, advertising all-in-one machines, self-service kiosks, smart doorbells, video access control, and Raspberry Pi projects. The module is customizable in size and lens, providing flexibility for various project requirements.
Highlights
Ultra-thin strip design: 62x9mm compact size fits narrow spaces.
8MP autofocus imaging: Clear, high-resolution photos with SONY IMX179 sensor.
Raspberry Pi compatible: Ideal for embedded development and custom projects.
Flexible video resolution: 8MP@15FPS or 1080P@30FPS MJPEG video output.
Built-in microphone: Integrated audio capture for complete multimedia applications.
Specification
|
Model No |
XLS-PC688M-V1 |
|
|
|
Image Sensor |
IMX179 |
|
|
|
Image Sensor Size |
1/3.2"CMOS |
|
|
|
Effective Pixels |
3264*2448 |
|
|
|
Pixel size |
1.4umX1.4um |
|
|
|
Optical distortion |
≤0.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG / YUY2 |
|
|
|
Maximum Frame Rates |
3264x2448 @15FPS 2592 x1944 @ 15fps 1920x1080S @30fps 1280x720 @ 30fps 800x600 @ 30fps 640x480 @30fps |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
≥0.01LUX at F1.2 |
NO LED |
|
|
Digital interface |
USB BUS POWER 5P-1.0mm |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
Max 1.5W |
|
|
IR-LED |
|
|
|
|
LED IR-850( |
NO |
LED |
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M6.5 |
LENS |
|
|
Lens Construction |
5P+IR |
|
|
|
F/NO |
2.2 |
|
|
|
EFL |
3.5mm |
|
|
|
FOV |
D:78°±3° |
|
|
|
Micro shooting distance |
AF 10cm-infinity |
|
|
|
MIC |
support MIC |
|
|
