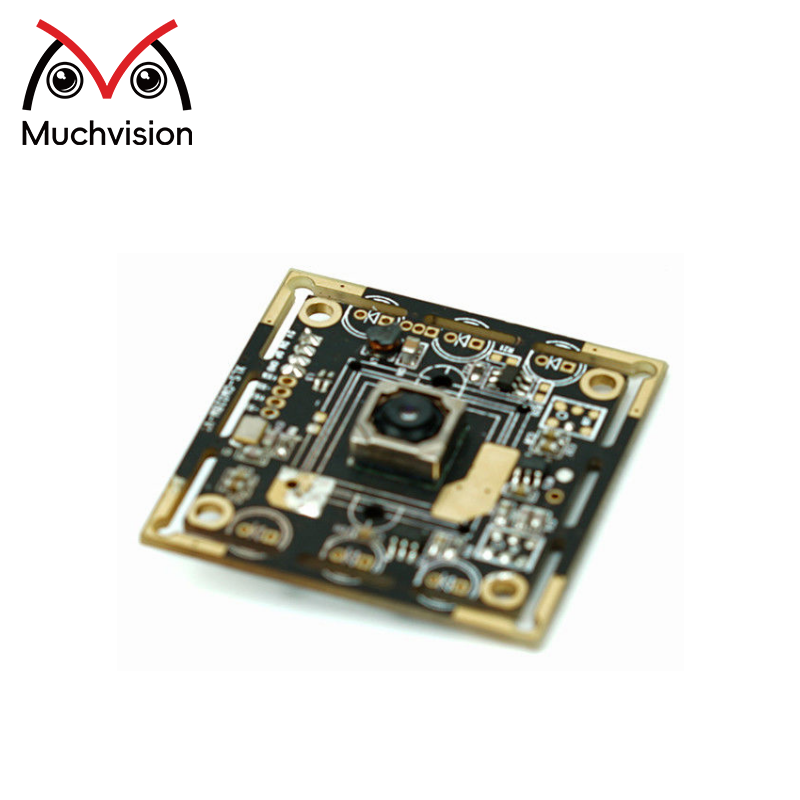

Sony IMX179 USB3.0 4k Camera Module Auto Focus
|
Module Number |
SNS-GM028M-V1.0 |
Sensor |
1/3.2" IMX179 |
|
Resolution |
8MP 3264(H) X 2448(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Auto Focus |
|
Interface |
USB3.0 |
Feature |
Ultra HD |
Products Description
The Sony IMX179 USB3.0 camera module offers 8MP Ultra HD resolution with excellent clarity and fast autofocus. It supports image capture at 3264x2448 resolution and smooth 1080p video at 30fps, fully utilizing the bandwidth advantages of USB3.0 for high-speed data transmission.
This module is designed with a compact 38x38mm size (compatible with 32x32mm) and includes a built-in microphone for added integration convenience. Its autofocus function ensures sharp and clear images without manual adjustment, making it user-friendly for different scenarios.
With reliable image quality, high-speed performance, and customizable design options, the IMX179 camera module is suitable for video conferencing, industrial inspection, smart devices, and other embedded vision applications.
Highlights
8MP Ultra HD: Captures images at 3264x2448 resolution
USB3.0 Interface: High-speed data transfer with smooth performance
SONY IMX179 Sensor: Delivers stable, high-quality imaging
Autofocus Function: Clear focus with simple operation
Compact Design: 38x38mm module with built-in microphone and customization options
Product Structure
Specification
|
Model No |
SNS-GM028M-V1.0 |
|
Sensor |
1/3.2'' IMX179 |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Compression format |
MJPG / YUY2 |
|
Resolution |
see above |
|
Frame rate |
see above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Auto/Fixed focus |
|
S/N ratio |
36dB |
|
Dynamic range |
60dB |
|
Interface type |
USB 3.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6mm |
|
Lens Size: 1/3 inch |
|
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Support |
|
microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 200mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Not Supported |
|
Dimension |
38MM x 38MM (32MM x 32MM) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
