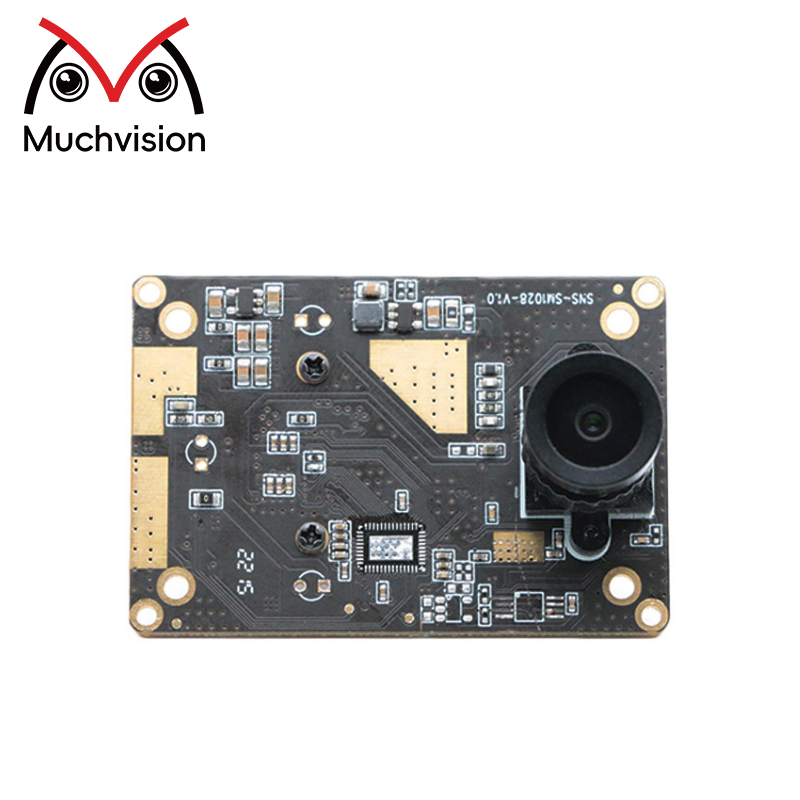

OV2735 USB Binocular Camera Module Color 1080p
|
Module Number |
SNS-SM1028-V1.0 |
Sensor |
1/2.7" OV2735 |
|
Resolution |
2MP 1920(H) X 1080(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Dual Lens |
Products Description
This high-performance USB 2.0 stereo camera module is equipped with two OmniVision 1/2.7-inch OV2735 CMOS image sensors, offering 2MP (1920x1080) full HD resolution. It is specifically designed for applications requiring high image quality, low power consumption, and adaptability to complex lighting conditions, making it ideal for dashcams, IP cameras, and various scenarios requiring reliable stereo vision solutions.
This module utilizes two high-performance OmniVision OV2735 sensors, capable of capturing images at 1080p full HD resolution (1920x1080). Its dual-lens design provides multi-angle or stereoscopic visual information, suitable for depth sensing or broader field-of-view requirements. The sensors' pixel size ensures image detail and clarity.
The OV2735 sensor supports advanced HDR+LTM (High Dynamic Range + Local Tone Mapping) technology, effectively capturing details in both bright and dark areas of a scene, even in complex environments with significant light differences, to avoid overexposure or underexposure, thereby providing more balanced and clearer images.
Additionally, the sensor features high sensitivity and infrared light detection capabilities, enabling it to maintain stable image quality in low-light environments, making it ideal for all-weather or nighttime applications.
Highlights
Dual OV2735 sensors: 2MP Full HD resolution per sensor.
HDR+LTM support: Captures high-contrast scenes with balanced exposure.
High frame rate: 1080P@60FPS linear, 1080P@30FPS HDR+LTM.
Low-light & IR sensitivity: Stable imaging in challenging environments.
USB 2.0 interface: Easy integration for various applications.
Specification
|
Parameter |
Typical Value |
|
SENSOR |
1/2.7" OV2735 |
|
Active array size |
1928(H) x 1088(V) |
|
Pixel size |
3.0um (H) x 3.0um (V) |
|
Shutter type |
Electronic rolling shutter (ERS) |
|
Optical format |
1/2.7-inch |
|
Lens chief ray angle |
17 degree |
|
ADC |
10-bit |
|
Sensitivity |
5800 mV/Lux-sec |
|
SNRmax |
TdB |
|
Dynamic range |
TdB |
|
Scan mode |
Progressive scan |
|
Input clock |
Max 50MHz |
|
Pixel clock |
Max 148.5MHz |
|
Max. frame rate |
1080p: 1920x1080 Linear@ 60fps 1080p: 1920x1080 HDR+LTM @30fps |
|
Supply voltage |
Analog: 3.3 V Digital: 1.2 V I/O: 1.8V / 3.3V |
|
Power consumption |
75mW@1080p30 (MIPI) 54.5mW@1080p30 (DVP w/o I/O) 124mW@HDR-LTM1080p30 (MIPI) 107mW@HDR-LTM 1080p30 (DVP w/o I/O) |
|
Operating temperature |
0～60℃ |
