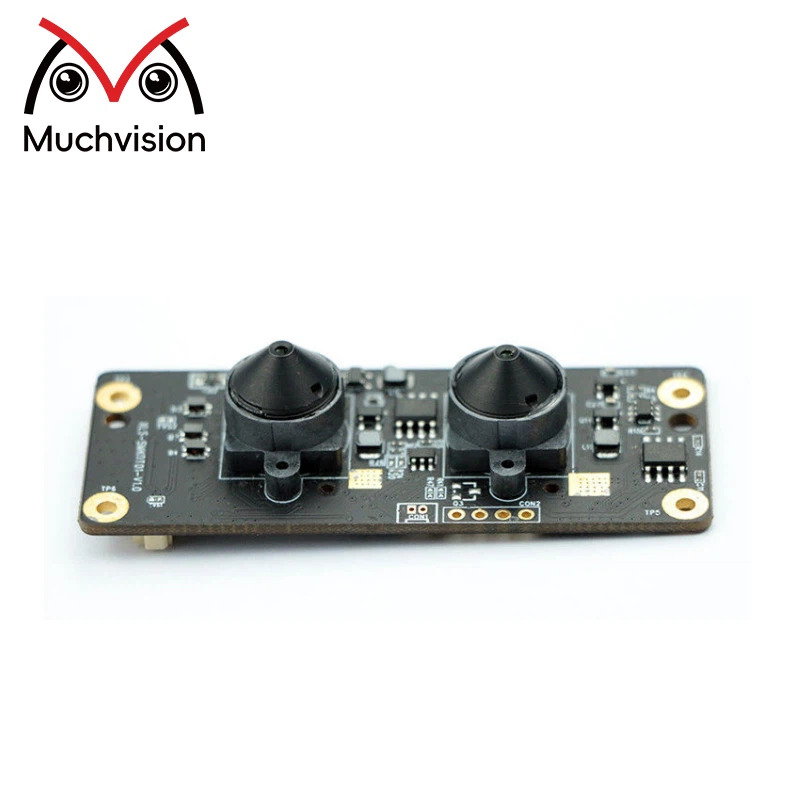

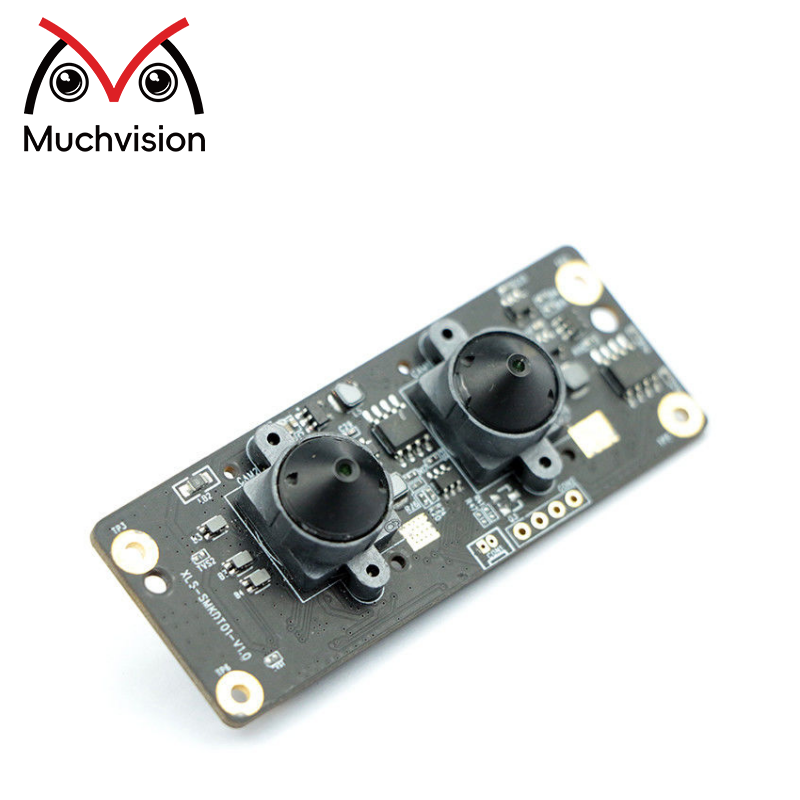

Dual Lens 5MP Usb Omnivision OV5640 Camera Module
|
Module Number |
SNS-5MP-DualOV5640 |
Sensor |
1/4" Omnivision OV5640 |
|
Resolution |
5MP 2592(H) X 1944(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Dual Lens |
Products Description
The Dual Lens 5MP USB OmniVision OV5640 Camera Module is designed for advanced stereo vision and 3D imaging applications. Equipped with two high performance 1/4 inch OmniVision OV5640 CMOS sensors, it captures crystal clear images at a resolution of 2592 x 1944 pixels. Each 5MP sensor provides sharp and detailed imaging, making it suitable for demanding computer vision projects.
This dual lens USB camera module is ideal for applications that require depth perception and 3D reconstruction, such as robotics, virtual reality, gesture recognition, and 3D scanning. The fixed focus lenses and optional 65° or 85° field of view allow flexible use in various scenarios.
Featuring a USB 2.0 interface and UVC compliance, the camera module offers plug and play functionality across multiple operating systems including Windows, Linux, macOS, and Android. It supports common video formats like MJPG and YUY2, ensuring easy integration with computer vision software.
The compact and customizable design, combined with low power consumption, makes this OV5640 USB camera module a reliable solution for engineers, researchers, and product developers looking to integrate stereo vision into their systems.
Highlights
Dual OmniVision OV5640 5MP CMOS sensors for high resolution imaging
Stereo vision and 3D imaging capability for robotics and VR
Fixed focus dual lens with optional 65° or 85° FOV
USB 2.0 interface UVC compliant plug and play without drivers
Cross platform support Windows Linux macOS and Android
Specification
|
Model No |
SNS-5MP-DualOV5640 |
|
Sensor |
1/4'' Omnivision OV5640 CMOS |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592(H) x 1944(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Image area |
3673.6μm x 2738.4μm |
|
Compression format |
MJPG/YUY2 |
|
Resolution |
See above |
|
Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
36dB |
|
Dynamic range |
68dB |
|
Sensitivity |
600mV / lux-sec |
|
Interface type |
USB2.0 |
|
Lens FOV |
65° |
|
Microphone |
Built-in |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, <300mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Not Supported |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
65MM x 42MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
