8MP UHD Mini Endoscope AF Camera Module IMX179
|
Module Number |
SNS-8MP-EDS-IMX179-V1.0 |
Sensor |
1/3.2" SONY IMX179 Sensor |
|
Resolution |
8MP (3264*2448) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Auto Focus |
|
Interface |
USB2.0 |
Feature |
Endoscope Camera Module |
Products Description

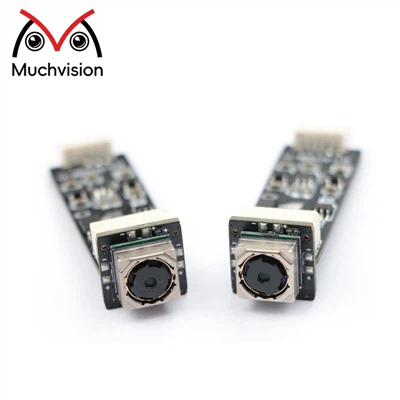

This USB camera module features a 1/3.2-inch SONY IMX179 CMOS sensor, delivering 8MP (3264x2448) ultra-high-definition video.
It provides fast autofocus for precise focusing on targets at varying distances, enhancing usability in medical and industrial inspections.
The module's ultra-compact two-stage PCB design (35.5mm x 12.5mm) allows integration into space-constrained environments.
Optional LED fill lights support clear imaging in low-light conditions, making it ideal for endoscopy, robotics, and AR/VR applications.
Highlights
SONY IMX179 CMOS image sensor
8MP (3264x2448) UHD ultra-high-definition resolution
Fast autofocus function for precise focusing
Ultra-compact two-stage design: 35.5MM x 12.5MM
Optional LED fill light for low-light imaging
Specification
|
Model No |
SNS-8MP-EDS-IMX179-V1.0 |
|
Sensor |
1/3.2'' SONY IMX179 Sensor |
|
Pixel |
8 Mega Pixel |
|
Most effective pixels |
3264(H) x 2448(V) |
|
Pixel Size |
1.4µm x 1.4µm |
|
Chroma |
RGB/Color |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed Focus |
|
S/N ratio |
36dB |
|
Dynamic range |
60dB |
|
Lens FOV |
120° |
|
Interface type |
USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Microphone |
Built-in |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 110mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
35.5MM x 12.5MM |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
