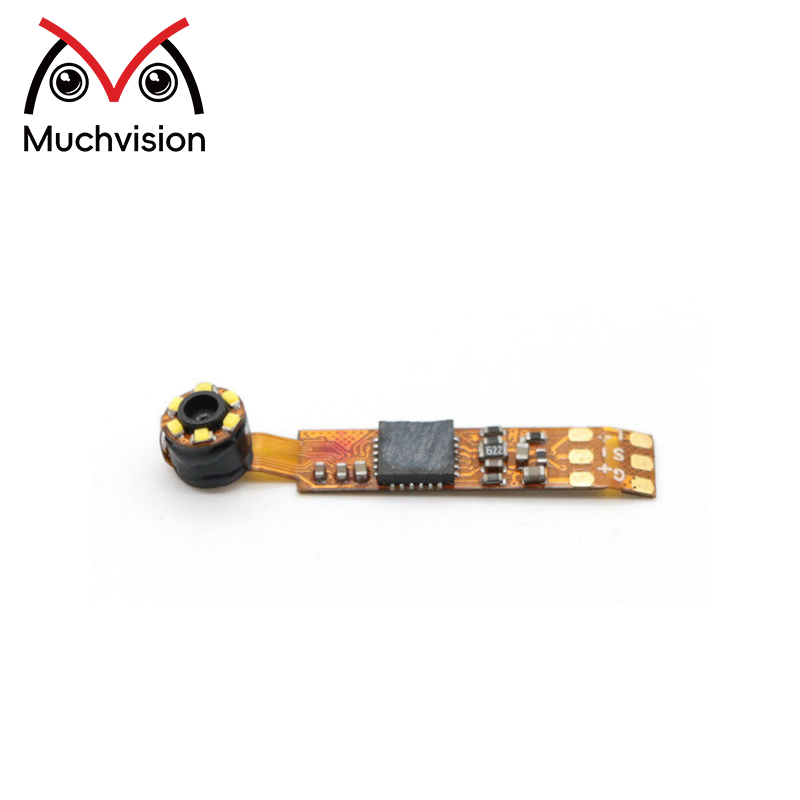

Tiny Camera Module GC0312 Flexible PCB 6LEDs
|
Module Number |
SNS-0.3MP-GC0312-E1 |
Sensor |
1/10" GalaxyCore GC0312 |
|
Resolution |
0.3MP 640(H) X 480(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Endoscope Camera Module |
Products Description
This USB camera module features a 1/10-inch GalaxyCore GC0312 CMOS sensor, delivering 0.3MP (640x480) VGA video at 30FPS.
Its flexible PCB (FPC) design and ultra-compact size allow easy integration into small or curved devices, such as visual otoscopes and micro-endoscopes.
The integrated 6 LED fill lights provide sufficient illumination in low-light environments, ensuring clear observation inside narrow spaces.
The GC0312 sensor uses a 4-transistor pixel structure with a pixel size of 2.25μm x 2.25μm, providing low-noise, stable image quality despite the miniature design.
Highlights
GalaxyCore 1/10" GC0312 CMOS image sensor
0.3MP (640x480) VGA resolution at 30FPS
Ultra-compact flexible PCB (FPC) design
Integrated 6 LED fill lights for low-light applications
Specification
|
Module No |
SNS-0.3MP-GC0312-E1 |
|
Pixel Size |
2.25μm x 2.25μm |
|
Effective Pixels |
0.3MP 640(H) x 480(V) |
|
Video output |
Raw Bayer10bit/8bit |
|
Active Array Size Video Rate |
30FPS |
|
Image Sensor |
1/10" |
|
Sensor Type |
GalaxyCore GC0312 |
|
Lens view |
FOV40°(optional),F/N(optional) |
|
TV Distortion |
<1% |
|
AEC |
Support |
|
AEB |
Support |
|
AGC |
Support |
|
Operating voltage |
AVDD:3.0~3.6V DOVDD:1.7~3.6V DVDD:1.7~1.9V |
|
Operating temperature |
-20～70℃ |
|
Storage temperature |
0～50℃ |
|
Dimensions |
Customizable |
