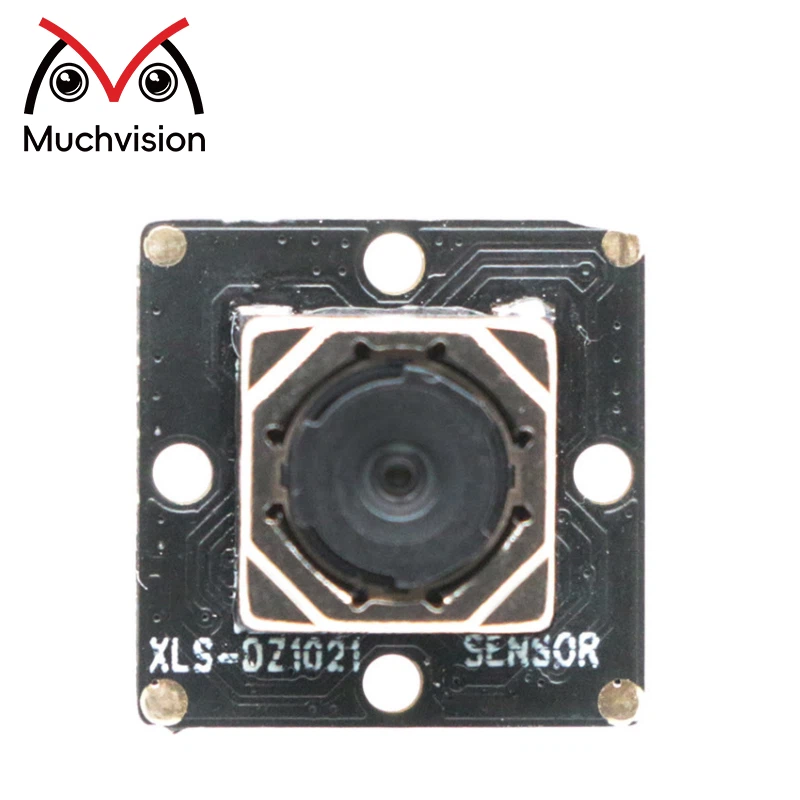

OV9281 1MP Usb Camera Module mini Endoscopic
|
Module Number |
SNS-DZ1021-V1.0 |
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Resolution |
1MP 1280(H) X 800(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Auto Focus |
|
Interface |
USB2.0 |
Feature |
Endoscopic Module |

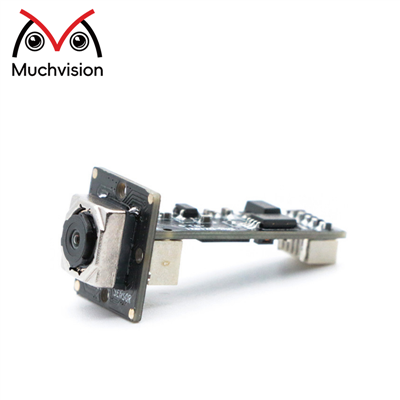

Products Description
This USB camera module features the Omnivision 1/4-inch OV9281 CMOS sensor, delivering 1MP high-definition video at 1280x800 resolution.
It uses a global shutter, exposing all pixels simultaneously to prevent motion distortion, ensuring accurate capture of fast-moving objects.
The module supports ultra-high frame rates: 1280x800 at 120FPS and 640x400 at 210FPS, ideal for rapid motion capture in medical diagnostics and industrial inspection.
Autofocus functionality ensures clear and stable images in dynamic environments, enhancing precision and reliability for endoscopic and inspection applications.
Compact and customizable, this module is compatible with USB 2.0 and supports plug-and-play operation across Windows, Linux, MacOS, and Android systems.
Highlights
Omnivision 1/4" OV9281 CMOS image sensor
1MP (1280x800) high-definition resolution
Global shutter eliminates motion artifacts
Ultra-high frame rate: 1280x800@120FPS, 640x400@210FPS
Specification
|
Model No |
SNS-DZ1021-V1.0 |
|
Sensor |
1/4" Omnivision OV9281 CMOS |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 800(V) |
|
Pixel Size |
3μm x 3μm |
|
Image area |
3896um(H) x 2453um (V) |
|
Compression format |
MJPG / YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global Shutter |
|
Chroma |
B&W, Monochrome |
|
Focus type |
auto focus |
|
S/N ratio |
TdB |
|
Dynamic range |
TdB |
|
Dark current |
80e-/sec |
|
Interface type |
High speed USB2.0 |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Support |
|
Auto White Balance |
Support |
|
Auto Gain Control |
Support |
|
Dimension |
Customizable |
|
Storage temperature |
0°C to 50°C |
|
Operating temperature |
-30°C to +85°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
