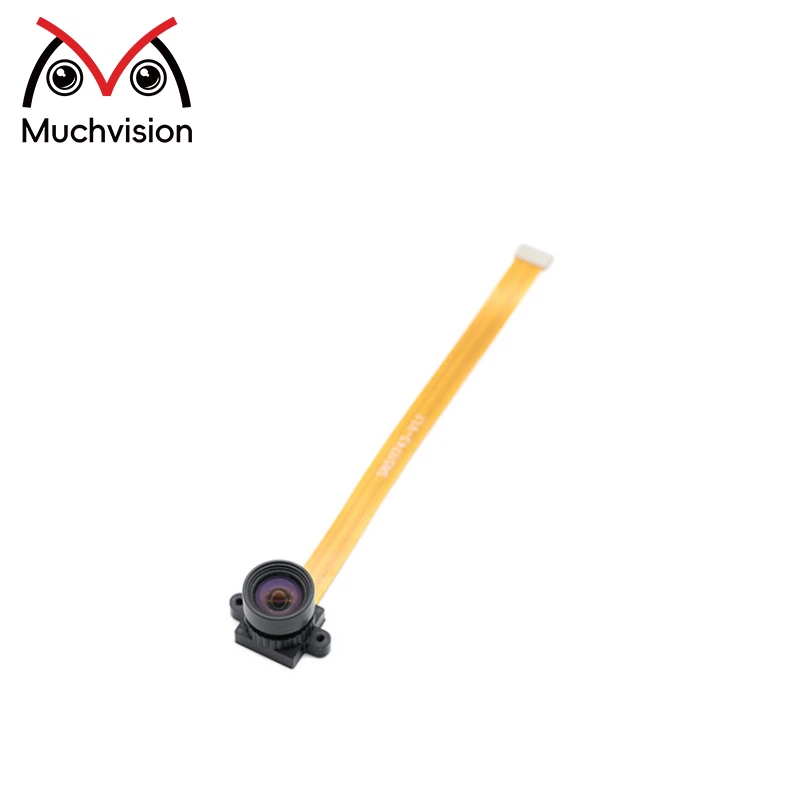

AR0144 Fixed Focus MIPI Camera Module 1280*720
|
Module Number |
SNS11743-V1.1 |
Sensor |
1/4-Inch 1.0 Mp CMOS AR0144 |
|
Resolution |
1MP 1280(H) X 800(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Global Shutter |
Products Description
The SNS11743-V1.1 is a MIPI camera module featuring a 1/4-inch ON Semiconductor AR0144 CMOS sensor, delivering 1MP (1280x800) high-definition color images.
Its global shutter technology exposes all pixels simultaneously, eliminating motion blur and jello effects caused by fast-moving objects or vibrations. Unlike rolling shutter sensors, this ensures accurate, distortion-free frames, even in high-speed scenes.
A key feature of this module is its color global shutter, which is rare among global shutter sensors. The module supports a stable 60FPS at 1MP resolution, ensuring smooth real-time image capture and transmission. With a wide industrial temperature range (-40°C to +105°C), it operates reliably in harsh environments, making it suitable for machine vision, robotics, and industrial automation applications.
Highlights
ON Semiconductor AR0144 global shutter sensor.
1MP (1280x800) high-definition color image.
Stable 60FPS @ 1MP full resolution (typical).
Unique color global shutter feature.
Industrial-grade wide temperature operation: -40°C to +105°C.
Specification
|
Model No |
SNS11743-V1.1 |
|
Sensor |
1/4-Inch 1.0 Mp CMOS AR0144 |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280H x 800V |
|
Pixel Size |
3.0µm x 3.0µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global shutter |
|
Focus type |
fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
63.9dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
mipi |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Dimension |
customizable |
|
Storage temperature |
–40°C to +85°C |
|
Operating temperature |
–40°C to +105°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
