OV9281 120fps NIR Camera Module 1280 x 800 Main parameters
|
Module Number |
SNS11595-V1.2 |
Sensor |
OV9281 |
|
Resolution |
1mp 720p |
Dimension |
Customizable |
|
Lens FOV |
147 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Global exposure |
Products Description
The SNS11595-V1.2 OV9281 camera module uses a 1MP 1280x800 global shutter sensor to capture high-speed 120fps video. Its near-infrared (NIR) optimized sensor delivers excellent quantum efficiency for low-light and monochrome imaging.
Designed for Raspberry Pi, the module supports all Pi models and features a Class V2 form factor compatible with the latest Pi software. Its fixed focus lens and high frame rate make it ideal for augmented reality (AR), virtual reality (VR), industrial automation, and applications requiring low latency and high resolution.
Perfect for astrophotography, microscopy, and traffic monitoring, this module provides reliable performance in specialized imaging scenarios.
Features
High-speed 120fps: Smooth and low-latency video capture
Near-infrared optimized sensor: Excellent NIR quantum efficiency
Global exposure OV9281 sensor: Uniform exposure across all pixels
Raspberry Pi compatible: Works with all Pi models and latest software

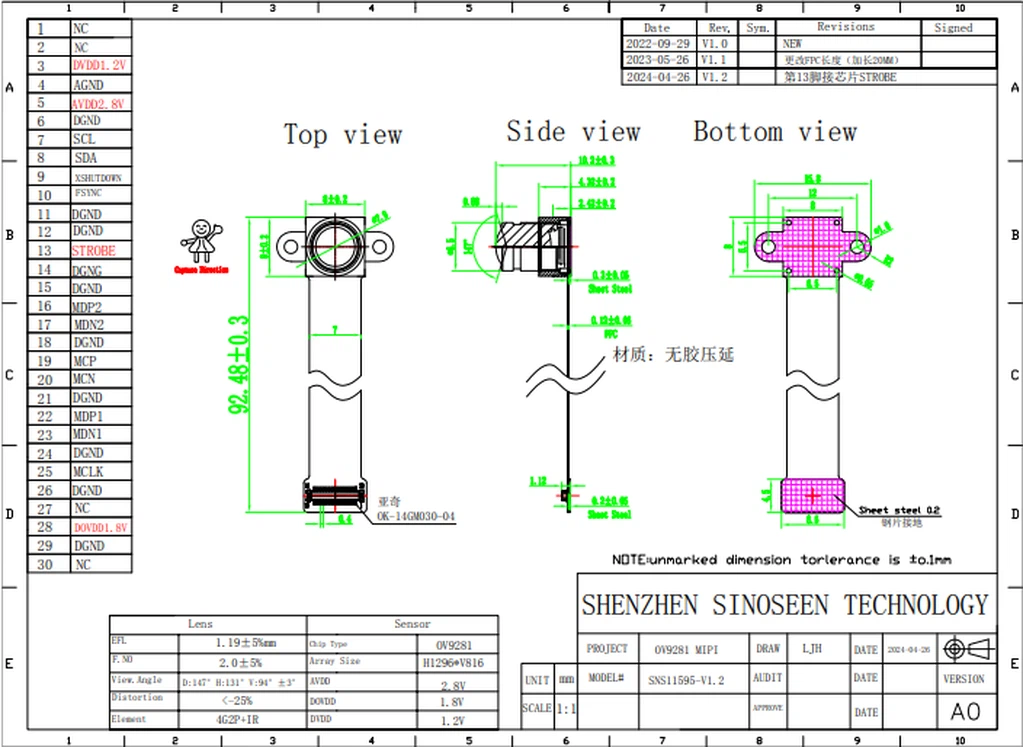

Product structure

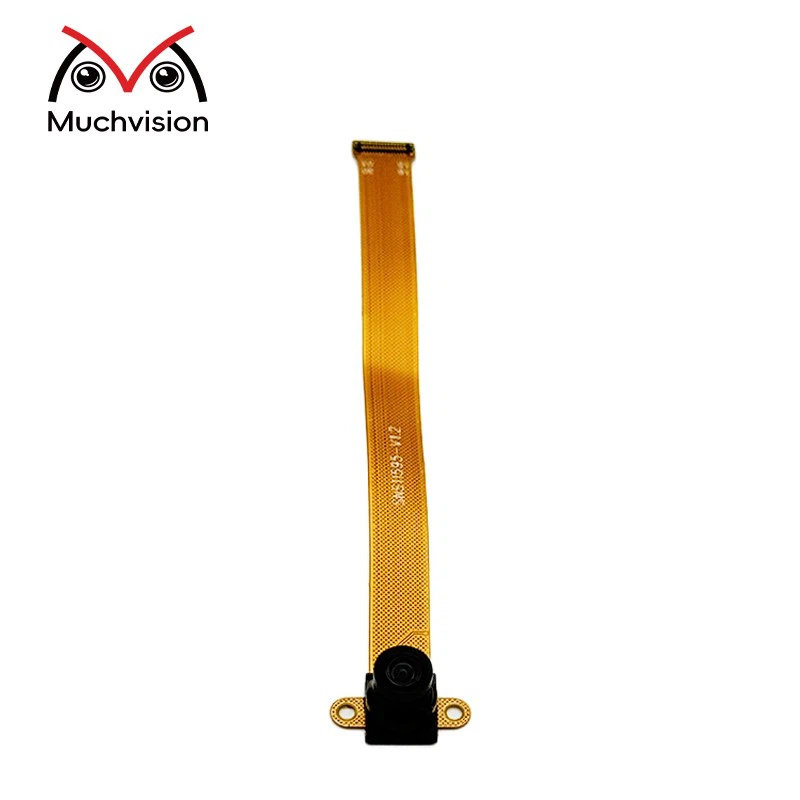

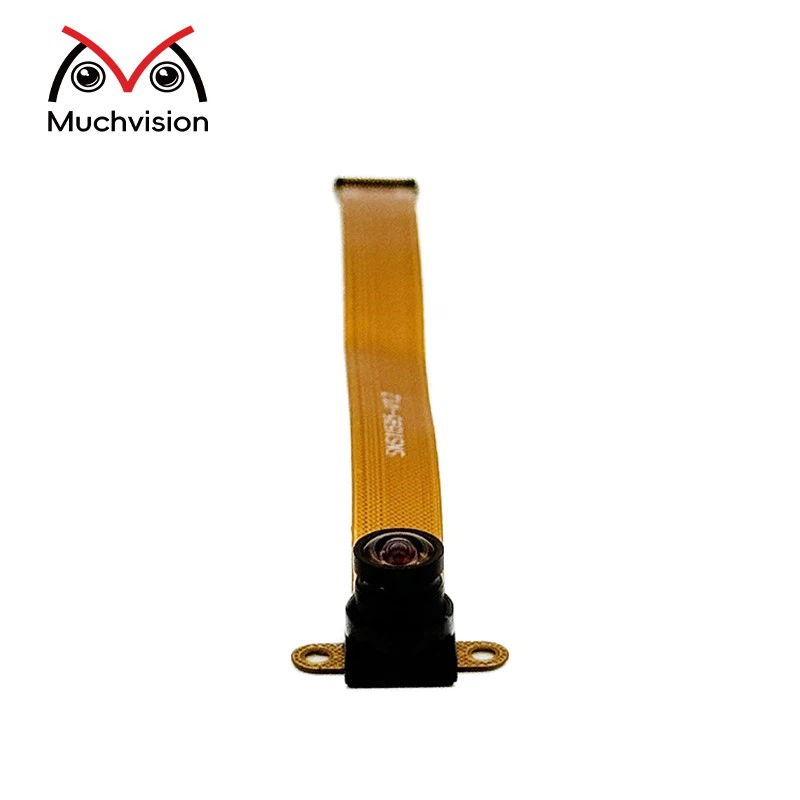

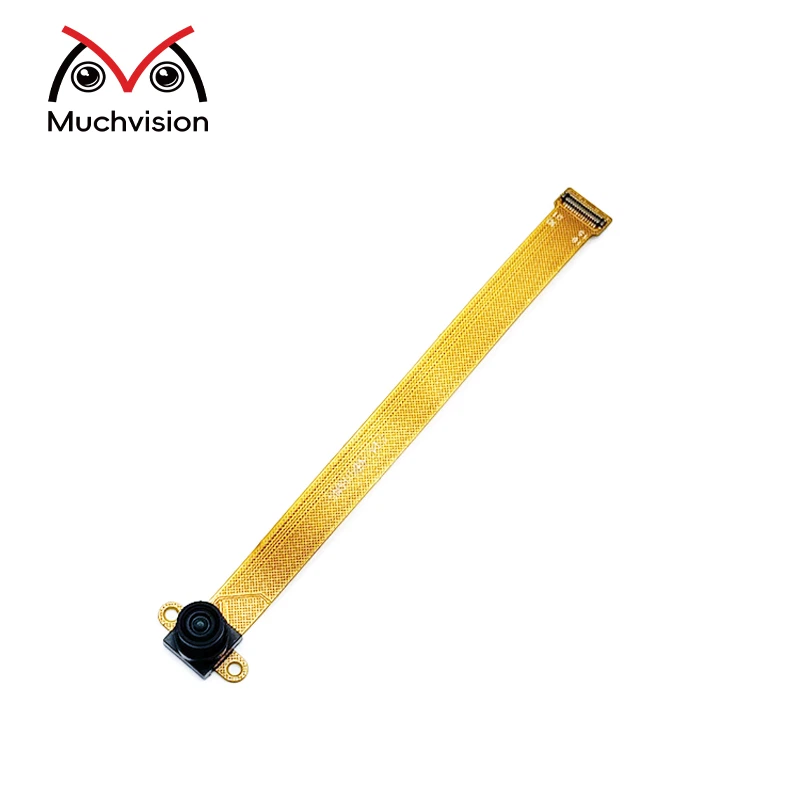

Product Picture
Application areas of camera modules
1. Astrophotography: Used in astrophotography to capture high definition images of starry skies and celestial bodies
2. Microscope camera: Integrated with a microscope to capture high definition images of the microscopic world for research and education
3. Traffic monitoring: Used for traffic monitoring, monitoring traffic flow and road safety, reducing traffic accidents
