OEM BF20A6 Camera Module 30W Main parameters
|
Module Number |
SNS-GM1102-V1.0 |
Sensor |
BF20A6 |
|
Resolution |
0.3mp |
Dimension |
Customizable |
|
Lens FOV |
56 (optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
plug and play |
Products Description
The core of the SNS-GM102-V1.0 module is a 1/10 inch CMOS image sensor with 640x480 effective pixels, each pixel size of 2.25um x 2.25um, ensuring the clarity of the image. Modules support a variety of resolutions, including 680x480@15fps, 320x240@15fps, and 160x120@15fps.
The hardware and underlying software of the SNS-GM102-V1.0 module support the adjustment of exposure time, color difference, brightness, contrast and saturation, which enhances the post-processing ability of the image. CMOS progressive scanning technology ensures the image without compression and interpolation, and improves the authenticity and clarity of the image.
Feature
High-Resolution Imaging: 640x480 pixels for clear and accurate images.
Fixed-Focus Lens: 56° FOV lens suitable for general monitoring and inspection.
Plug-and-Play USB 2.0 Interface: Fast, driver-free installation with 480MB/s transfer rate.
Adjustable Image Parameters: Supports exposure, brightness, contrast, saturation, and color adjustment.

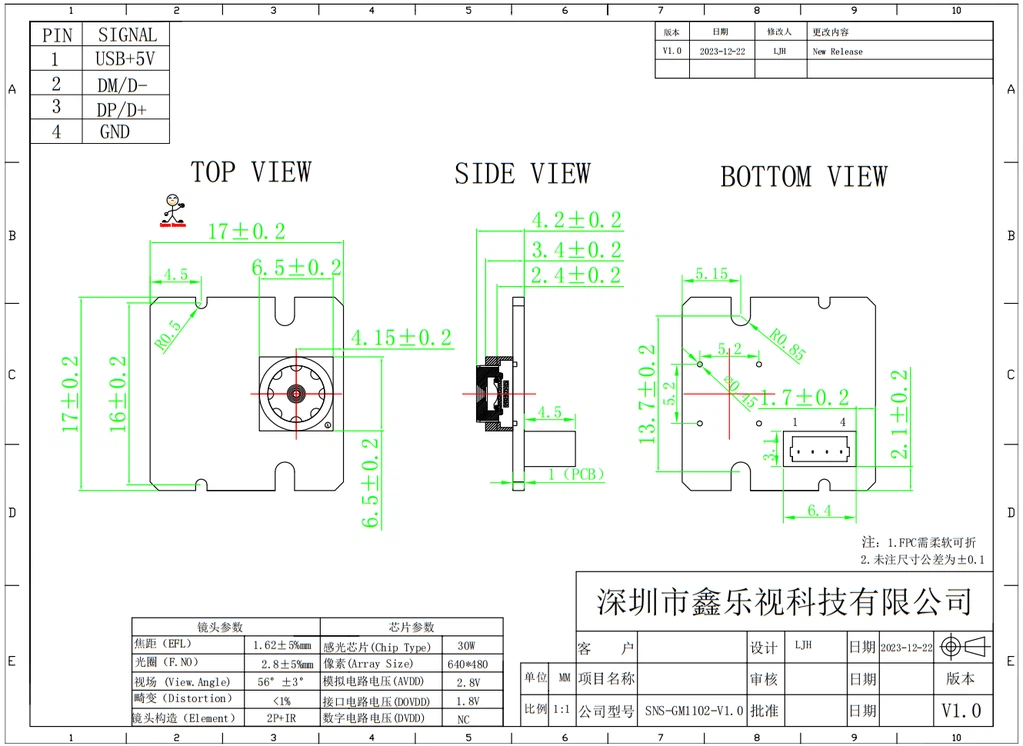

Product structure
Specification
|
Signal |
SNS-GM1102-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/10"CMOS |
||
|
Effective Pixels |
640*480 |
|
|
|
Pixel size |
2.25um*2.25um |
|
|
|
Optical distortion |
≤15.5% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
680*480 15FPS 320x240 15FPS 160*120 15FPS |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
D |
|
|
Digital interface( |
4pin 1.0mm USB2.0 |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-10℃to60℃ |
|
|
|
operating temperature |
-30℃to80℃ |
|
|
|
Power Consumption |
NO LED |
NC |
|
|
IR-LED |
NC |
|
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M5*P0.35 |
LENS |
|
|
Lens Construction |
2P+IR |
|
|
|
F/NO |
2.8 |
|
|
|
EFL |
1.62 mm |
|
|
|
FOV |
56°±3° |
|
|
|
Module shooting distance |
60cm-Infinity |
|
|

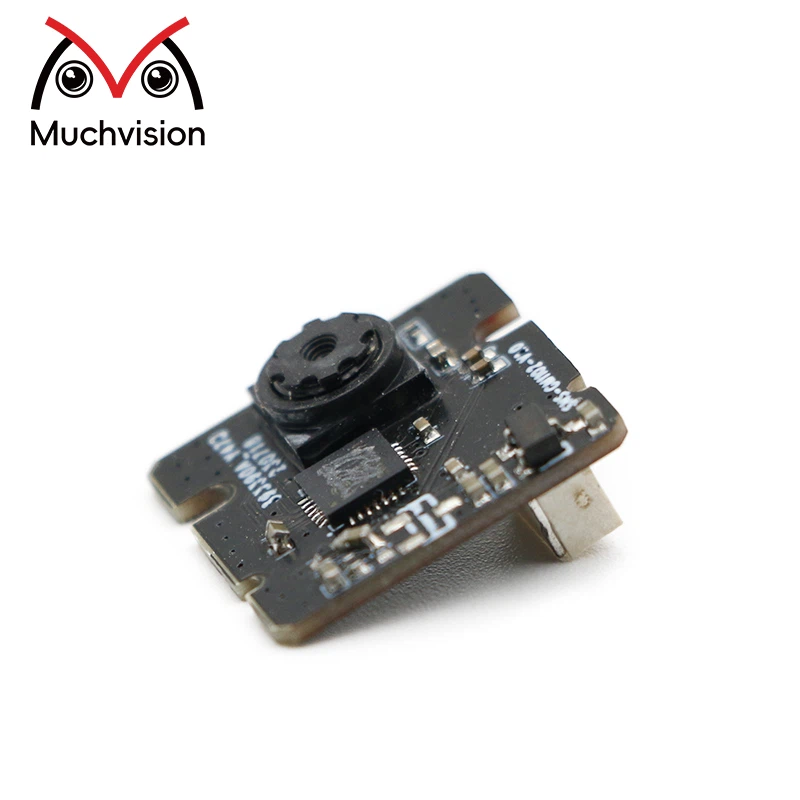

Product Picture
Application areas of camera modules
1. Geological exploration camera: Used for geological exploration to capture images of geological structures and assist geological research
2. Machine Vision inspection: The Global Exposure camera module is suitable for machine vision inspection, capturing fast moving objects without motion artifacts
3. Industrial Camera modules: For industrial camera modules, providing high definition and wide dynamic range to adapt to different lighting conditions
