Oem vb1904 usb 30fps camera module Main parameters
|
Module Number |
SNS-GM1133-V1.0 |
Sensor |
VB1940 |
|
Resolution |
5mp |
Dimension |
Customizable |
|
Lens FOV |
82 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Drive Free |
Products Description
The 5MP USB camera module features a 1/2.8 inch VB1940 CMOS sensor with 2592x1944 effective pixels. It captures detailed and clear images even in low-light conditions.
It supports high frame rates of 30FPS at 2592x1944 and 1920x1080 resolutions. The module outputs data via USB 2.0 for fast and stable transfer.
Static images can be captured in JPG or BMP formats, and video in AVI or MP4 formats. Exposure, brightness, contrast, saturation, and color balance are adjustable.
This camera is ideal for document scanning, face recognition systems, and action camera applications.
Feature
High-Definition Imaging: 2592x1944 pixels for clear and detailed images.
High-Speed USB 2.0 Transfer: Plug-and-play interface with 480MB/s speed.
Versatile Imaging Formats: Supports JPG, BMP, AVI, and MP4.
Image Enhancement Features: Adjustable exposure, color, brightness, contrast, and saturation.
Product structure
Specification
Overall performance parameters
|
Signal |
SNS-GM1133-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8inch |
||
|
Effective Pixels |
2592H*1944V |
|
|
|
Pixel size |
2.0 um*2.0 um |
|
|
|
Optical distortion |
<0.45% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
2592*1944 30 FPS 1920*1080 30 FPS 1600*1200 30 FPS |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
Type-c USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
3G2P+650IR |
|
|
|
F/NO |
3.0±5% |
|
|
|
EFL |
4.18 mm±5% |
|
|
|
FOV |
82°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|

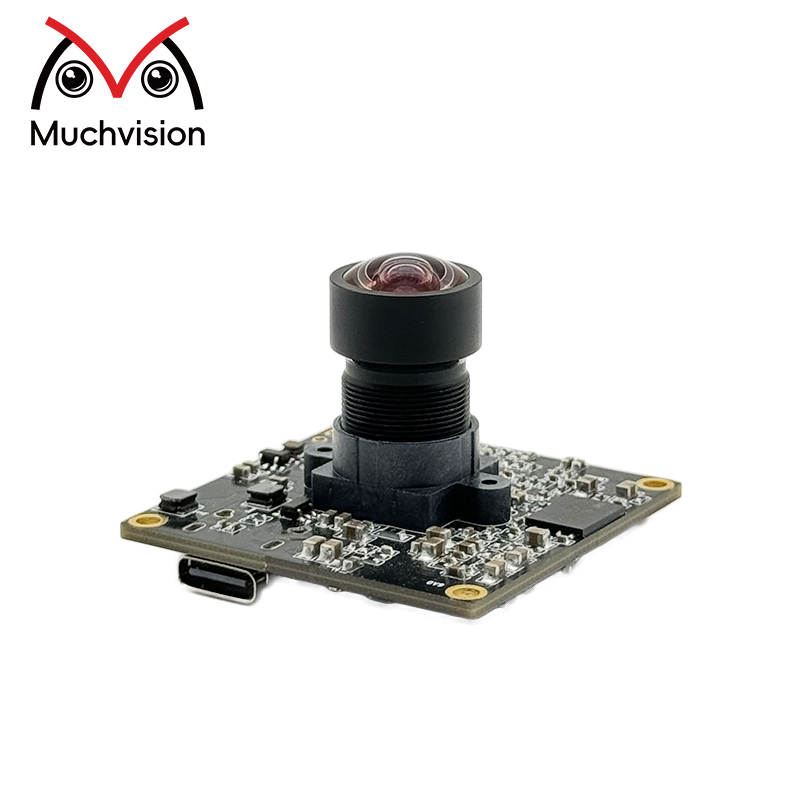

Product Picture
Application areas of camera modules
1. Document scanner: Used for document scanning to digitize paper documents for easy storage and retrieval
2. Face recognition system: Used in face recognition systems to provide high definition images and enhance recognition accuracy
3. Action camera: Used for outdoor sports cameras to capture dynamic scenes, suitable for extreme sports recording
