4MP camera module OEM MIPI Interface Main parameters
|
Module Number |
SNS41722-V1.0 |
Sensor |
GC4653 |
|
Resolution |
4k 8mp |
Dimension |
Customizable |
|
Lens FOV |
120 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
4K UHD |
Products Description
The CMOS sensor used in the SNS41722-V1.0 is ideal for professional imaging applications with its 1/3 inch optical format and high resolution of 2560x1440. The BSI pixel size of 2.0μm x 2.0μm ensures that each pixel captures more light, providing sharp images even in low-light environments. The application of electronic rolling shutter technology enables the sensor to significantly reduce blur and ensure the fluency of the picture when capturing fast-moving objects.
The sensor supports Raw Bayer 12bit/10bit output format, providing users with more post-processing space. The addition of MIPI interface makes data transmission faster and more stable. In addition, the 650nm IR anti-infrared interference filter ensures high-quality images in all lighting conditions.
In terms of power consumption, the sensor consumes only 120mW at a frame rate of 30fps, which is an important advantage for devices that need to run for a long time. It has an operating temperature range of -20 to 80°C and a stable image temperature of 0 to 60°C, which allows the sensor to operate stably in a variety of environments.
Feature
High Resolution: 2560x1440 pixels, ensuring sharp and clear image quality.
BSI Pixel Technology: 2.0μm x 2.0μm pixel size for enhanced low-light sensitivity.
Low Power Design: Consumes only 120mW at 30fps, suitable for continuous use.
IR Filter 650nm: Reduces infrared interference, delivering high-fidelity images.
MIPI Interface: Stable and efficient high-speed data transmission.

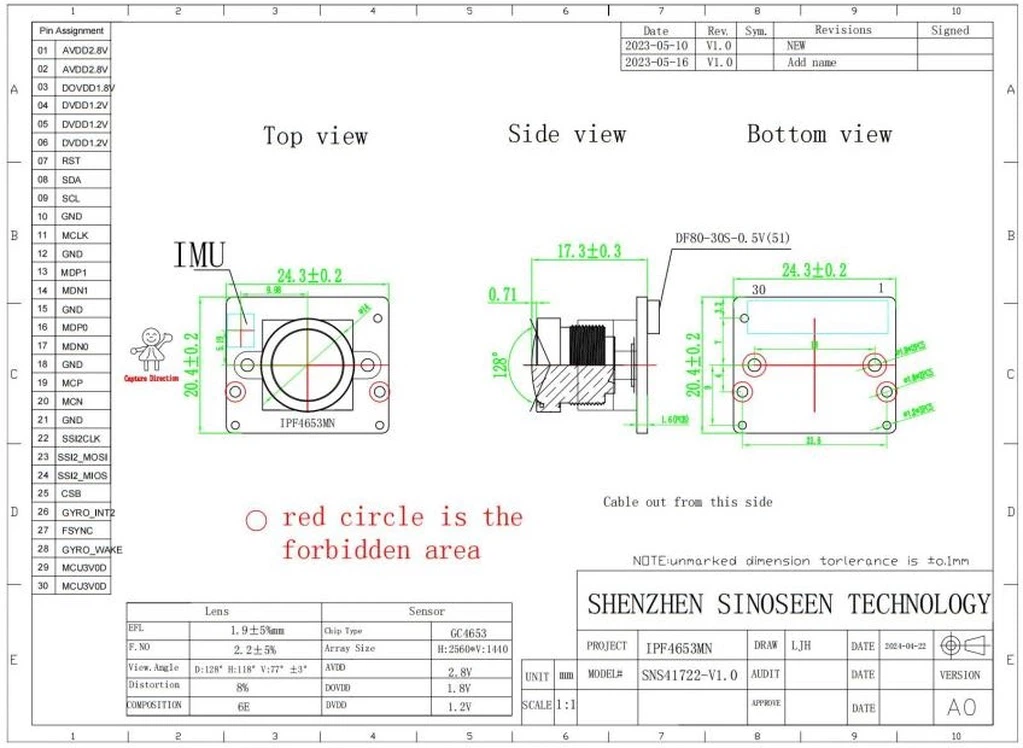

Product structure
Specification
Standard optical format of 1/3 inch
2.0um x 2.0um BSl pixel
Output formats: Raw Bayer 12bit/10bit
Power supply requirement: AVDD28: 2.7~2 9V(Typ2 8V)
DVDD:1.15-125VCyp12V)
IOVDD: 17~1.9V(Typ1.8V)
PLL support
Support for frame syne
MIPl(2 lane) interface support
Horizontal/Vertical mirror
lmage processing module
OTP support (2Kbits total)
Package: CSP
Specifications and features.
Total height: 17.3±0.3mm
PCB size: 24.3*20.4±0.2mm
Image size: 2560*1440
IR filter: 650 Chip parameters.
|
Parameter |
Typical value |
|
Optical Format |
1/3 inch |
|
Pixel Size |
2.0um x 2.0μm(BSE) |
|
Active pixel array |
2560 x 1440 |
|
Shutter type |
Electronic rolling shutter |
|
ADC resolution |
12/10-6 ADC |
|
Max Frame rate |
30fps@full size |
|
Power Supply |
AVDD28:2.8 V DVDD: 1.2V IOVDD: I8V |
|
Power Consumption |
120mW@30fps |
|
Max Optical leas chief ray angle(CRA) |
10%(linear) |
|
Sensitivity |
2.4V/Lux s |
|
Dynamic range |
81dB |
|
SNR |
38dB |
|
Operating temperature: |
-20-80℃ |
|
Stable lmage temperafure |
0-60℃ |
|
Package type |
41PIN-CSP |
