8MP Camera Module OEM IMX415 Main parameters
|
Module Number |
SNS81905-V1.0 |
Sensor |
IMX415 |
|
Resolution |
4k 8mp |
Dimension |
Customizable |
|
Lens FOV |
90 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB |
Feature |
HDR |
Products Description
The OEM IMX415 8MP USB camera module (SNS81905-V1.0) integrates the IMX415-AAQR-C CMOS sensor, delivering 3840x2160 4K resolution for high-quality imaging. The 1.45μm x 1.45μm pixel size ensures high sensitivity, capturing clear images even in low-light environments.
The module supports multiple readout modes, including all-pixel scan, 2x2 pixel binning, window cropping, and normal/inverted readout, giving flexible imaging options. With HDR capabilities, including multiple exposure HDR and digital overlap HDR, it provides balanced exposure in high-contrast scenes.
Feature
High-Resolution Imaging: 3840x2160 4K resolution for clear and detailed images.
High Sensitivity & Low Noise: RGB primary mosaic filter reduces dark current and smear.
HDR Functionality: Supports multiple exposure HDR and digital overlap HDR for high-contrast environments.
Variable Shutter Control: Gain adjustment from 0 dB to 72 dB for flexible exposure.
USB Interface: Easy integration with robotics, industrial cameras, and video conferencing systems.
Product structure
Specification
IMX415-AAQR-C Image Sensor Specifications
| Category | Specification |
|---|---|
| Sensor Type | CMOS active pixel type |
| Effective Pixels | 3840 (H) × 2160 (V) ≈ 8.46 MP |
| Pixel Array | Square pixel array |
| Diagonal / Optical Format | 6.4 mm (Type 1/2.8) |
| Power Supply | Analog: 2.9 V Digital: 1.1 V Interface: 1.8 V |
| Input Frequency | 24 MHz / 27 MHz / 37.125 MHz / 72 MHz / 74.25 MHz |
| Built-in Circuits | Timing adjustment, horizontal driver (H driver), serial communication |
| Readout Modes | All-pixel scan mode 2×2 horizontal/vertical binning Window cropping Normal / inverted readout (H/V) |
| Maximum Frame Rate | All-pixel scan mode: • 12-bit: 60.3 fps • 10-bit: 90.9 fps |
| Shutter Type | Electronic variable-speed shutter (resolution: 1H unit) |
| High Dynamic Range (HDR) | Multiple exposure HDR Digital overlap HDR |
| Sensor Synchronization | Supported |
| CDS / PGA (Gain) | 0–30 dB: Analog gain (0.3 dB steps) 30.3–72 dB: Analog gain 30 dB + Digital gain 0.3–42 dB (0.3 dB steps) |
| Output Format | RAW10 / RAW12 |
| Data Output Interface | CSI-2 serial (2-lane / 4-lane) |
| Recommended Exit Pupil Distance | –30 mm to ∞ |
| IR Filter | 650 nm |
| Image Size | 3840 × 2160 |
| Total Module Height | 24.9 ± 0.2 mm |
| Base Size | 15.3 × 15.3 ± 0.2 mm (PCB: 35 × 15 ± 0.2 mm) |
| Applications | Surveillance cameras, FA cameras, Industrial cameras |

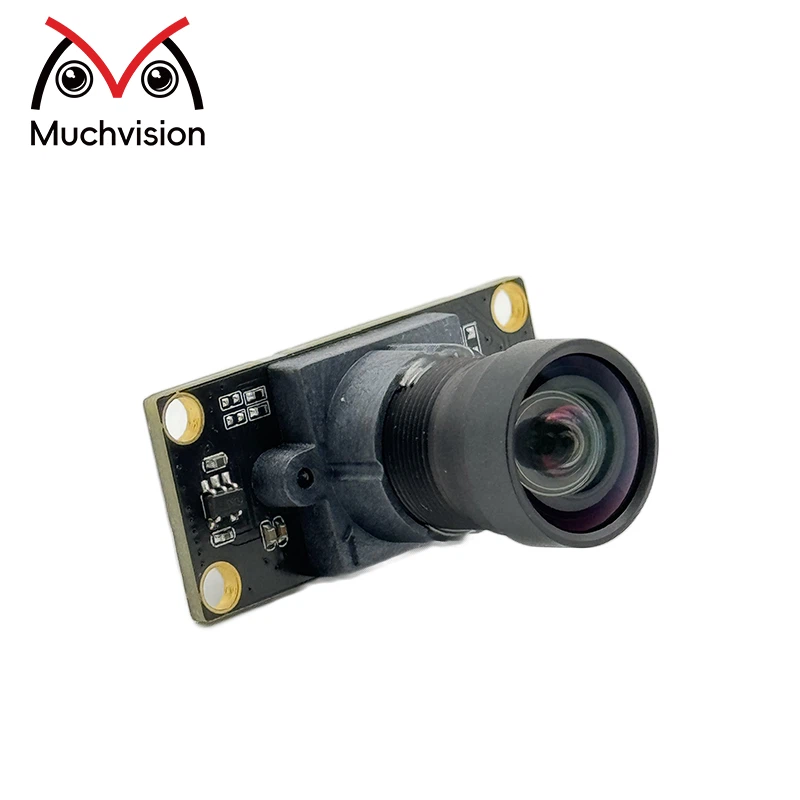

Product Picture
Application areas of camera modules
1. Automated robots: Integrated into automated robots to provide visual support and improve the navigation and operation capabilities of robots
2. Sports photography: Used in sports photography to capture the high-speed movements of athletes and provide moving images
3. Video conferencing system: Used for video conferencing systems to provide a clear video call experience
