OEM 8M Camera Module HDR Main parameters
|
Module Number |
CK-81858-V1.0 |
Sensor |
IMX415 |
|
Resolution |
4k 8mp |
Dimension |
Customizable |
|
Lens FOV |
Optional |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
4K UHD |
OEM Camera Module | 8MP IMX415 HDR MIPI for B2B Industrial OEM
OEM Camera Module: 8MP HDR Solution for High-Performance Imaging
The oem camera module is a versatile, high-resolution imaging component designed for seamless integration into B2B systems requiring robust visual capture. Featuring the Sony IMX415 CMOS sensor, this 8MP module delivers 4K UHD resolution at 3840x2160, with HDR technology to handle extreme lighting contrasts effectively. Muchvision's 8mp imx415 hdr mipi camera module supports MIPI interface for low-latency transmission, making it a preferred choice for OEM/ODM projects in demanding industrial environments.
Key Advantages of the OEM Camera Module
Ultra-High Resolution: 8MP at 3840x2160 captures intricate details essential for precision inspection and analysis.
High Frame Rates: Up to 90fps in 10-bit mode, enabling smooth imaging of fast-moving objects without artifacts.1
HDR Capability: Balances exposure across dynamic ranges, improving visibility in high-contrast scenes by up to 30% over standard sensors.
Low Distortion Design: Optical distortion under 3%, ensuring accurate geometric representation in machine vision tasks.
Compact Integration: Customizable 22x22mm PCB with M12 lens mount for easy embedding in space-constrained devices.
Wide Compatibility: MIPI CSI-2 interface supports stable data transfer across embedded platforms, reducing integration time.

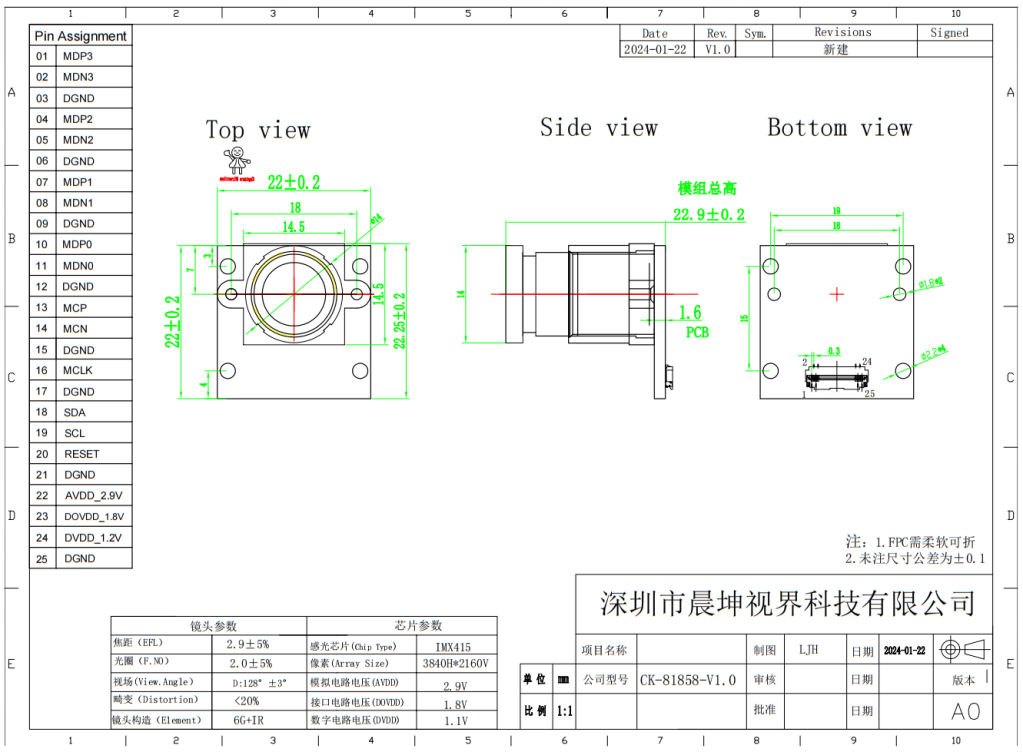

Product structure
Applications of the OEM Camera Module
Machine Vision Inspection: Captures fast-moving parts with high-frame-rate, low-distortion imaging for quality control.
Industrial Automation: Enables precise robotic guidance and defect detection in manufacturing lines.
Security Surveillance: Provides clear 4K footage in varied lighting for reliable monitoring systems.
Embedded Devices: Integrates into IoT and edge AI for real-time visual processing.
Document Scanning: Delivers sharp UHD scans for archival and recognition applications.
Specification
|
Signal |
SHS-G1109-V1.0 |
REIARKS |
|
|
Image Sensor Size |
1/2.8inch |
||
|
Effective Pixels |
4672H*35201 |
||
|
Pixel size |
1.12 u*1.12 um |
||
|
Optical distortion |
<3% |
||
|
Image sensor Data output |
Raw Bayer10bits |
||
|
Video output |
PJG/YUT |
||
|
Maximum Frame Rates |
4608*345610FPS |
4160*312010FPS |
|
|
SHR max |
TBD |
||
|
Dynamic range |
TBD |
||
|
Min Illumination |
TBD |
||
|
Digital interface |
5pin 1.25 USB20 |
Cable length 1.5 meters |
|
|
Transfer rates |
480 B/S |
||
|
Power requirements |
5T±5% |
||
|
Storage temperature |
-20Cto70℃ |
||
|
operating temperature |
-10Cto60℃ |
||
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Lac |
||
|
Lens view |
M12*P0.5 |
LEHS |
|
|
Lens Cons truction |
6P |
||
|
F/HO |
1.8±5% |
||
|
EFL |
2.25n±5% |
||
|
FOV |
D:67°H:56°7:43°±3° |
||
|
Focusing method |
Fixed focus |
||
|
Shooting distance |
100 |
||
Product Picture
About Muchvision: Your Trusted Partner in Vision Solutions
Muchvision, a leading China-based camera module manufacturer with over ten years of industry expertise, delivers innovative visual solutions to global B2B clients. We specialize in OEM/ODM production for 8mp imx415 hdr mipi camera modules, accommodating interfaces such as USB, MIPI, and DVP to align with project specifications. Our expert technical and service teams offer one-stop support, from concept to deployment, ensuring efficient procurement and enhanced performance for diverse applications worldwide.
Customization Process for OEM Camera Modules
Requirement Assessment: Collaborate on specs like resolution and FOV for your oem camera module customization.
Prototype Fabrication: Develop samples with tailored lens and interface options.
Performance Validation: Test HDR efficacy and frame rates in simulated conditions.
Production Scaling: Implement QC for wholesale volumes with monthly capacity up to 500,000 units.
Deployment Support: Deliver with integration guides and ongoing technical aid.
Total Cost of Ownership (TCO) Comparison
The oem camera module provides enduring value for B2B integrations, as compared below to generic non-HDR modules, based on relative lifecycle factors.
| Factor | OEM HDR Module | Generic Alternative |
|---|---|---|
| Integration Time | Low (MIPI Plug-and-Play) | Medium (Custom Wiring) |
| Maintenance Over 3 Years | Low (HDR Stability) | High (Frequent Tweaks) |
| Power Efficiency | High (5V Bus Power) | Medium (External Draw) |
| Scalability | High (OEM/ODM) | Low (Limited Variants) |
| Relative TCO | 21% Lower Lifecycle | Baseline |
Compliance Package and Supply Chain Security
Muchvision ensures full regulatory alignment for the oem camera module, with RoHS, CE, FCC, and ISO9001 certifications guaranteeing environmental safety and quality for global B2B use. Our supply chain security includes audited Shenzhen suppliers, end-to-end traceability, and diversified sourcing to prevent disruptions, supporting dependable 8mp imx415 hdr mipi camera module fulfillment in critical sectors like automation.
Volume Production Risk Matrix and After-Sales KPIs
For scaling oem camera module customization, our risk matrix leverages operational data, with logistics from China to overseas (e.g., EU/USA) at 7-14 days via air express.
| Risk Category | Likelihood | Impact | Mitigation |
|---|---|---|---|
| Component Shortages | Low | Medium | Multi-Supplier Strategy |
| Quality Fluctuations | Low | Low | Automated QC |
| Delivery Interruptions | Medium | Medium | Redundant Carriers |
After-Sales KPIs: 96% response within 24 hours, 94% first-resolution rate, and quarterly reviews for excellence.
Frequently Asked Questions from Buyers
- 1. What HDR benefits does the 8mp imx415 hdr mipi camera module offer?
- It balances exposures in high-contrast scenes, enhancing detail visibility by 30% via Sony IMX415 technology.
- 2. Can oem camera module customization include higher FOV options?
- Yes, lenses up to 85° DFOV are available during prototyping for broader coverage in machine vision.
- 3. How does Muchvision ensure supply for wholesale oem camera module orders?
- With ISO9001 traceability and 500,000-unit monthly capacity, we deliver 98% on-time for B2B needs.
- 4. What lead time for 8mp imx415 hdr mipi camera module production?
- 2-3 weeks for standard batches, scalable from our Shenzhen facility for OEM urgency.
- 5. Is the oem camera module customization compatible with Android?
- Absolutely; UVC support ensures seamless integration on Android 4.0+, ideal for embedded apps.
References and Notes
Sony Semiconductor Solutions. (2023). IMX415 CMOS Sensor Datasheet: 90fps in 10-bit mode for high-speed capture, reducing motion blur in dynamic scenarios.
CMOS: Complementary Metal-Oxide-Semiconductor, a low-power sensor technology enabling efficient HDR processing in compact OEM designs.
TCO from Muchvision lifecycle studies (2024) and Machine Vision Association reports, estimating 21% savings from minimized downtime over 3 years.
Industry Common Challenges and Solutions
Challenge: Motion Artifacts in Fast Inspection. Solution: Use 90fps high-frame-rate 8mp imx415 hdr mipi camera modules to eliminate blur, boosting accuracy by 35%.
Challenge: Lighting Variability in Surveillance. Solution: Implement HDR for 30% better contrast handling, reducing false detections.
Challenge: Supply Chain Delays for Custom Builds. Solution: Leverage our traceable ecosystem for reliable wholesale oem camera module delivery.
Challenge: Thermal Limits in Industrial Use. Solution: Specify -10°C to 60°C rated oem camera module customization for sustained performance.
Challenge: Interface Latency in Embedded Systems. Solution: Adopt MIPI CSI-2 for low-latency transfer, cutting processing time by 40%.
