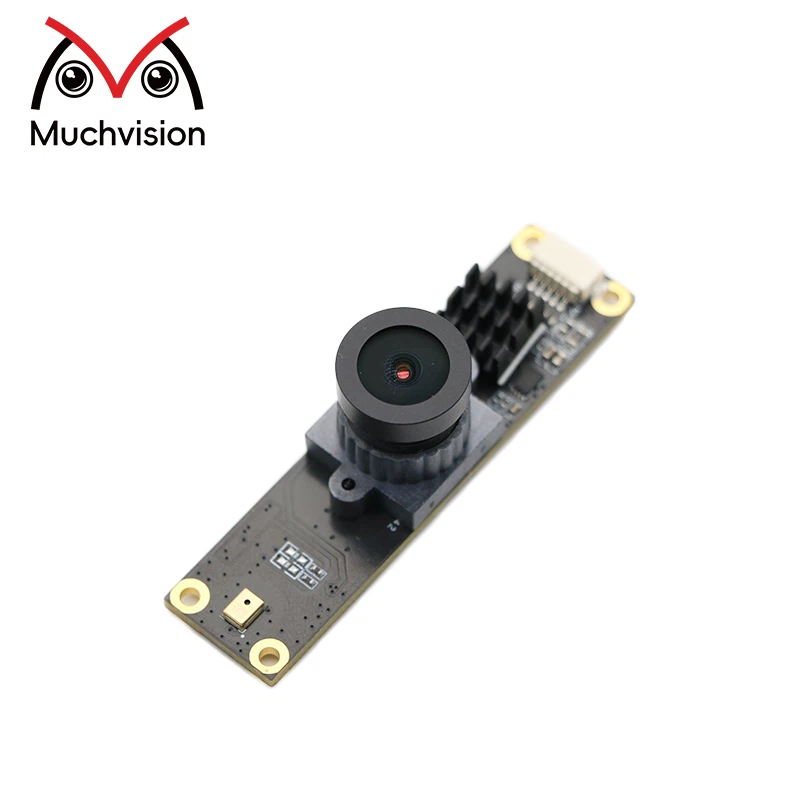

Full HD OEM Camera Module 1080P imx307 Main parameters
|
Module Number |
XLS-DZ1123-V1.0 |
Sensor |
IMX307 |
|
Resolution |
2mp |
Dimension |
Customizable |
|
Lens FOV |
65 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB 2.0 |
Feature |
Full HD |
Products Description
The XLS-DZ1133-V1.0 uses a 1/2.8 inch CMOS image sensor with 1920x1080 effective pixels to ensure full HD image clarity. The sensor's 2.9μm x 2.9μm pixel size optimizes imaging performance in low light. Modules support a variety of resolutions and frame rates, including 1920x1080@30fps, 1280x960@30fps.
The module provides high-speed data transmission of 480Mbps through USB 2.0 interface, ensuring fast and stable image data output. Support JPG, BMP, AVI and MP4 format static and dynamic image capture, CMOS progressive scanning technology to ensure the image without compression, no interpolation, improve the authenticity and sharpness of the image.
The operating temperature range of the module is -30°C to 60°C, and the storage temperature range is -40°C to 70°C, which is suitable for various environmental conditions. USB 2.0 drive-free plug and play, no external power supply, making the use of the module more convenient.
Feature
Full HD Imaging: 1920x1080 resolution ensures clear image quality.
Fixed-Focus Lens: 65° FOV suitable for wide coverage.
High-Speed USB 2.0 Interface: 480Mbps for fast and stable data transfer.
Image Enhancement: Supports exposure, brightness, contrast, saturation, and chromatic aberration adjustment.

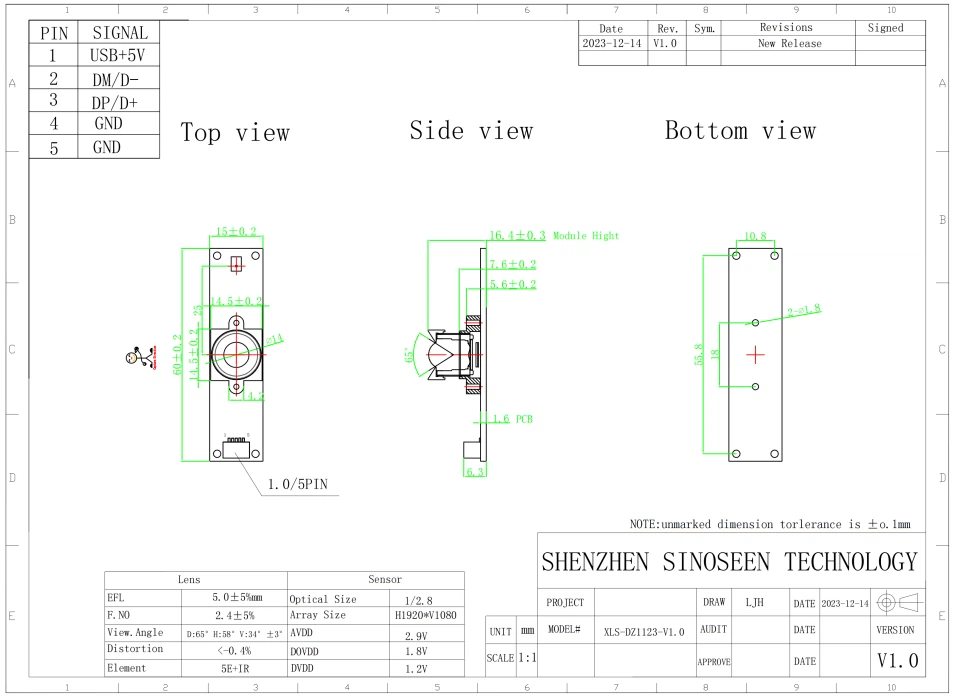

Product structure
Specification
|
Signal |
XLS-DZ1123-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8"inch |
||
|
Effective Pixels |
1920*1080 |
|
|
|
Pixel size |
2.9 um * 2.9 um |
|
|
|
Optical distortion |
<-0.4% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MJPG/YUV |
|
|
|
Maximum Frame Rates |
1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 1024*768 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
1.0/5PIN/ USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-40℃to70℃ |
|
|
|
operating temperature |
-30℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
5E+IR |
|
|
|
F/NO |
2.4±5% |
|
|
|
EFL |
5.0 mm±5% |
|
|
|
FOV |
D:65°±3° |
|
|
|
Focus mode |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|

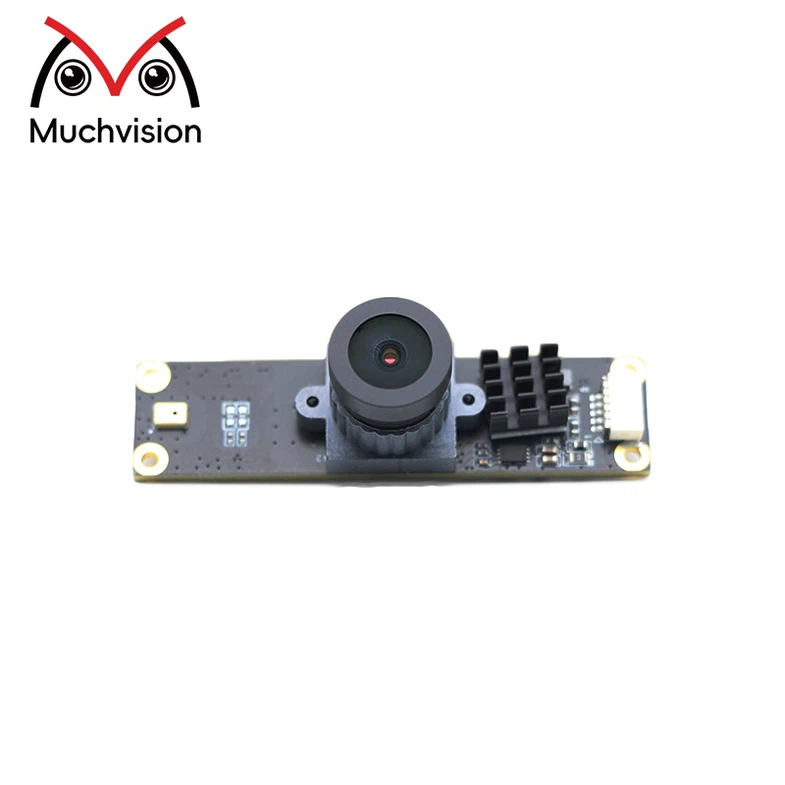

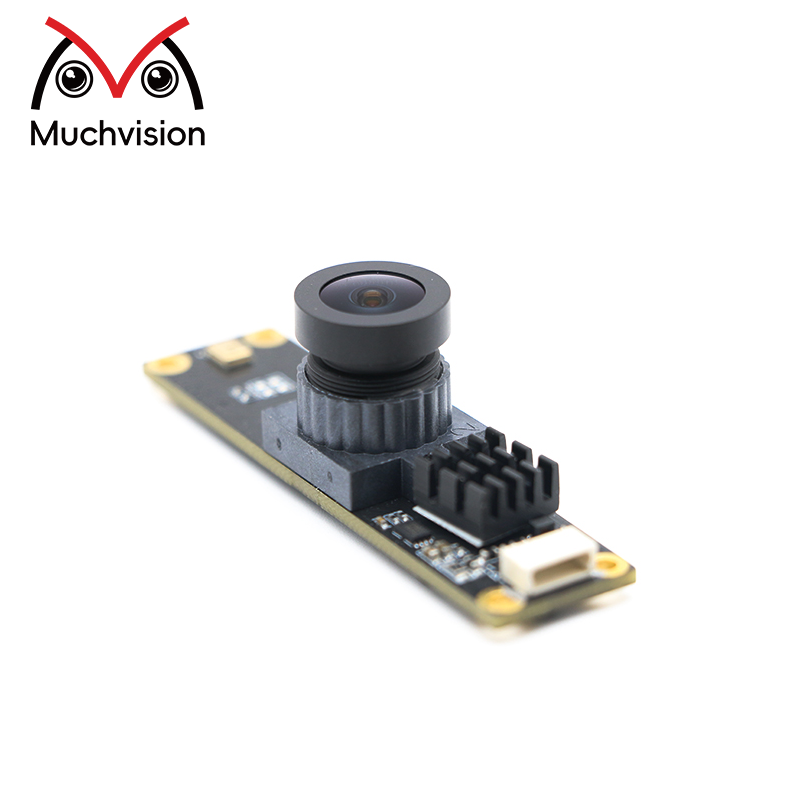

Product Picture
Application areas of camera modules
1. Food quality inspection: Used in food processing industry to detect food quality and ensure food safety
2. Retail monitoring: Used to monitor retail stores, prevent theft, and improve store security management
3. Fire rescue equipment: Integrated with fire rescue equipment to provide on-site images to assist rescue decision making
