OEM 1/2.8 Inch CMOS Sensor Module Main parameters
|
Module Number |
SNS-DZ1065-V1.0 |
Sensor |
IMX415 |
|
Resolution |
4k 8mp |
Dimension |
Customizable |
|
Lens FOV |
163 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB 2.0 |
Feature |
4K UHD |
Products Description
The core of the SHS-DZ1065-1.0 module is a 1/2.8 inch CMOS image sensor with 3864x2228 effective pixels to ensure high image definition. The sensor's 1.45μm x 1.45μm pixel size optimizes imaging performance in low light. The modules support a variety of resolutions and frame rates, including 3840x2160@30fps and 2592x1944@30fps, to suit different application needs.
The module provides high-speed data transmission of 480Mbps through USB 2.0 interface, ensuring fast and stable image data output. Supports static and dynamic image capture in JPG, BMP, AVI and MP4 formats.
Feature
High resolution imaging: 3864x2228 effective pixels, providing clear image quality.
High-speed USB 2.0 interface: The transmission rate can reach 480Mbps, ensuring fast data transmission.
CMOS progressive scanning technology: To ensure the image without compression, no interpolation, improve the image authenticity.
No-drive plug and play: USB 2.0 interface, no external power supply, easy to use.
Product structure
Specification
|
Signal |
SNS-DZ1065-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8inch |
||
|
Effective Pixels |
3864H*2228V |
|
|
|
Pixel size |
1.45 um*1.45 um |
|
|
|
Optical distortion |
<10.2% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
3840*2160 30FPS 2592*1944 30FPS 2048*1536 30FPS 1600*1200 30FPS 1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS |
||
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
5pin 1.25mm USB2 |
Line length1.5m |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
TBD |
|
|
IR-LED |
TBD |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
6G+IR |
|
|
|
F/NO |
1.6±5% |
|
|
|
EFL |
2.3 mm±5% |
|
|
|
FOV |
163°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|

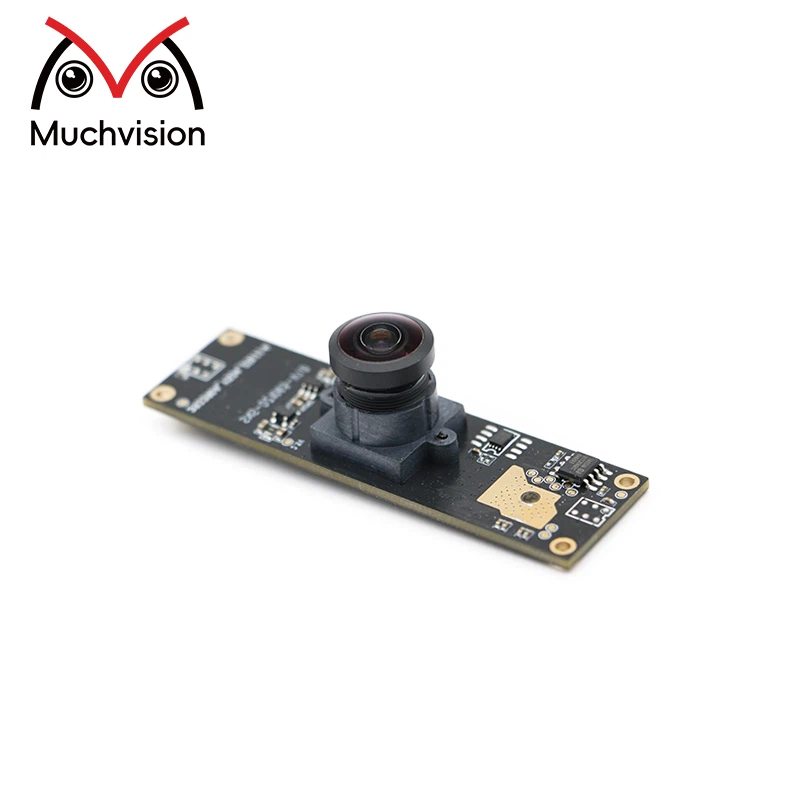

Product Picture
Application areas of camera modules
1. Pet monitoring cameras: Used for pet monitoring, allowing pet owners to view their pets' activities and health remotely
2. Virtual Reality (VR) : For virtual reality devices that provide the high-quality image capture required for immersive experiences
3. Augmented Reality (AR) : for augmented reality applications that combine real world and virtual information to provide an enhanced visual experience
