OV9782 Global Shutter Camera Module 120fps
|
Module Number |
SNS-1MP-OV9782-S1 |
Sensor |
1/4" Omnivision OV9782 CMOS Sensor |
|
Resolution |
1MP 1280(H) X 720(V) |
Dimension |
(customizable) |
|
Lens FOV |
90°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Global Shutter |
Products Description

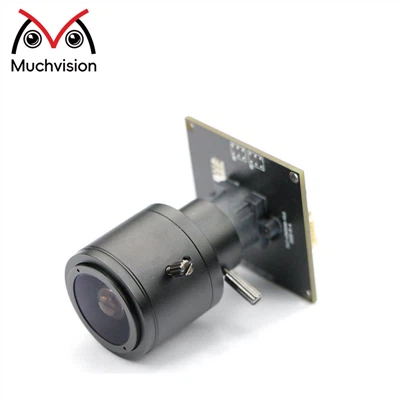

The SNS-1MP-OV9782-S1 is a USB camera module featuring a 1/4-inch Omnivision OV9782 CMOS sensor, providing 1MP (1280x720) HD color images.
It uses global shutter technology to eliminate motion blur and jello effects, ensuring accurate and sharp images in high-speed scenarios. Unlike many global shutter cameras, this module outputs high-quality color images, expanding its application range.
The module supports an ultra-high frame rate of 120FPS at full 1MP resolution, delivering smooth real-time performance for capturing instantaneous events and high-speed analysis.
Equipped with a fixed focus M12 lens (default 80° FOV), it allows customizable module size and lens FOV. The module is plug-and-play via USB2.0, compatible with Windows, Linux, macOS, and Android systems.
Highlights
Omnivision OV9782 global shutter sensor.
1MP (1280x720) high-definition color image.
Ultra-high frame rate: 120FPS@1MP full resolution.
USB2.0 interface, UVC compatible, plug and play.
Unique color global shutter function.
Specification
|
Model No |
SNS-1MP-OV9782-S1 |
|
Sensor |
1/4'' Omnivision OV9782 CMOS sensor |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 720(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3896µm x 2453µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
68dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
USB2.0 high speed |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 80° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Not supported |
|
Auto White Balance |
Supported |
|
Auto Gain Control |
Not supported |
|
Dimension |
32mm*32mm |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
