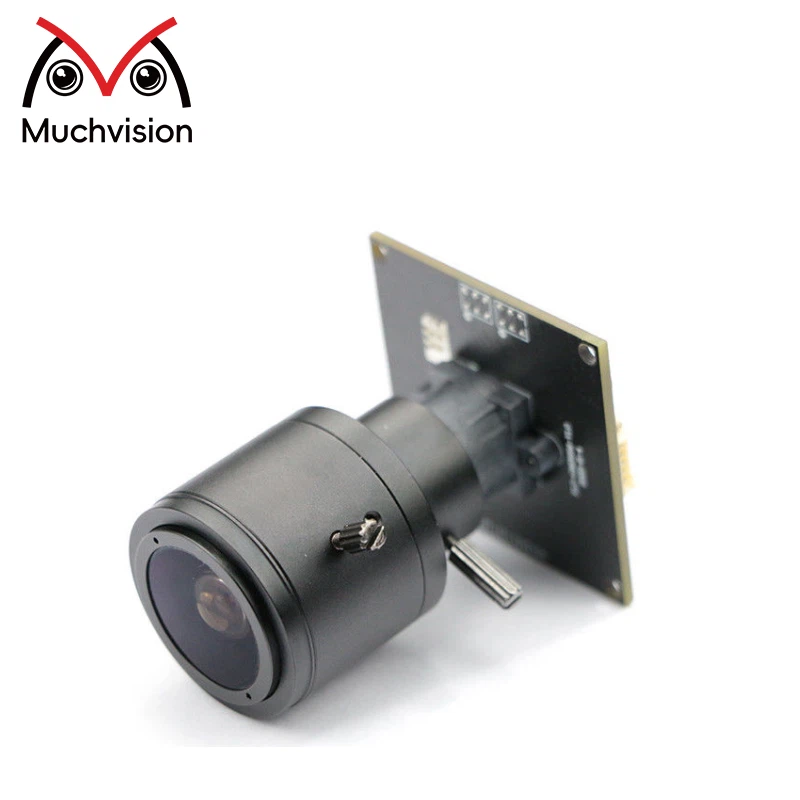

Global Shutter USB2.0 Imaging Camera Module 1MP
|
Module Number |
SNS-1MP-OV9782-V1.0 |
Sensor |
1/4" Omnivision OV9782 CMOS Sensor |
|
Resolution |
1MP 1280(H) X 720(V) |
Dimension |
(customizable) |
|
Lens FOV |
90°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Global Shutter |
Products Description
The SNS-1MP-OV9782-V1.0 is a USB2.0 camera module featuring a 1/4-inch Omnivision OV9782 CMOS sensor, providing 1MP (1280x720) HD color images.
It uses true global shutter technology to eliminate motion blur and jello effects, ensuring accurate and distortion-free images in high-speed or vibrating environments. This makes it ideal for applications such as robotics, drones, industrial inspection, and high-speed object scanning.
The sensor also delivers excellent near-infrared (NIR) quantum efficiency, providing strong imaging performance even under weak infrared light. This capability enables night vision, auxiliary IR lighting, and spectral analysis applications.
The module supports plug-and-play USB2.0 connectivity and is compatible with Windows, Linux, macOS, and Android systems. Its customizable size and lens FOV allow flexible integration into various vision systems.
Highlights
Omnivision OV9782 global shutter sensor.
1MP (1280x720) high-definition color image.
USB2.0 interface, UVC compatible, plug and play.
Excellent near-infrared (NIR) quantum efficiency (QE).
Specification
|
Model No |
SNS-1MP-OV9782-V1.0 |
|
Sensor |
1/4'' Omnivision OV9782 CMOS sensor |
|
Pixel |
1 Mega Pixel |
|
Most effective pixels |
1280(H) x 720(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
3896µm x 2453µm |
|
Chroma |
COLOR Image |
|
Compression format |
MJPG/YUY2 |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Global shutter |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
68dB |
|
Protocol |
Plug-&-Play (UVC compliant) |
|
Interface type |
USB2.0 high speed |
|
Lens |
Lens Size: 1/4 inch |
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 180mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control |
Not supported |
|
Auto White Balance |
Supported |
|
Auto Gain Control |
Not supported |
|
Dimension |
38mm*38mm |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/ |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
