SC035HGS 1mp 120fps/240fps USB Camera Module Main parameters
|
Module Number |
SNS-DZ1117-V1.0 |
Sensor |
SC035HGS |
|
Resolution |
0.3mp |
Dimension |
Customizable |
|
Lens FOV |
Optional |
Focus Type |
Fixed Focus |
|
Interface |
USB |
Feature |
High frame rate |
Products Description
The SC035HGS 1MP USB camera module provides high-speed imaging with 120fps and 240fps video capture. Its global shutter ensures uniform exposure across all pixels for clear and consistent images.
The module uses a USB 2.0 interface, offering plug-and-play compatibility with Windows, Mac, Linux, and Android systems. The fixed-focus lens covers distances from 60cm to infinity with an 80° field of view, making it suitable for monitoring large areas.
Features
High frame rate: 120fps and 240fps for smooth motion capture
Global shutter: Consistent exposure for all pixels
Fixed focus lens: Covers 60cm to infinity
USB 2.0 interface: Plug-and-play support across multiple systems
Product structure
Specification
|
Signal |
SNS-DZ1117-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/6"CMOS |
||
|
Effective Pixels |
640*480 |
|
|
|
Pixel size |
3.744um*3.744um |
|
|
|
Optical distortion |
≤27% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG |
|
|
|
Maximum Frame Rates |
640*480 120FPS 640*360 120FPS 320*240 200FPS 304*168 230FPS |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
NO LED |
|
|
Digital interface |
4 pin 1.25mm USB2.0 |
|
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M5*P0.25 |
LENS |
|
|
Lens Construction |
5P |
|
|
|
F/NO |
2.2 |
|
|
|
EFL |
1.46 mm |
|
|
|
FOV |
H:80° ±3° |
|
|
|
Module shooting distance |
Fixed focus 60cm-Infinity |
|
|

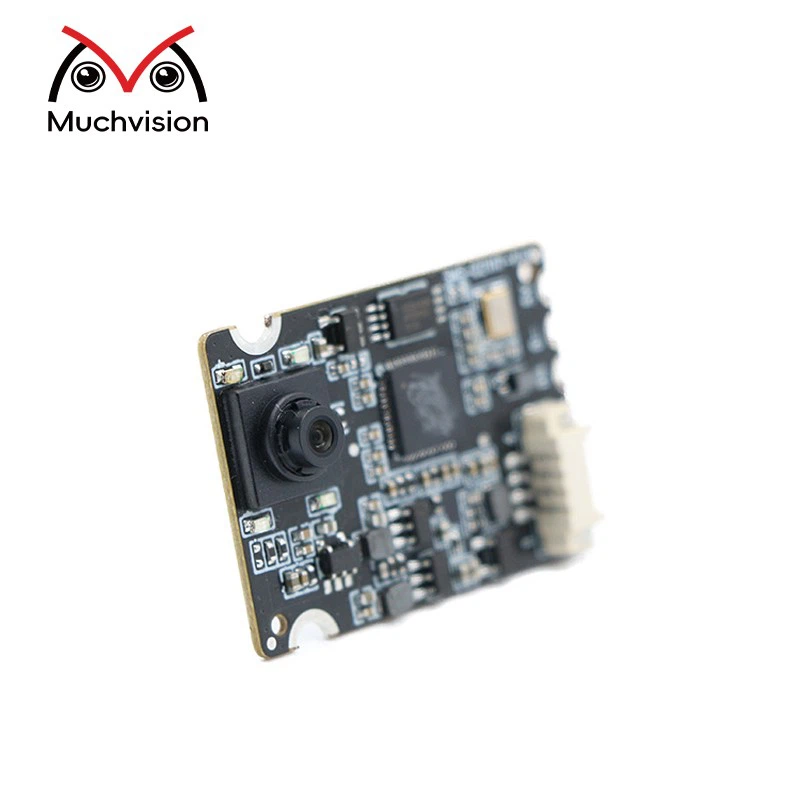

Product Picture
Application areas of camera modules
1. Wildlife monitoring: Used for wildlife monitoring, studying animal behavior, and protecting wild animals
2. Pipeline inspection camera: Used for pipeline inspection to detect the internal condition of the pipeline and prevent pipeline failure
3. Solar panel testing: Used for solar panel testing to monitor solar panel performance and improve energy efficiency
