2mp 1/2.9 inch 60fps USB Camera Module Main parameters
|
Module Number |
XLS-GM975M-V1.2 |
Sensor |
1/2.9 inch |
|
Resolution |
2mp |
Dimension |
Customizable |
|
Lens FOV |
95 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB 2.0 |
Feature |
High frame rate |
Products Description
The 2MP 1/2.9 inch USB camera module delivers high-resolution imaging with a maximum frame rate of 60fps. Its fixed focus lens captures clear images from 60cm to infinity, suitable for diverse applications.
Equipped with a USB 2.0 interface, the module supports 480MB/s data transfer and plug-and-play operation across Windows, Mac, Linux, and Android platforms. The sensor provides excellent performance in low-light conditions and supports standard C-mount or customized lenses.
This compact camera module is ideal for geological exploration, machine vision inspection, and industrial camera systems, ensuring high image quality and reliable operation.
Advantages
High frame rate: Up to 60fps for smooth video capture
Fixed focus lens: Covers 60cm to infinity
USB 2.0 interface: Supports plug-and-play on multiple systems
High-resolution 2MP sensor: Clear and detailed imaging
Product structure
Specification
|
Signal |
XLS-GM975M-V1.2 |
REMARKS |
||||
|
Image Sensor Size |
1/2.9 inch |
|||||
|
Effective Pixels |
1600H*1300V |
|||||
|
Pixel size |
3 um*3 um |
|||||
|
Optical distortion |
-1.0% |
|||||
|
Image sensor Data output |
Raw Bayer 10bits |
|||||
|
Video output |
MJPG/YUY2 |
|||||
|
Maximum Frame Rates |
1600*1200 60FPS 1280*720 60FPS 960*720 60FPS 640*480 120FPS |
1280*960 1024*768 800*600 320*240 |
60FPS 60FPS 120FPS 120FPS |
MJPG |
||
|
Maximum Frame Rates |
1600*1200 1280*720 960*720 640*480 |
5FPS 5FPS 15FPS 30FPS |
1280*960 1024*768 800*600 320*240 |
5FPS 10FPS 20FPS 120FPS |
YUY2 |
|
|
SNR max |
TBD |
|||||
|
Dynamic range |
TBD |
|||||
|
Min. Illumination |
TBD |
|||||
|
Digital interface |
5pin 1.25mm USB2.0 |
Line length 1.5 m |
||||
|
Transfer rates |
480MB/S |
|||||
|
Power requirements |
5V±5% |
|||||
|
Storage temperature |
-20℃to70℃ |
|||||
|
operating temperature |
-10℃to60℃ |
|||||
|
Power Consumption |
NO LED |
/ |
||||
|
IR-LED |
/ |
|||||
|
PCB printig ink |
black |
|||||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|||||
|
Lens view |
M12*P0.5 |
LENS |
||||
|
Lens Construction |
2G2P+IR |
|||||
|
F/NO |
2.2±5% |
|||||
|
EFL |
3mm±5% |
|||||
|
FOV |
95 ° ±3 ° |
|||||
|
Focusing method |
Fixed focus |
|||||
|
Shooting distance |
60cm-. |
|||||

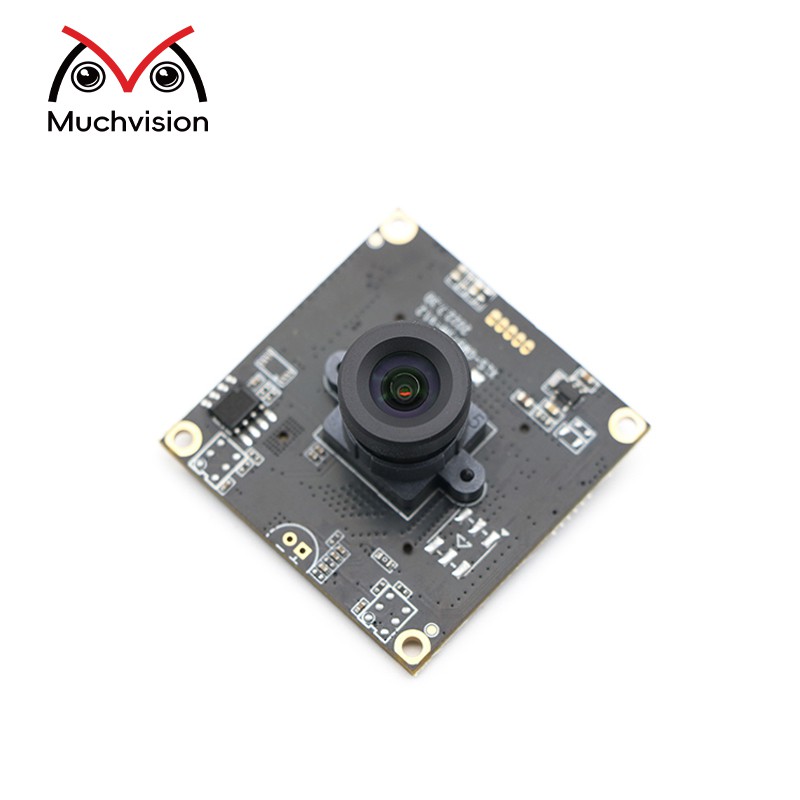

Product Picture
Application areas of camera modules
1. Geological exploration camera: Used for geological exploration to capture images of geological structures and assist geological research
2. Machine Vision inspection: The Global Exposure camera module is suitable for machine vision inspection, capturing fast moving objects without motion artifacts
3. Industrial Camera modules: For industrial camera modules, providing high definition and wide dynamic range to adapt to different lighting conditions
