IMX178 USB Camera Module 12MP 4k Main parameters
|
Module Number |
SNS-DZ1092-V1.0 |
Sensor |
IMX178 |
|
Resolution |
6mp |
Dimension |
25*25mm(Customizable) |
|
Lens FOV |
119 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB |
Feature |
Wide angle |
Products Description
The SNS-DZ1092-V1.0 IMX178 camera module features a 12MP Sony IMX178 sensor capable of capturing 4K video at 30fps with high dynamic range (HDR) support. Its wide-angle fixed-focus lens provides clear and detailed imaging for various AI vision applications.
Designed for NVIDIA Jetson platforms, this camera module supports AI-powered tasks including object detection, facial recognition, and scene analysis. The USB 3.0 interface ensures high-speed, reliable data transfer, enabling plug-and-play integration with Jetson systems.
With high sensitivity, low noise, and accurate color reproduction, the IMX178 camera module delivers excellent imaging performance in both bright and low-light environments. Ideal for robotics, autonomous vehicles, industrial automation, and smart surveillance applications.
Key Features/Advantages
12MP High Resolution: Captures detailed images at 4096×2160 for high-precision AI tasks
AI-Powered: Compatible with NVIDIA Jetson for object detection, facial recognition, and scene analysis
High Dynamic Range (HDR): Ensures optimal image quality in bright and low-light conditions
USB 3.0 Interface: Fast, reliable data transfer with plug-and-play support
Wide-Angle Lens: 119° FOV for broad scene capture

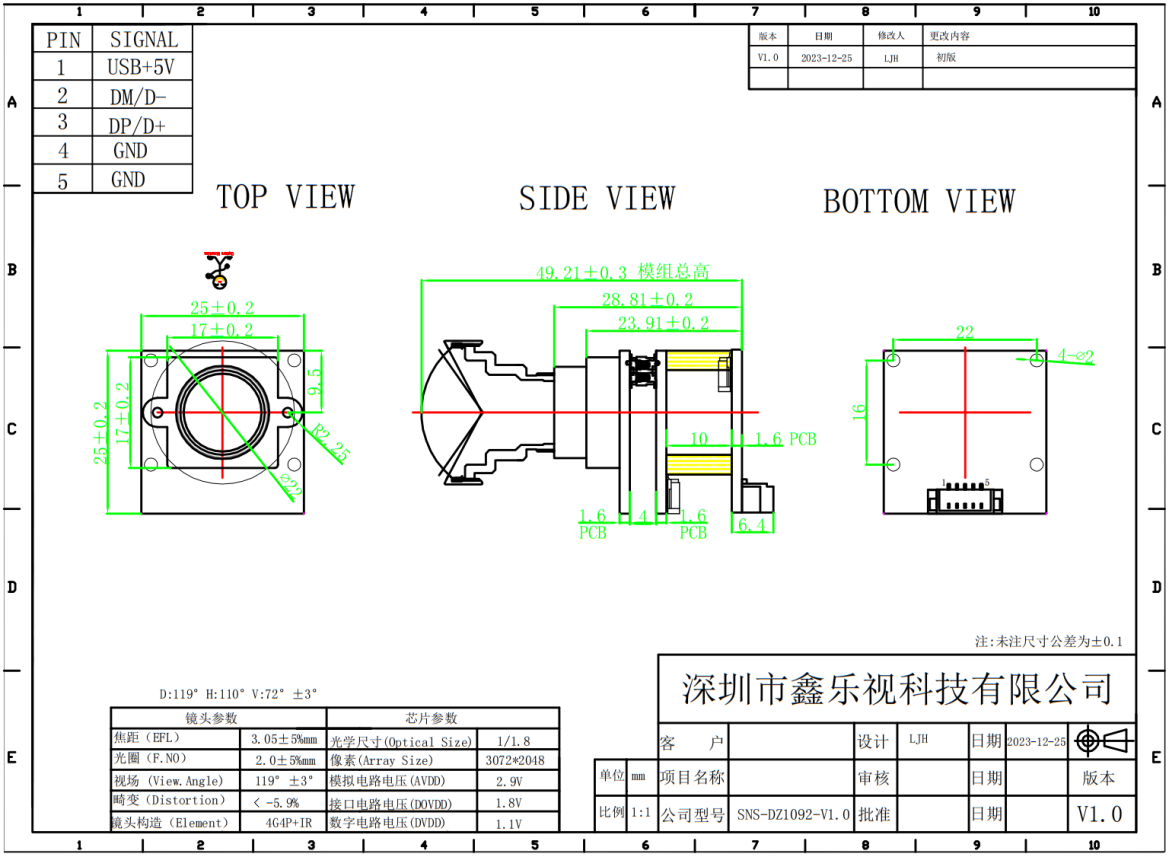

Product structure
Specification
|
Signal |
SNS-DZ109-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/1.8inch |
||
|
Effective Pixels |
3072*2048 |
|
|
|
Pixel size |
2.4 um*2.4 um |
|
|
|
Optical distortion |
<-5.9% |
|
|
|
Image sensor Data output |
Raw Bayer 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
3072*2048 30FPS 3072*1728 30FPS 2592*1944 30FPS 2048*1536 30FPS 1600*1200 30FPS 1920*1080 120FPS 1280*720 120FPS 1280*960 30FPS 800*600 30FPS 640*480 30FPS |
||
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
5pin 1.25mm USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-10℃to60℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
4G4P+650IR |
|
|
|
F/NO |
2.0±5% |
|
|
|
EFL |
3.05 mm±5% |
|
|
|
FOV |
D:119°±3° |
|
|
|
Focusing method |
Fixed focus |
|
|
|
Shooting distance |
60cm-∞ |
|
|
Product Picture
Application areas of camera modules
1. Agricultural monitoring: Used for agricultural monitoring, monitoring crop growth conditions, improve agricultural production efficiency
2. Pet monitoring cameras: Used for pet monitoring, allowing pet owners to view their pets' activities and health remotely
3. Virtual Reality (VR) : For virtual reality devices that provide the high-quality image capture required for immersive experiences
