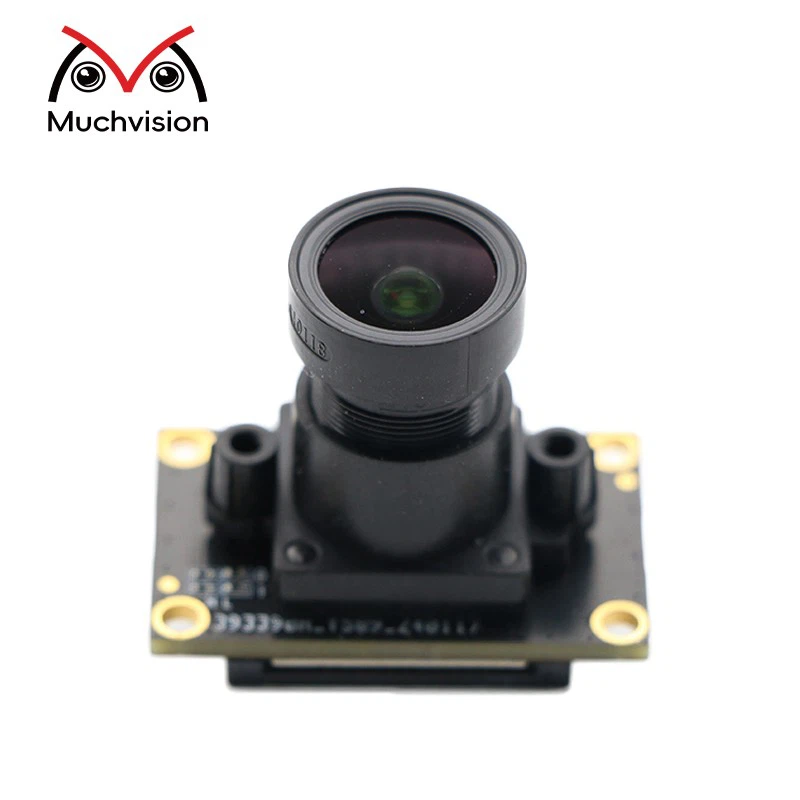

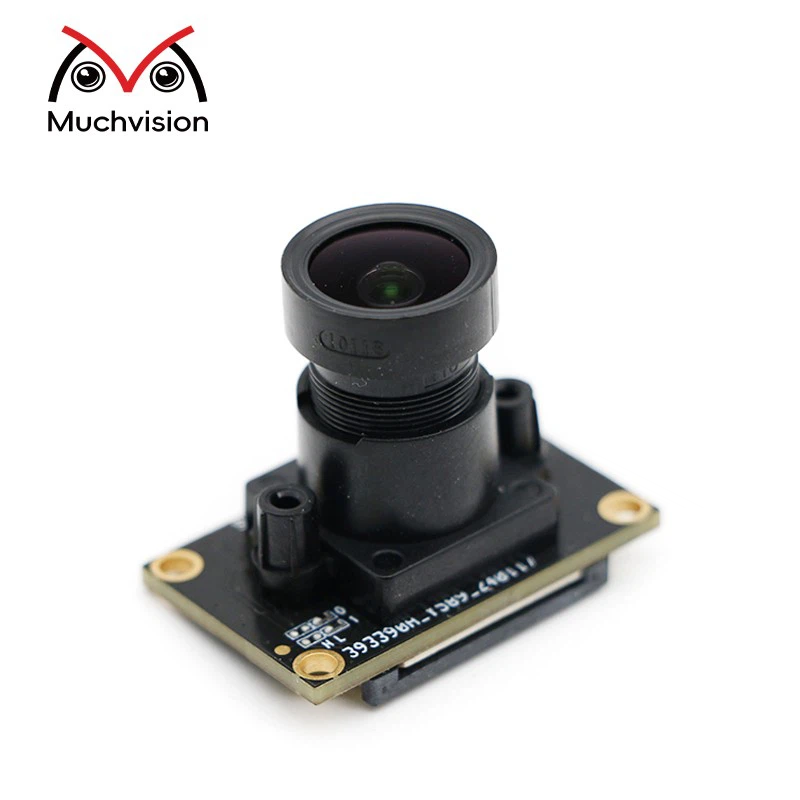

IMX662 2MP 1080P Raspberry Pi Camera Module MIPI HDR Low-Power High-Performance Imaging for Security

The IMX662 camera module integrates a Sony 2MP CMOS sensor with 1920×1080 video resolution and up to 90fps capture, delivering smooth, high-quality video. It supports MIPI CSI-2 output with RAW10/RAW12 formats for flexible integration into Raspberry Pi 2B, 4B, and other embedded systems.

Equipped with HDR functionality and a digital overlap feature, the module captures detailed images in scenes with challenging lighting conditions. Its low-power design ensures efficient operation in battery-powered devices and IoT applications.

2MP High Resolution: Captures 1920×1080 Full HD video at high frame rates

High Frame Rate: Up to 90fps for smooth video and fast-moving objects

HDR Support: High dynamic range imaging for challenging lighting conditions

MIPI CSI-2 Interface: Supports 2-lane or 4-lane output with RAW10/RAW12 formats

1. Product Introduction

The lMX662-AAQR-C is a diagonal 6.45 mm (Type 1/2.8) CMOS active pixel type solid-state image sensor with a square pixel array and 2.40 M effective pixels. This chip operates with analog 3.3 V, digital 1.1 v, and interface 1 .8 V triple power supply, and has low power consumption, High sensitivity, low dark current and no smear are achieved through the adoption of R, G and B primary color mosaic filters, This chip features an electronic shutter with variable

charge-integration time.

(Application: Security cameras)

2.Specifications and features.

Total height: 24.4±0.2mm

Base size: 16.54*16.54±0.2mm

Image size: 1920*1080

IR filter: 650 Chip parameters.

◆CMOS active pixel type dots

◆ Built-in timing adjustment circuit, H/ driver and serial communication circuit

◆input frequency:24 MHz/27 MHz/37.125 MHz/72 MHz /74.25 MHz

◆Number of recommended recording pixels: 1920 (H)x 1080 (V)approx. 2.07M pixel

◆Readout mode

All-pixel scan mode

Horizontal / Vertical 2/2-ine binning mode

Window cropping mode

Horizontal / Vertical direction -Normal / Inverted readout mode

◆Readout rate

Maximum frame rate in

All-pixel scan mode; 12 bit: 60 frame/s, 10 bit: 90 frame/s

◆High dynamic range (HDR) function

  Digital overlap HDR

   Clear HDR

◆Synchronizing sensors function

◆Variable-speed shutter function (resolution 1H unit)

◆10-bit/12-bit A/D converter

◆Conversion gain switching (HCG Mode / LCG Mode)

◆CDS /PGA function

0 dB to 30 dB : Analog Gain 30 dB (step pitch 0.3 dB)

30.3 dB to 72 dB : Analog Gain 30 dB + Digital Gain 0.3 dB to 42 dB (step pitch 0.3 dB)

◆Supports I/O

CSi-2 serial data output (2 Lane / 4 Lane) RAW10 / RAW12 output

1. Face recognition system: Used in face recognition systems to provide high definition images and enhance recognition accuracy

2. Action camera: Used for outdoor sports cameras to capture dynamic scenes, suitable for extreme sports recording

3. Astrophotography: Used in astrophotography to capture high definition images of starry skies and celestial bodies
