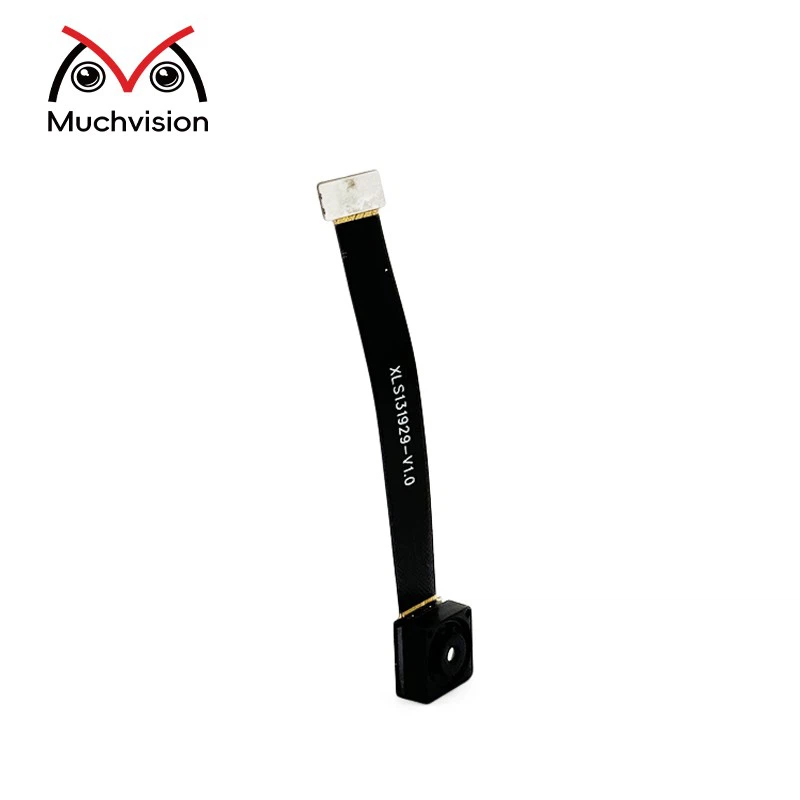

IMX258 13MP Camera Module Exmor RS™ HDR 4208×3120 High-Resolution MIPI CSI-2 Sensor for Mobile Devices

The IMX258 camera module is a 13MP CMOS sensor featuring Sony Exmor RS™ back-illuminated technology, designed for high-speed, high-sensitivity imaging with low noise. The sensor supports HDR mode, capturing richly detailed images in complex lighting conditions.

It delivers full-resolution still images at 30fps and 4K2K video recording at 30fps, making it versatile for mobile devices, tablets, VR/AR systems, and pet monitoring cameras. The module supports MIPI CSI-2 2-lane/4-lane interface, with pixel binning and sub-sampling capabilities for flexible image processing.

13MP High Resolution: Captures sharp and detailed images at 4208×3120 pixels

Exmor RS™ Back-Illuminated Sensor: High sensitivity with low noise

HDR Mode: Ensures high-quality imaging under complex lighting conditions

4K2K Video Recording @30fps: Supports smooth, high-resolution video capture

1. Product introduction.
IMX258-0AMH5-C is a diagonal 5.867mm (Type 1/3.06) 13 Mega-pixel CMOS active pixel type stacked image sensor with a square pixel array. lt adopts Exmor RS™ technology to achieve high speed image capturing by column parallel A/D converter circuits and high sensitivity and low noise image (comparing with conventional CMOS image sensor sensor) through the backside illuminated imaging pixel structure. By introducing spatially varying exposure technology, high dynamic range still pictures and movies are achievable. It equips an electronic shutter with variable interface and achieves low power consumption.
In addition, this product is designed for use in cellular phone and tablet pc. When using this for another application,Sony does not guarantee the quality and reliability of product. Therefore, don't use this for applications other than cellular phone and tablet pc. Consult your Sony sales representative if you have any questions.

2.Specifications and features.
Total height: 4.8±0.2mm
Base size: 8.5*8.5±0.2mm
Image size: 4208*3120
IR filter: 650
Chip parameters.

●Back-illuminated and stacked CMOS image sensor Exmor RS™
●High Dynamic Range (HDR) mode with raw data output.
●High signal to noise ratio (SNR).
●Full resolution @30fps (Normal / HDR).4K2K @30fps (Nomal / HDR) 1080p @60fps (Normal )
●Output video format of RAW10/8.
●Pixel binning readout and V sub-sampling function.
●Independent flipping and mirroring.
●CSl-2 serial data output (MlPl 2lane/4lane, Max. 1.3Gbps/lane, D-PHY spec. ver. 1.1 compliant)
●2-wire serial communication.
●Dynamic Defect Pixel Correction.
●Fast mode transition. (on the fly)
●Dual sensor synchronization operation.
●4K bit of OTP ROM for users.
●Built-in temperature sensor

1. Pet monitoring cameras: Used for pet monitoring, allowing pet owners to view their pets' activities and health remotely

2. Virtual Reality (VR) : For virtual reality devices that provide the high-quality image capture required for immersive experiences

3. Augmented Reality (AR) : for augmented reality applications that combine real world and virtual information to provide an enhanced visual experience
