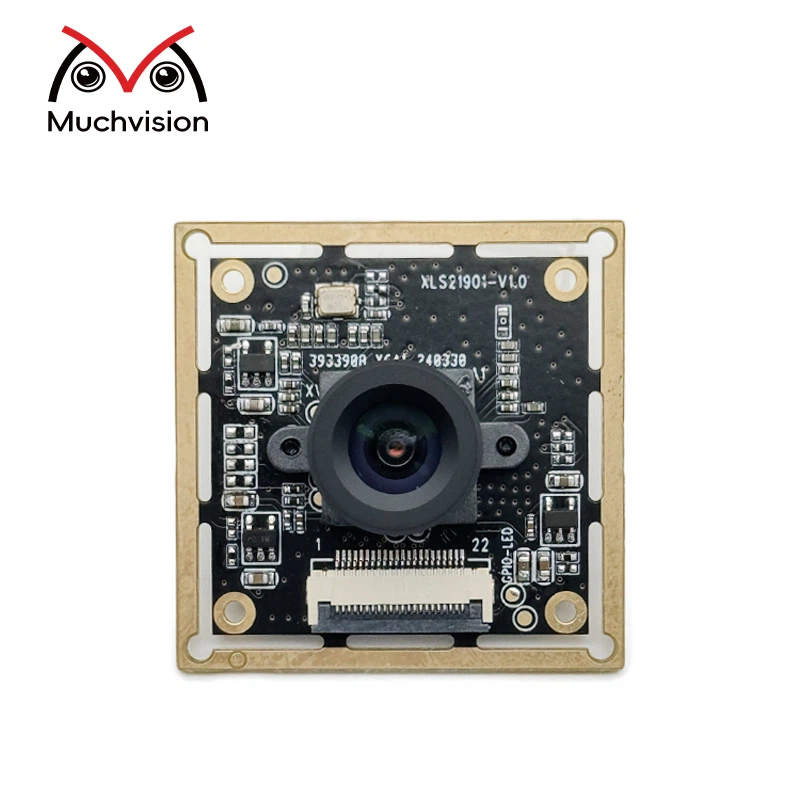

IMX577 2MP 120fps Camera Module Full HD 1080p Wide Dynamic Range WDR High-Speed Imaging for Robotics

The IMX577 camera module features a 1/3.5-inch CMOS image sensor capable of 2.07MP resolution and 1080p video at 120fps. It supports wide dynamic range (WDR) with multiple exposure and digital overlap modes for high-quality imaging in challenging lighting conditions.

Equipped with MIPI CSI-2 interface, the module integrates easily into embedded systems, robotics, sports cameras, and video conferencing devices. Its high-speed imaging and variable shutter control allow accurate capture of fast-moving objects.

1080p Full HD Resolution: Clear and detailed imaging for video and still capture

High Frame Rate 120fps: Smooth motion capture for fast-moving objects

Wide Dynamic Range (WDR): Excellent imaging in varied lighting conditions

MIPI CSI-2 Interface: Easy integration with embedded systems and robotics

1. Product Introduction
◆CMOS active pixel type dots
◆Built-in timing adjustment circuit, H/ driver and serial communication circuit
◆Input frequency: 74.25 MHz/ 37.125 MHZ
◆Number of recommended recording pixels: 1920 (H)x 1080 (V) approx 2.07M pixel

◆Readout mode
All-pixel scan mode
720p-HD readout mode
Window cropping mode
Vertical / Horizontal direction-normal / inverted readout mode

◆Readout rate Maximum frame rate in Full HD 1080p mode: 120 frame / s
◆Wide dynamic range (WDR) function Multiple exposure WDR
  Digital overlap WDR

◆Variable-speed shutter function (resolution 1H units)
◆10-bit/ 12-bit AD converter
◆Conversion gain switching (HCG Mode / LCG Mode)

◆CDS/PGA function
  0 dB to 30 dB: Analog Gain 30 dB (step pitch 0.3 dB)
  30.3 dB to 63 dB: Analog Gain 30 dB + Digital Gain 0.3 to 33 dB (step pitch 0.3 dB)

◆Supports l/O switching
  CMOS logic parallel SDR output
  Low voltage LVDS (150 m Vp-p) serial ( 2 ch /4 ch switching) DDR output
  CS1-2 serial data output ( 2 Lane /4 Lane, RAWV10 / RAWV12 output)
◆Recommended exit pupil distance:-30 mm to -∞

2.Specifications and features.

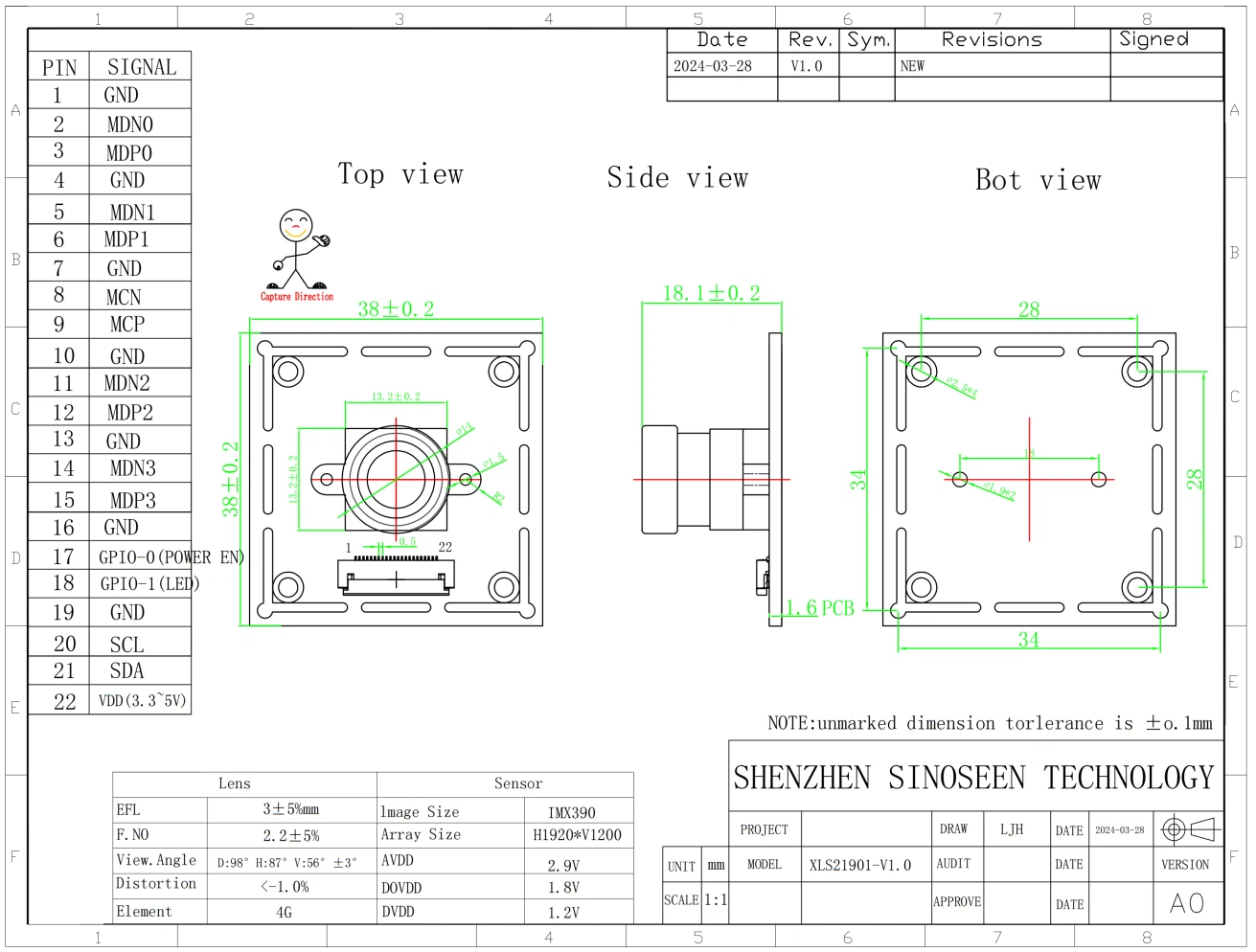

Total height: 18.1±0.2mm
Base size: 13.2*13.2±0.2mm
Image size: 1920*1080
IR filter: 650
Chip parameters.

◆CMOS image sensor
◆lmage size
  Type 1/2.8

◆Total number of pixels
  1945 (H)x 1109 (V) approx. 2.16 M pixels

◆Number of effective pixels
  1945 (H) x 1097 (V) approx. 2.13 M pixels

◆Number of active pixels
  1937 (H) x 1097 (V) approx. 2.12 M pixels

◆Number of recommended recording pixels
  1920 (H) x 1080 (V) approx. 2.07 M pixels

◆Unit cell size
  2.9 μm (H) x 2.9 μm (v)

◆Optical black
  Horizontal (H) direction: Front 0 pixels, rear 0 pixels
  Vertical (v) direction: Front 10 pixels, rear 0 pixels

◆Dummy
  Horizontal (H) direction: Front 0 pixels, rear 3 pixels
  Vertical (w) direction: Front 0 pixels, rear 0 pixels

◆Substrate material
  Silicon

1. Automated robots: Integrated into automated robots to provide visual support and improve the navigation and operation capabilities of robots

2. Sports photography: Used in sports photography to capture the high-speed movements of athletes and provide moving images

3. Video conferencing system: Used for video conferencing systems to provide a clear video call experience

Hot Tags: IMX577 camera module, 1080p 120fps camera, 2MP high-speed camera, WDR camera sensor, full HD camera module, MIPI CSI-2 camera, robotics camera, sports imaging camera
