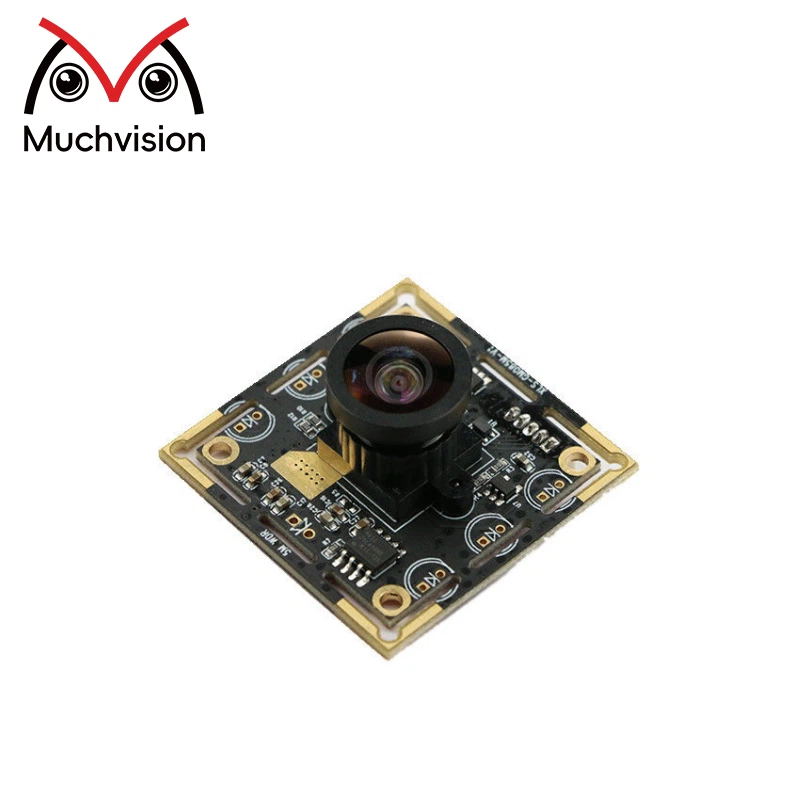

Usb IMX335 Sensor Night Vision Camera Module
|
Module Number |
SNS-5MP-IMX335-S1 |
Sensor |
1/2.8" SONY IMX335 CMOS |
|
Resolution |
5MP 2592(H) X 1944(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
USB2.0 |
Feature |
Starvis |
Products Description
The USB IMX335 camera module is built with a 1/2.8-inch Sony STARVIS™ IMX335 CMOS sensor, delivering 5MP (2592x1944) high-definition color images with remarkable clarity. Its starlight-level low-light performance ensures reliable imaging even in near-darkness, making it ideal for security surveillance, industrial automation, robotics, and machine vision applications.
The IMX335 belongs to Sony's STARVIS™ family, designed specifically for superior low-light sensitivity. With up to 72dB wide dynamic range (WDR) and advanced HDR technology, the module captures enhanced details in high-contrast environments, avoiding overexposure and underexposure issues.
Compact and UVC-compatible, this camera module integrates easily with Windows, Linux, macOS, and Android platforms, supporting flexible system integration for B2B and embedded vision projects.
Highlights
Sony IMX335 STARVIS™ CMOS sensor
5MP (2592x1944) high-definition resolution
Superior starlight low-light imaging for night vision
Wide dynamic range (WDR) up to 72dB
Advanced HDR & digital HDR stacking for detail-rich images
USB 2.0 interface, UVC plug-and-play support
Specification
|
Model No |
SNS-5MP-IMX335-S1 |
|
Sensor |
1/2.8'' SONY IMX335 CMOS |
|
Pixel |
5 Mega Pixel |
|
Most effective pixels |
2592(H) x 1944(V) |
|
Pixel Size |
2.0µm x 2.0µm |
|
Chroma |
Color |
|
Compression format |
MJPEG / YUV2 (YUYV) |
|
Resolution & Frame rate |
See above |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus |
|
Microphone |
Built-in |
|
Dynamic range |
72dB |
|
Sensitivity |
>= 2000mV |
|
Interface type |
USB2.0 high speed |
|
Adjustable parameter |
Brightness/Contrast/Color saturation/Hue/Definition/ |
|
Lens |
Focal length: 3.6MM |
|
Lens Size: 1/2.8 inch |
|
|
FOV: 90° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 150mA |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (compatible with 32mm*32mm) |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
