IMX327 1080p 2mp 30fps Camera Module Main parameters
|
Module Number： |
SNS-DZ1142-V1.0 |
Sensor: |
1/2.8"CMOS imx327 |
|
Resolution: |
1920*1080 |
Dimension: |
Customized |
|
Len FoV: |
96°(option) |
Focus Type: |
Manual focus |
|
Interface: |
USB |
Feature: |
HD,WDR |
Products Description
The IMX327 1080p USB camera module adopts Sony's 1/2.8" CMOS image sensor, delivering 1920×1080 resolution at 30fps with outstanding low-light sensitivity and wide dynamic range (WDR). It ensures high-quality, true-color imaging across both bright and dark environments.
This camera module supports USB 2.0 plug-and-play, outputting MJPG/YUV video and raw 10-bit image data. With manual focus and a 96° field of view, it provides flexible performance for various machine vision and imaging applications.
The compact, customizable design makes it suitable for video streaming, conferencing systems, security surveillance, educational devices, ATMs, and industrial inspection.
Features
Full HD 1080p Resolution: 1920×1080 video capture at 30fps
Excellent Low-Light Performance: Clear imaging in challenging environments
Wide Dynamic Range (WDR): High-quality images in high contrast lighting
USB2.0 Interface: High-speed 480MB/s transfer, plug-and-play

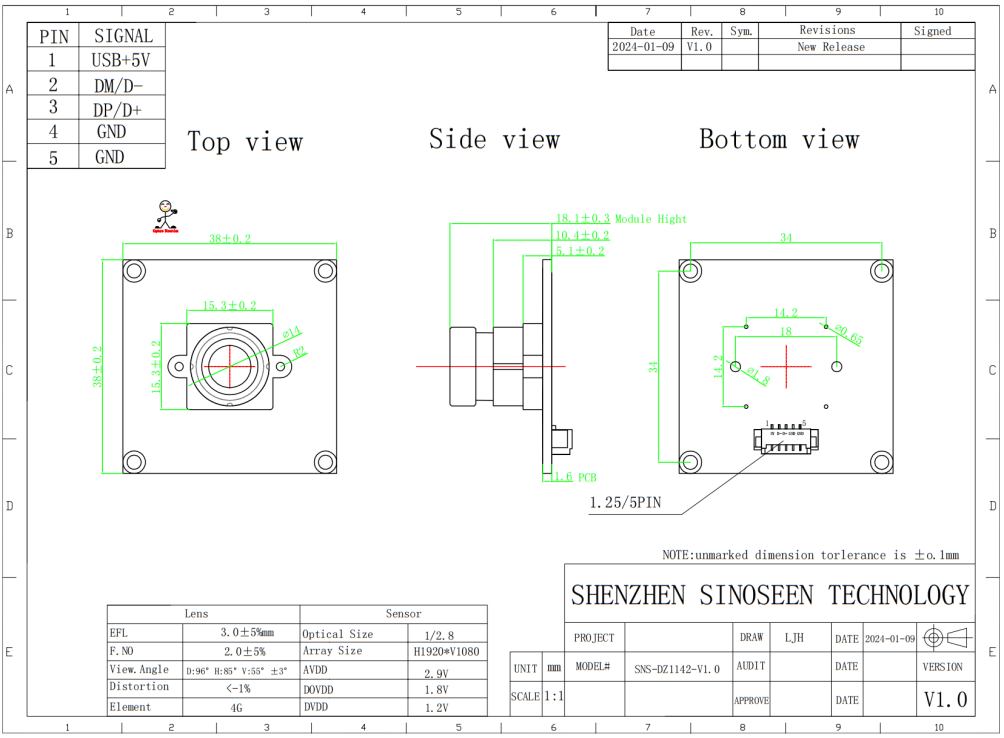

Product structure
Specification
|
Signal |
SNS-DZ1142-V1.0 |
REMARKS |
|
|
Image Sensor Size |
1/2.8"CMOS |
||
|
Effective Pixels |
1920*1080 |
|
|
|
Pixel size |
2.9um*2.9um |
|
|
|
Optical distortion |
<-1% |
|
|
|
Image sensor Data output |
Raw Data 10bits |
|
|
|
Video output |
MPJG/YUV |
|
|
|
Maximum Frame Rates |
1920*1080 30FPS 1280*960 30FPS 1280*720 30FPS 1024*768 30FPS 800*600 30FPS 640*480 30FPS 320*240 30FPS |
MJPG |
|
|
SNR max |
TBD |
|
|
|
Dynamic range |
TBD |
|
|
|
Min. Illumination |
TBD |
||
|
Digital interface |
5pin 1.25mm USB2.0 |
Cable length 1.5 meters |
|
|
Transfer rates |
480MB/S |
|
|
|
Power requirements |
5V±5% |
|
|
|
Storage temperature |
-20℃to70℃ |
|
|
|
operating temperature |
-30℃to70℃ |
|
|
|
Power Consumption |
NO LED |
/ |
|
|
IR-LED |
/ |
|
|
|
PCB printig ink |
black |
||
|
OS |
Windows XP /vista/seven/8.1/10/Mac /Android/linux2.6.2(include UVC ) |
|
|
|
Lens view |
M12*P0.5 |
LENS |
|
|
Lens Construction |
4G |
|
|
|
F/NO |
2.0±5% |
|
|
|
EFL |
3.0 mm±5% |
|
|
|
FOV |
D:96°±3° |
|
|
|
Focusing method |
Manual |
|
|
|
Shooting distance |
60cm-∞ |
|
|

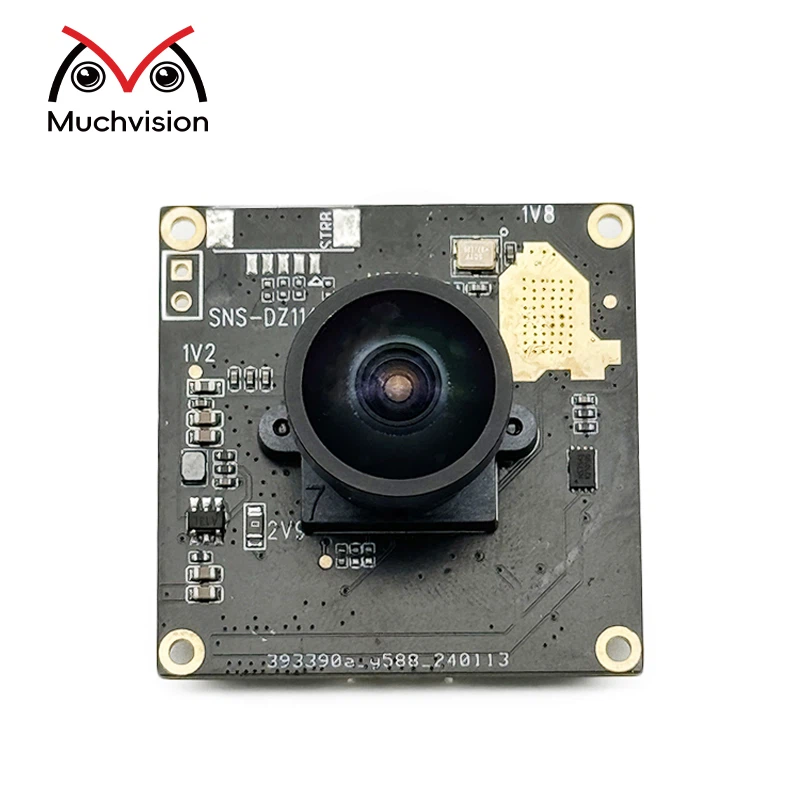

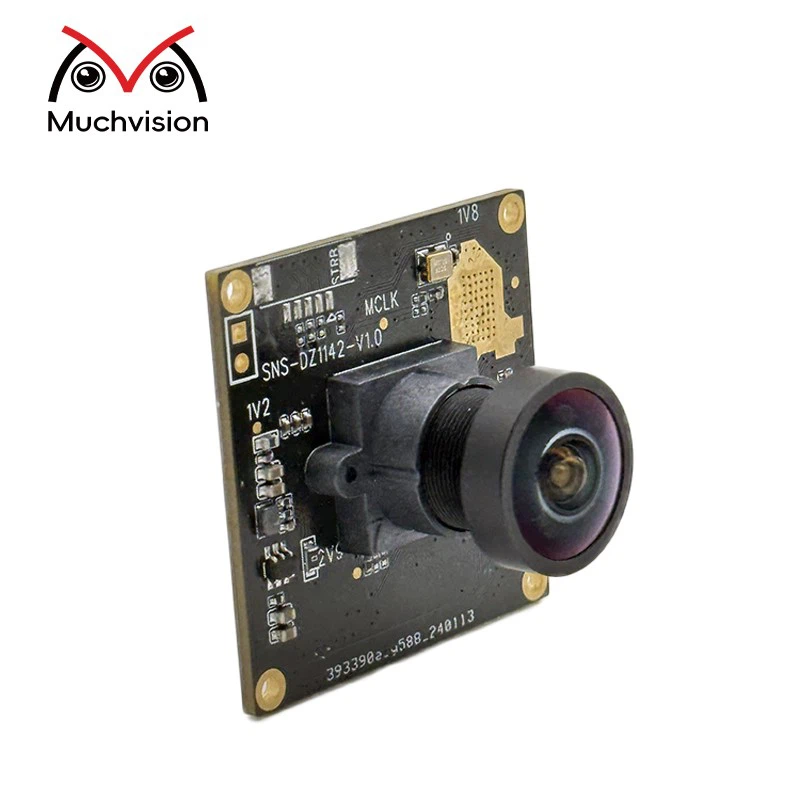

Product Picture
Application areas of camera modules
1. Ship monitoring system: Used for ship monitoring to ensure navigation safety and monitor ship status
2. Astronomical telescopes: Integrated with astronomical telescopes to capture images of distant galaxies and celestial bodies
3. Industrial X-ray inspection: Used for industrial X-ray inspection to detect internal defects of products and improve product quality
