60fps 2MP OV2312 MIPI Camera module Main parameters
|
Module Number |
|||
|
Module Number |
CK-21854-V1.0 |
Sensor |
OV2312 |
|
Resolution |
2mp |
Dimension |
Customizable |
|
Lens FOV |
85 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Global Shutter |
Products Description
This camera module has a resolution of 1600 x 1300 pixels, which is a 2MP image resolution. The key highlight of this module is its high frame rate of 60 FPS, which can be particularly useful for applications that require capturing fast-moving subjects or need high-speed video capture.
The MIPI interface allows for easy integration of this camera module with compatible host processors, making it suitable for a variety of mobile devices, embedded systems, and other applications where a compact, high-performance camera solution is required.
The compact design of this module is an important feature, as it enables seamless integration into space-constrained devices and systems.
Features
High-speed 60fps imaging for capturing fast-moving subjects
2MP resolution at 1600×1300 pixels for clear and detailed images
Global Shutter prevents motion blur in dynamic scenes
MIPI interface enables easy integration with host processors
Compact design suitable for mobile devices, embedded systems, and industrial equipment
Product structure
Specification
Product introduction
●3 um x 3 μm pixel with OmniPixel®3-GS technology
●automatic black level calibration (ABLC)
●programmable controls for frame rate, mirror and flip,
cropping and windowing
●support output formats: RGB-|r RAW 4x4 pattern
●fast mode switching
●two-lane MlPl serial output interface
●DVP parallel output interface
●support for image sizes:1600x 1300 and 1280 x720
●built-in strobe control
●embedded 128 bytes of one-time programmable
(OTP)memory
●two on-chip phase lock loops (PLLs)
●temperature sensor
●LED PWM
●low power modes
●frame sync mode
●advanced ASlL safety features
2.Specifications and features.
Total height: 8.9±0.2mm
Base size: 10*10±0.2mm
Image size: 1600*1300
IR filter: 650
Chip parameters.
●active array size: 1600 x1300
●power supply:
analog:2.8V (nominal)
core: 1.2V(nominal)
1/0: 1.8V (nominal)
●power requirements:
active: 190 mW
XSHUTDOWN:<25 μA
●temperature range:
operating:-40'C to +105°C sensor ambient
temperature and -40'C to 125'C junction
temperature(see table 9-2)
●output interface: 2-ane MlPl serial output and DVP
parallel output
●output formats: 10-bit RGB-Ir RAW
●lens size: 1/2.9'
●input clock frequency: 6~27 MHZ
●lens chief ray angle: 15° linear
●max S/N ratio: 37.4 dB
●dynamic range: 68 dB
●maximum image transfer rate:
1600 x1300: 60 fps (see table 5-1)
●sensitivity:
114Ke/(uW.cm2.sec) @ 850 nm
54Ke/(uW.cm.sec) @ 940 nm
●minimum exposure time: 1 row period
●maximum exposure time: frame length - 12 row
periods, where frame length is set by registers
{0x380E,0x380F}
●pixel size: 3 μm x 3 um
●image area: 4857.7 um x 3955.9 um
●package dimensions: 7219 μm x 6157 μm

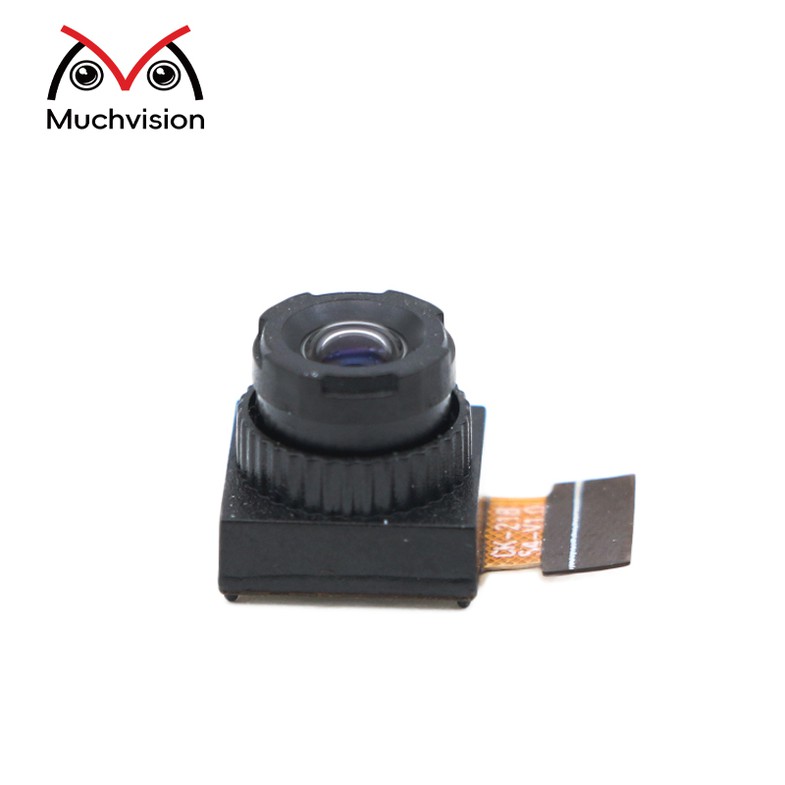

Product Picture
Application areas of camera modules
1. Microscope camera: Integrated with a microscope to capture high definition images of the microscopic world for research and education
2. Traffic monitoring: Used for traffic monitoring, monitoring traffic flow and road safety, reducing traffic accidents
3. Industrial testing equipment: Used for industrial testing equipment to detect product defects and improve product quality
