GC4653 4mp MIPI Camera Module Main parameters
|
Module Number |
DSJ-J1_G0.1 |
Sensor |
GC4653 |
|
Resolution |
2k 4mp |
Dimension |
Customizable |
|
Lens FOV |
128 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Compact dimension |
Products Description
The GC4653 MIPI camera module integrates a 1/3-inch CMOS sensor with 4MP resolution (2560×1440), delivering clear and detailed images. It features electronic rolling shutter technology, ensuring sharp, stable visuals in various lighting conditions.
Equipped with a MIPI 2-lane interface, this camera module provides efficient and seamless data transfer, enabling easy integration into mobile devices, embedded systems, and industrial applications.
Its compact dimension allows installation in tight spaces, making it suitable for a range of applications including automated robots, sports photography, and video conferencing systems.
The module supports 12/10-bit raw data output, operates at 30fps, and offers high sensitivity and wide dynamic range for reliable imaging performance in diverse environments.
Advantages
High-resolution 4MP sensor for detailed imaging at 2560×1440 pixels
Electronic rolling shutter for stable, blur-free captures
MIPI 2-lane interface ensures efficient and fast data transfer
Compact design fits easily into embedded systems and space-constrained devices
Product structure
Specification
1.Product introduction.
●Standard optical format of 1/3 inch
●2.0um x 2.0um BSI pixel
●Output formats: Raw Bayer 12bit/10bit
●Power supply requirement: AVDD28:2.7~2.9V(Typ2.8V)
DVDD: 1.15~1.25V(Typ1.2V)
IOVDD: 1.7~1.9V(Typ1.8V)
●PLL support
●Support for frame sync
●MIPl(2 lane) interface support
●Horizontal/Vertical mirror
●Image processing module
●OTP support (2Kbits total)
●Package: CSP
2.Specifications and features.
Total height: 16.3±0.3mm
Base size: 20.2*20.05±0.2mm (steel sheet: 27.6*21±0.2)
Image size: 2560*1440
IR filter: 650
Chip parameters.
|
Parameter |
Typical value |
|
Optical Format |
1/3 inch |
|
Pixel Size |
2.0μm x2.0μm(BSI) |
|
Active pixel array |
2560x 1440 |
|
Shutter type |
Electronic rolling shutter |
|
ADC resolution |
12/10-bit ADC |
|
Max Frame rate |
30fps@full size |
|
Power Supply |
AVDD28:2.8V |
|
Power Consumption |
120mW@30fps |
|
Max Optical lens chief ray angle(CRA) |
10(linear) |
|
Sensitivity |
2.4V/Lux.S |
|
Dynamic range |
81dB |
|
SNR |
38dB |
|
Operating temperature: |
-20～80℃ |
|
Stable Image temperature |
0~60℃ |
|
Package type |
41PIN-CSP |

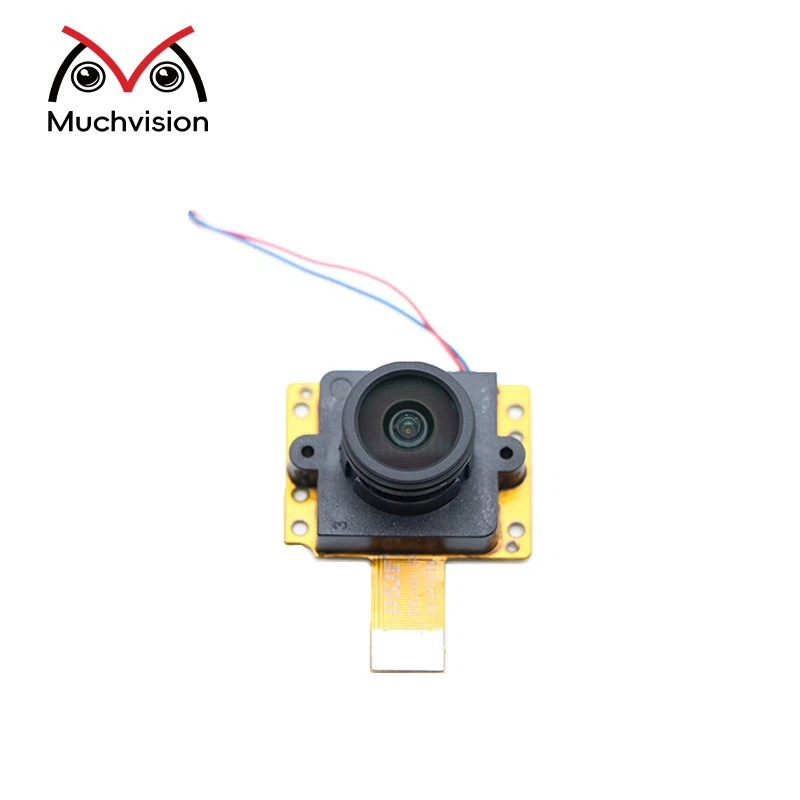

Product Picture
Application areas of camera modules
1. Automated robots: Integrated into automated robots to provide visual support and improve the navigation and operation capabilities of robots
2. Sports photography: Used in sports photography to capture the high-speed movements of athletes and provide moving images
3. Video conferencing system: Used for video conferencing systems to provide a clear video call experience

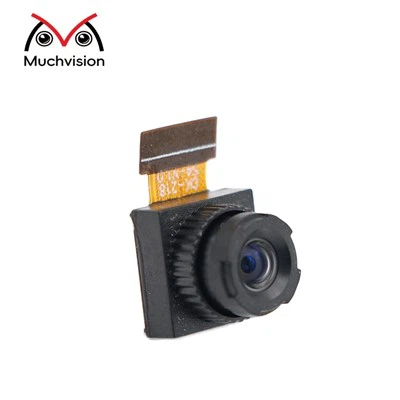

Hot Tags: GC4653 camera module, 4MP MIPI camera, compact camera module, electronic rolling shutter camera, high-resolution camera, robotics camera, sports photography camera, 60fps 2MP OV2312 MIPI Camera Module, fpc camera module, 8M Imx219 Fpc Camera Module
