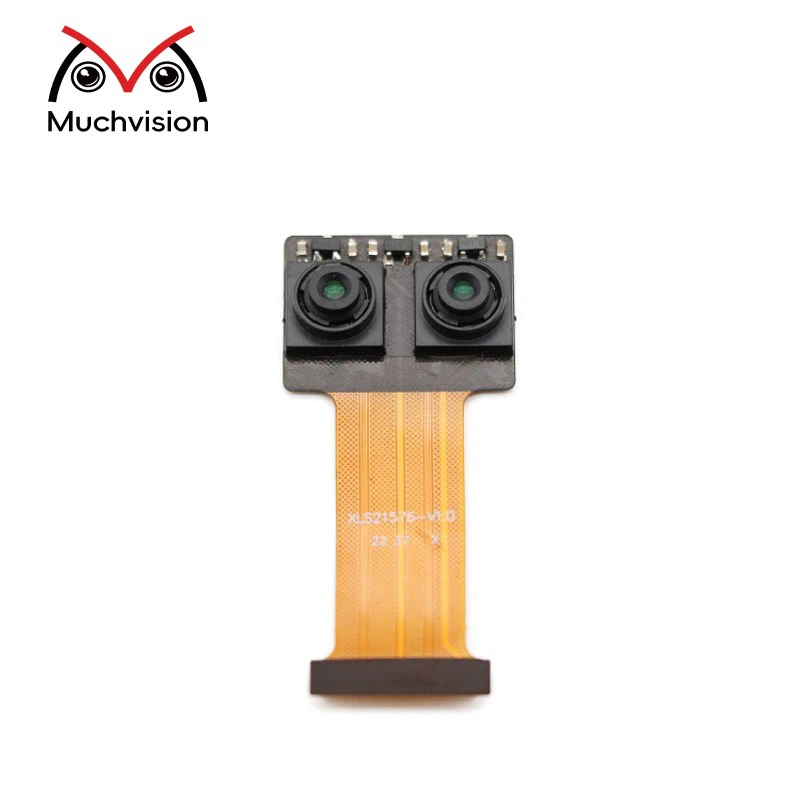

Dual Lens 2MP SC2310CS MIPI Camera Module with 850+650nm IR Filters for High-Performance Imaging

The Dual Lens SC2310CS 2MP camera module integrates two high-performance CMOS sensors, each providing 2MP resolution (1932×1092) for detailed and clear imaging. Designed with 850+650nm IR filters, this dual-lens module ensures superior performance in varied lighting conditions, including low-light and near-infrared applications.

The module supports MIPI interface at 60fps and DVP interface at 30fps, allowing flexible integration into a variety of devices and systems. Its low power consumption and compact form factor make it suitable for space-constrained applications in mobile devices, embedded systems, and industrial solutions.

Dual 2MP lenses for enhanced imaging capability

High frame rate: 60fps MIPI, 30fps DVP

850+650nm IR filters for low-light and infrared applications

Compact and low-power design suitable for embedded systems

Programmable image parameters for optimized imaging performance

Total height: 5.5±0.3mm *2
Base size: 10×10±0.15mm *2 (steel sheet: 23.6*18)
Image size: 1932*1092 *2
IR filter: 850/650
Chip parameters.


● Thin Z-height form factor designed for video applications

● Consumer desktop products

● TV panels

● High light sensitivity
● Externally controlled frame rate and multi-sensor synchronization
● 43x analog gain, 32x digital gain
●Horizontal/vertical window adjustment
●Horizontal/vertical window flip
● 2×2 bimning mode
● High dynamic range

■ Row overlap wide dynamic range
● High signal-to-noise ratio
● FC interface register programming ● Low power consumption
Key indicators (typical values)
● Resolution: 2 million
● Pixel array: 1932H×1092V
● Pixel size: 3.0μmx3.0μm
● Lens optical size: 1/2.7
● Maximum image transmission rate:
1920×1080@60tps(MIPI)
1920×1080@30fps(DVP)

● Output interface:
12-bit DVP
12/10/8-bit@1/2Lane MPI
● Output format: RAW RGB
● CRA: 34.5°
● Sensitivity: 4800 mVlux ·s

● Dynamic range:
Wide dynamic mode: >100dB
Linear mode: 82 dB
● Signal-to-noise ratio: 43 dB
● Operating temperature range: -30℃~+85℃
● Optimum operating temperature range: -20℃~+60℃

● Power supply voltage:
    Analog=2.8V±0.1V
    Digital=1.5V±0.1V
    I/O=1.8V±0.1V

● Packaging information: CO8


1. Intelligent Transportation System: Used for intelligent transportation systems to monitor traffic conditions and optimize traffic flow

2. Environmental monitoring camera: Used for environmental monitoring, capture environmental changes, protect the natural ecology

3. Agricultural monitoring: Used for agricultural monitoring, monitoring crop growth conditions, improve agricultural production efficiency
