SP250 2mp FOV100 mipi Camera Module Main parameters
|
Module Number |
XLS21818-V1.0 |
Sensor |
SP250 |
|
Resolution |
2mp |
Dimension |
Customizable |
|
Lens FOV |
77 (Optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Small size structure |
Products Description
The SP250 2MP MIPI camera module provides clear images with 1600×1200 resolution. The 100° wide-angle lens captures a broad field of view.
It has a fixed-focus design and supports 30fps video, ensuring smooth video for real-time applications.
The module uses a MIPI 1-lane interface for fast and efficient data transfer. It is compact and consumes low power, making it ideal for embedded systems, VR devices, AR applications, and pet monitoring cameras.
It supports UXGA and SVGA resolutions, mirror and flip functions, digital and analog gain, and 10-bit raw output. These features allow flexible integration into various devices.
Advantages
2MP resolution with 1600×1200 pixel images
100° wide-angle lens for a broad field of view
Low power consumption: Active <100mW, Standby 50μA
Compact design: 6.5×6.5×4.3mm CSP package
High-speed MIPI 1-lane interface supporting 30fps video

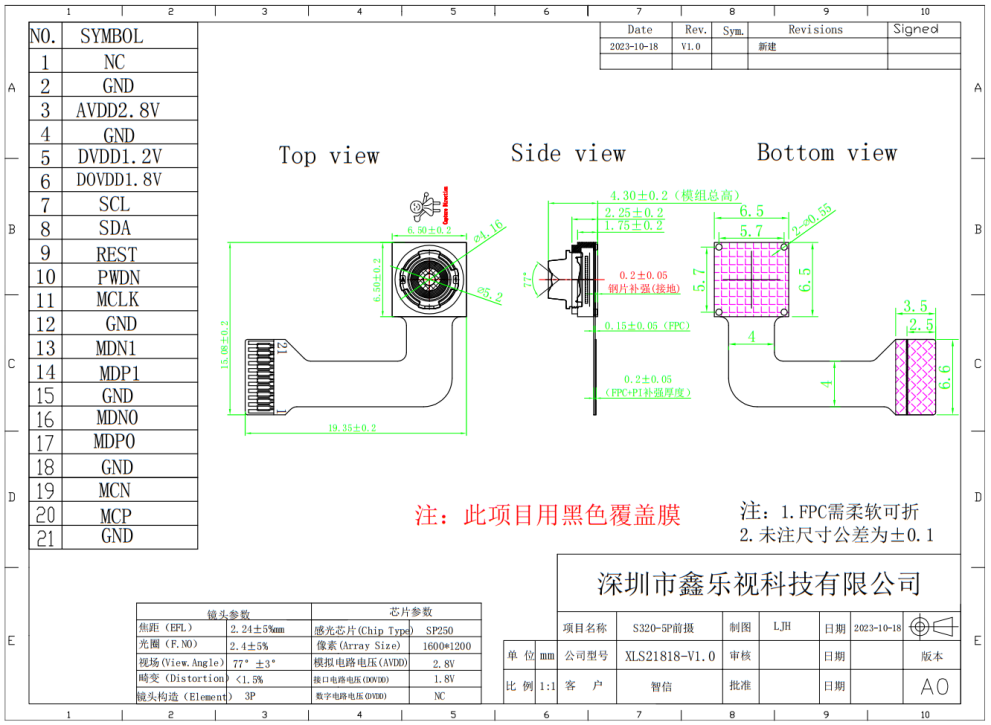

Product structure
Specification
1.Product introduction
●Support UXGA (2Mega, 1600x1200) resolution
●Support SVGA(0.48Mega, 800x600) resolution
●Support mirror and up-down function
●Support black level calibration
●Support black sun cancellation
●Support digital gain/ analog gain
●Support 2x2 binning function
●Support 10-bit raw image data output
●PC bus controlling registers inside chip
●Support MIPI 1 lane interface
●Support dual camera function
2.Specifications and features.
Total height: 4.3±0.2mm
Base size: 6.5*6.5±0.2mm
Image size: 1600*1200
IR filter: 650
Chip parameters.
|
Parameter |
Value |
|
|
Active Pixel Array |
1600x1200 |
|
|
Pixel Size |
1.65um x1.65um |
|
|
Lens Size |
1/5 inch |
|
|
Color Filter |
Primary Color Filter |
|
|
Power Supply |
I/O |
1.7V-3.0V |
|
Analog |
2.6V-3.0V |
|
|
Power Consumption |
Active |
<100mW |
|
Standby |
50uA |
|
|
Data Formats |
Raw10 |
|
|
Output Formats |
MHPI1 lane |
|
|
Input Clock |
6-30 MHz |
|
|
Max.Frame Rate |
30fps@1600x1200 Mode |
|
|
Operating Temperature |
20°℃-70°℃ |
|
|
Stable Temperature |
0℃-50℃ |
|
|
Package |
CSP |
|
Product Picture
Application areas of camera modules
1. Pet monitoring cameras: Used for pet monitoring, allowing pet owners to view their pets' activities and health remotely
2. Virtual Reality (VR) : For virtual reality devices that provide the high-quality image capture required for immersive experiences
3. Augmented Reality (AR) : for augmented reality applications that combine real world and virtual information to provide an enhanced visual experience
