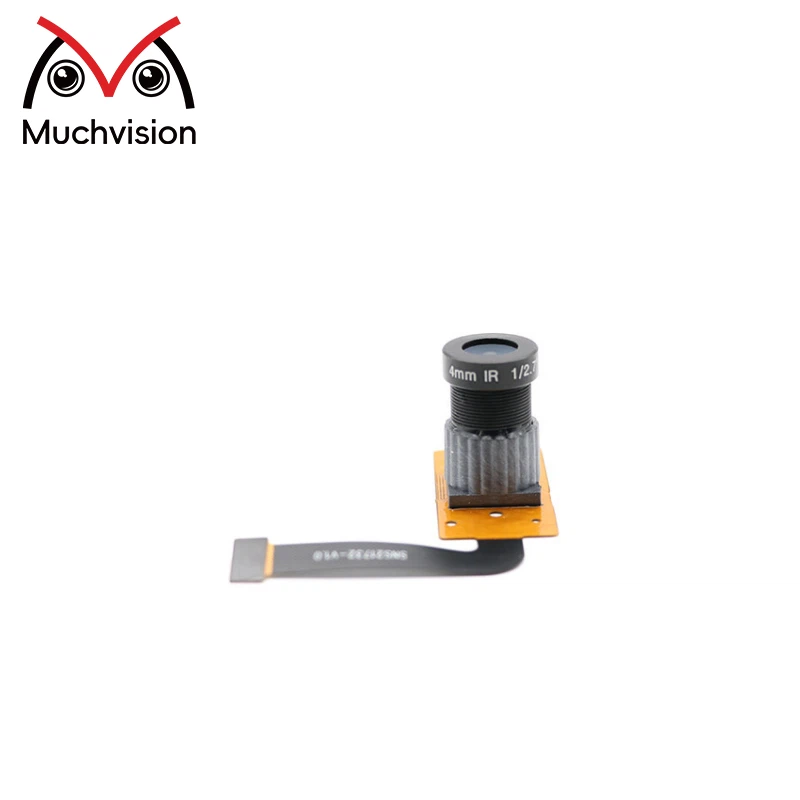

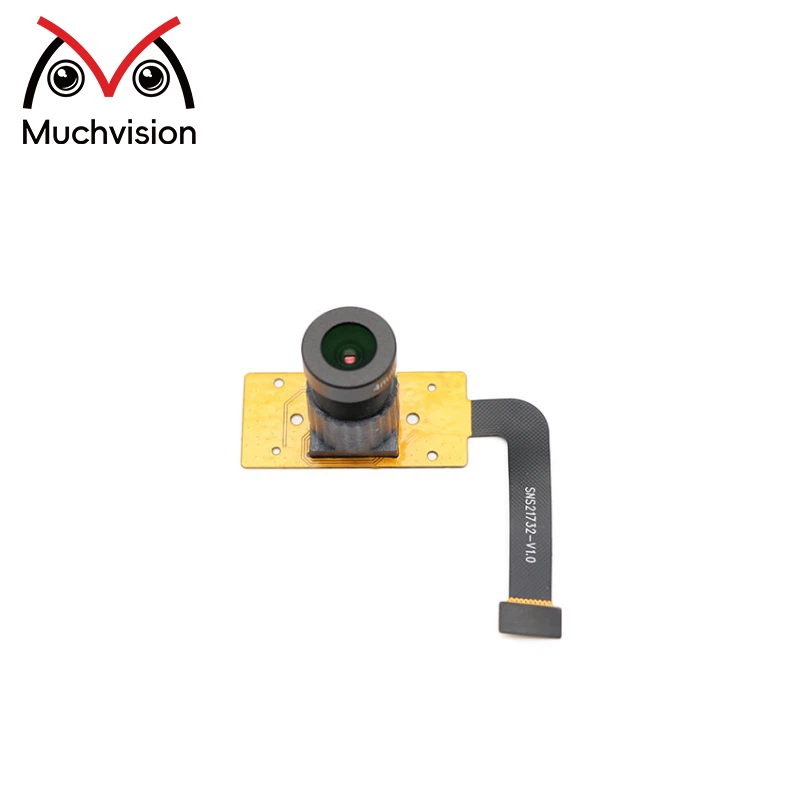

2MP 1080P MIPI Camera Module GC2053 CMOS
|
Module Number |
SNS21732-V1.0 |
Sensor |
1/2.9'' GC2053 |
|
Resolution |
1920(H) X 1080(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Low Power Consumption |
Products Description
The GC2053 2MP MIPI camera module provides full HD 1080P video and high-quality images while maintaining low power consumption, making it ideal for battery-powered devices.
Equipped with a fixed-focus lens, this module simplifies camera design and is perfect for applications with fixed shooting distances. Its compact, customizable size allows easy integration into wearables, IoT products, mobile devices, drones, and medical equipment.
Using the MIPI interface, the module ensures high-speed, reliable data transmission with minimal power usage, enabling real-time imaging for embedded applications.
Highlights
Low Power Consumption: Extend battery life in wearables, IoT, and mobile devices.
MIPI Interface: High-speed data transfer with efficient power usage.
Full HD 1080P: Capture clear video at 30 frames per second.
Fixed Focus Lens: Simplifies integration for devices with fixed shooting distances.
Customizable Size: Flexible module dimensions for a variety of compact products.
Specification
|
Parameter |
Typical value |
|
Optical Format |
1/2.9inch |
|
Active pixel array |
1920*1080 |
|
Pixel Size |
2.8um*2.8um |
|
Shutter type |
Electonic rolling shutter |
|
ADC resolution |
10 bit ADC |
|
Max Frame rate |
30fps@full size |
|
Power Supply |
AVDD28:2.8V |
|
DVDD:1.2V |
|
|
IOVDD:1.8V |
|
|
Power Consumption |
TBD |
|
SNR |
TBD |
|
Dark Current |
TBD |
|
Sensitivity |
TBD |
|
Dynamic range |
TBD |
|
Operating temperature: |
-20°C to 80°C |
|
Stable Image temperature |
0°C to 60°C |
|
Optimal Lens chief ray angle(CRA) |
12(linear) |
|
Package type |
CSP |
|
Input clock frequency |
6-27MHz |
