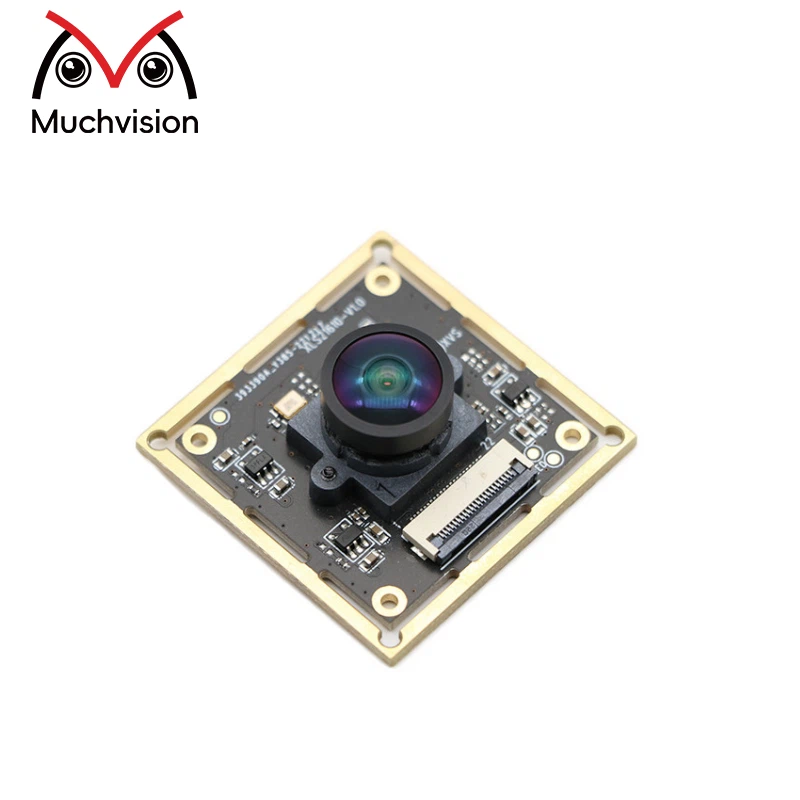

Night vision 1080p Module Sony IMX290
|
Module Number |
SNS-21610-V1.0 |
Sensor |
1/2.8" SONY IMX290 |
|
Resolution |
2MP 1920x1080 |
Dimension |
Customizable |
|
Lens FOV |
120°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Night Vision |
Products Description
The SONY IMX290 1080P camera module provides Full HD 1920x1080 resolution with excellent image quality in low-light conditions.
Equipped with large 2.9µm pixels, it delivers starlight-level night vision, making it suitable for surveillance, industrial monitoring, and security applications.
The module supports WDR (Wide Dynamic Range) to maintain details in high-contrast scenes, balancing bright and dark areas for clear imaging.
It captures smooth video at 60FPS, ensuring fluid motion in video streaming. The module uses a fixed-focus lens, with an optional 120° wide-angle M12 lens for broader coverage.
Compact and customizable design allows easy integration into various devices and industrial systems.
Highlights
SONY IMX290 sensor: Exceptional low-light performance with starlight night vision
2MP 1080P Full HD resolution: Clear and detailed video capture
WDR support: Balances light and dark areas in high-contrast scenes
60FPS high frame rate: Smooth video streaming
Optional 120° wide-angle lens: Expands field of view for monitoring
Compact, customizable module: Easy integration into devices
Specification
|
Pixel Size |
2.9µm x 2.9µm |
|
Image area |
1937(H) x 1097(V) |
|
Compression format |
MJPEG / YUV2/H.264 |
|
Resolution & Frame rate |
1920 x1080 @ 60fps 1280x960 @60fps 1280x720 @ 60fps 800x600 @ 60fps 640x480 @ 60 fps 320x240 @ 60fps |
|
Shutter Type |
Electronic rolling shutter |
|
Focus type |
Fixed focus/Manually adjustable |
|
S/N ratio |
52dB |
|
Dynamic range |
72dB |
|
Sensitivity |
7757 mV / lux-sec |
|
Interface type |
USB2.0 and SPI |
|
Adjustable parameter |
Brightness |
|
Lens |
Optical length: 18.6mm |
|
|
F/NO: 2.4 |
|
|
FOV: D=120° |
|
|
Thread Size: M12*P0.5 |
|
Audio frequency |
Optional |
|
Power supply |
USB BUS POWER |
|
Power consumption |
DC 5V, 260mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
NOT Support |
|
Auto White Balance (AEB) |
NOT Support |
|
Auto Gain Control (AGC) |
NOT Support |
|
Dimension |
38mm x 38mm |
|
Storage temperature |
-20°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
