Module Number |
SNS12190-V1.0 |
Sensor |
SC035HGS |
|
Resolution |
640×480 |
Dimension |
(customizable) |
|
Lens FOV |
88°(optional) |
Focus Type |
FF |
|
Interface |
MIPI |
Feature |
180FPS,face recognition |
Products Description

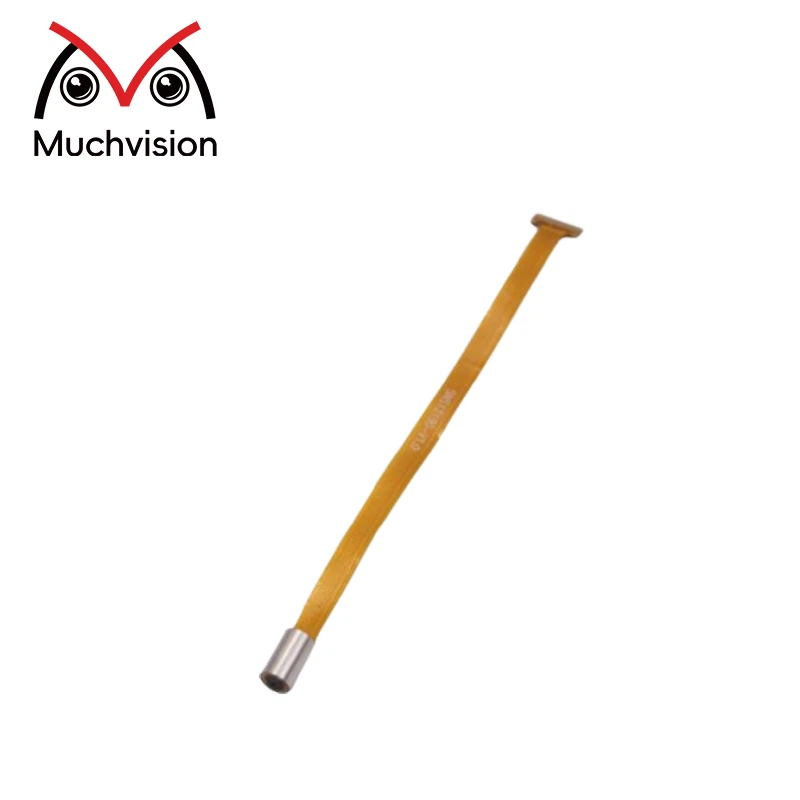

The SC035HGS-based SNS12190-V1.0 camera module combines a high-performance global shutter sensor with versatile interface support, delivering 640×480 VGA resolution at 180fps.
It is designed to meet the requirements of both technical applications (machine vision, industrial inspection, barcode scanning) and consumer applications (AR/VR, face recognition, gesture control).
With its compact 36×8mm form factor, low power consumption (≤120mW), and multi-platform compatibility, it is ideal for embedded vision and portable systems.
Highlights
High-Speed Capture – 640×480 VGA at 180fps
Global Shutter Sensor – Eliminates motion distortion
Flexible Interfaces – MIPI, DVP, LVDS for system integration
Compact & Low Power – 36×8mm size, ≤120mW consumption
Structure diagram
parameter
|
Parameter |
Specification |
|
Module Model |
SNS12190-V1.0 |
|
Sensor |
SC035HGS |
|
Resolution |
640×480 (VGA, 0.3MP) |
|
Frame Rate |
180fps @10bit |
|
Pixel Size |
3.744µm × 3.744µm |
|
Optical Format |
1/6" |
|
Shutter Type |
Global Shutter |
|
Output Interfaces |
MIPI (1/2 Lane), DVP, LVDS |
|
Output Format |
RAW MONO / RAW RGB |
|
Module Size |
36 × 8 mm |
|
Field of View (FOV) |
88° (optional) |
|
Power Consumption |
≤120mW |
|
Operating Temp |
-30℃ ~ +85℃ |
|
Supply Voltage |
AVDD 2.8V, DVDD 1.5V, IOVDD 1.8V |
