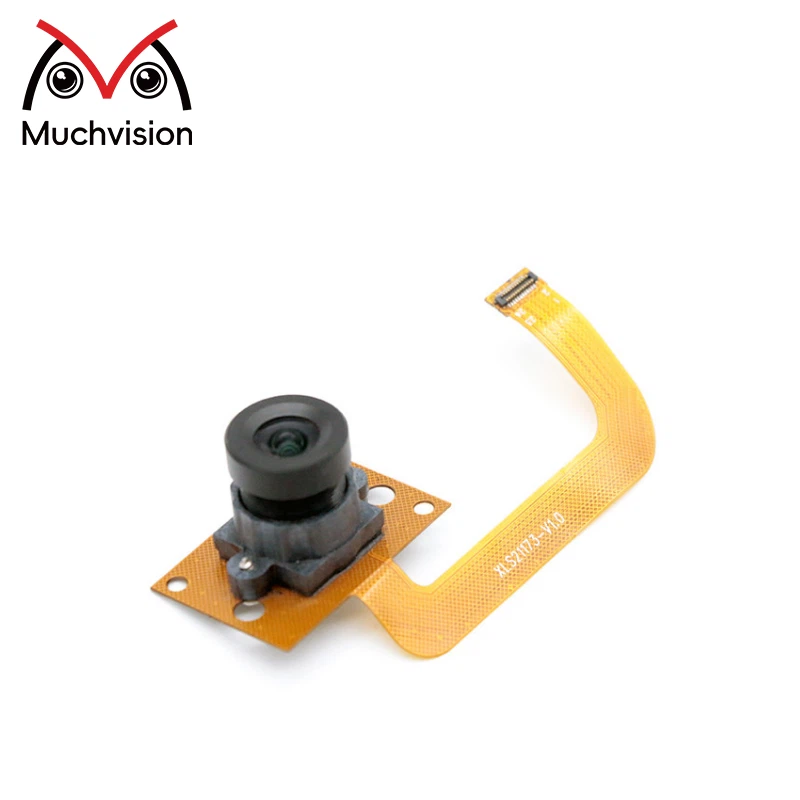

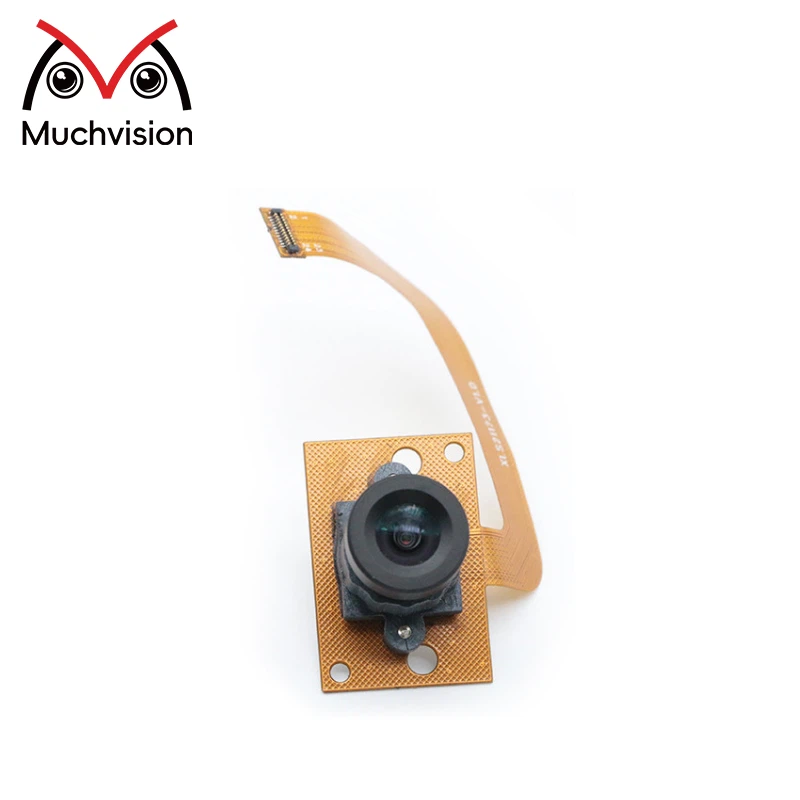

1080P 2MP MIPI Camera Module GC2053 Sensor
|
Module Number |
SNS-2MP-GC2053-KOP |
Sensor |
1/2.9'' GC2053 |
|
Resolution |
1920(H) X 1080(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
MIPI |
Feature |
Low Power Consumption |
Products Description
The GC2053 MIPI camera module is a compact HD imaging solution, providing 2MP resolution at 1920x1080 pixels. It is suitable for embedded systems, mobile devices, and video conferencing applications.
Equipped with the GC2053 sensor, the module offers high-speed data transmission through the MIPI interface. Its fixed focal length design simplifies assembly and integration. The module is optimized for low power consumption, extending battery life in portable devices.
This camera module supports 1080P full HD video at up to 30 frames per second. Its reliable performance makes it suitable for face recognition, security monitoring, automotive applications, and other professional embedded solutions. Customizable dimensions and lens FOV provide added flexibility for various projects.
Highlights
1080P Full HD Imaging: Provides smooth video at 1920x1080 resolution and 30FPS
GC2053 Sensor: Compact and efficient, optimized for embedded applications
Low Power Consumption: Ideal for battery-powered mobile and IoT devices
MIPI High-Speed Interface: Ensures fast and stable data transmission
Fixed Focal Length: Simplifies integration with reliable image output
Specification
|
Parameter |
Typical value |
|
Optical Format |
1/2.9inch |
|
Active pixel array |
1920*1080 |
|
Pixel Size |
2.8um*2.8um |
|
Shutter type |
Electonic rolling shutter |
|
ADC resolution |
10 bit ADC |
|
Max Frame rate |
30fps@full size |
|
Power Supply |
AVDD28:2.8V |
|
DVDD:1.2V |
|
|
IOVDD:1.8V |
|
|
Power Consumption |
TBD |
|
SNR |
TBD |
|
Dark Current |
TBD |
|
Sensitivity |
TBD |
|
Dynamic range |
TBD |
|
Operating temperature: |
-20°C to 80°C |
|
Stable Image temperature |
0°C to 60°C |
|
Optimal Lens chief ray angle(CRA) |
12(linear) |
|
Package type |
CSP |
|
Input clock frequency |
6-27MHz |
