100FPS FF Camera Module 0.3mp OV7251 DVP
|
Module Number |
XLS11787-V1.0 |
Sensor |
1/7.5" Omnivision OV7251 |
|
Resolution |
0.3MP 640(H) X 480(V) |
Dimension |
(customizable) |
|
Lens FOV |
85°(optional) |
Focus Type |
Fixed Focus |
|
Interface |
DVP |
Feature |
Global Shutter |
Products Description

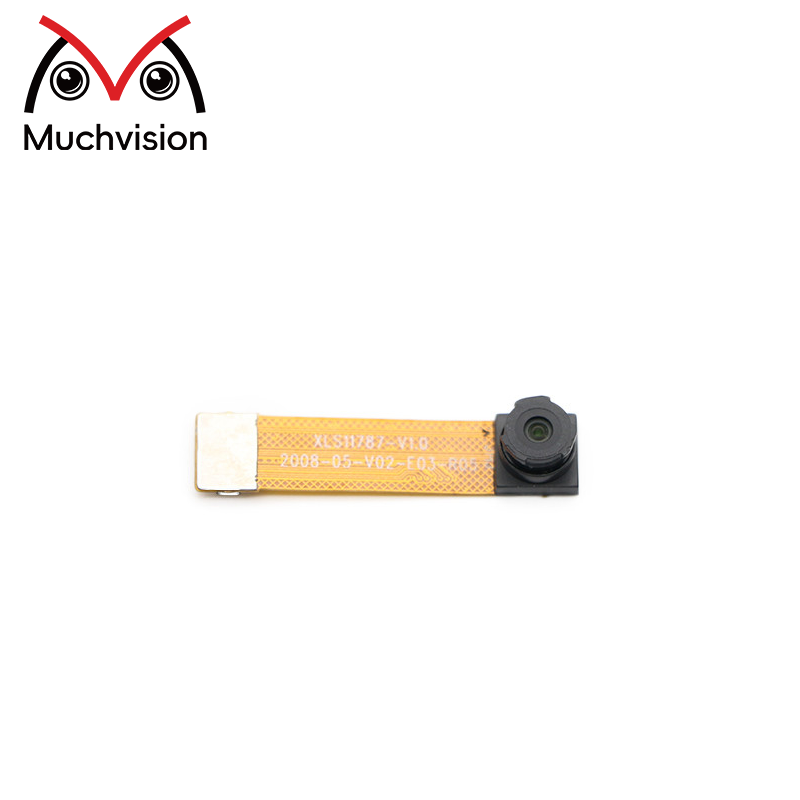

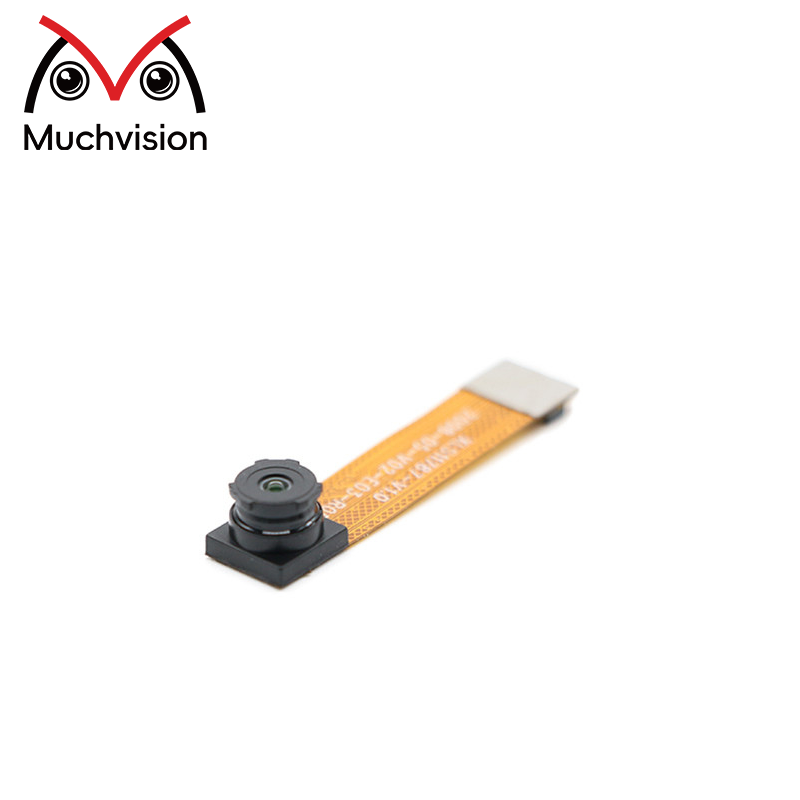

The XLS11787-V1.0 camera module features a 1/7.5-inch Omnivision OV7251 CMOS sensor. It outputs 0.3MP (640x480) monochrome images with global shutter, eliminating motion blur and jelly effect in high-speed scenes.
The module supports high frame rates of 640x480@120FPS and 320x240@200FPS, making it ideal for motion tracking, robot navigation, and barcode scanning. Its ultra-low power consumption of 120mW ensures efficiency in embedded applications.
Designed with a DVP interface, the compact module allows easy integration into real-time machine vision systems and high-speed capture applications.
Highlights
Omnivision OV7251 global shutter sensor.
0.3MP VGA (640x480) monochrome (black and white) image.
High frame rate: 640x480@120FPS; 320x240@200FPS.
Ultra-low power consumption (120mW).
Exceptional low-light sensitivity (10800mV/lux-sec).
Specification
|
Model No |
XLS11787-V1.0 |
|
Sensor |
1/7.5'' Omnivision OV7251 |
|
Pixel |
0.3 Mega Pixel |
|
Most effective pixels |
640(H) x 480(V), 320(H) x 240(V) |
|
Pixel Size |
3.0µm x 3.0µm |
|
Image area |
1968um(H) x 1488um (V) |
|
Compression format |
MJPG |
|
Resolution & Frame rate |
640x480@120fps; 320x240@200fps |
|
Shutter Type |
Global Shutter |
|
CFA (Chroma) |
Mono, Black/White |
|
Focus type |
Fixed focus |
|
S/N ratio |
38dB |
|
Dynamic range |
69.6dB |
|
Sensitivity |
10800mV / lux-sec |
|
Interface type |
DVP |
|
|
Brightness/Contrast/Color saturation/Hue/Definition//White balance |
|
Lens |
Focal length: 3.6mm |
|
Lens Size: 1/4 inch |
|
|
FOV: 60° |
|
|
Thread Size: M12*P0.5 |
|
|
Audio frequency |
Optional |
|
Power consumption |
DC 5V, 120mW |
|
Main chip |
DSP/SENSOR/FLASH |
|
Auto Exposure Control (AEC) |
Support |
|
Auto White Balance (AEB) |
Support |
|
Auto Gain Control (AGC) |
Support |
|
Dimension |
38mm*38mm (customizable with 32mm*32mm) |
|
Storage temperature |
-30°C to 70°C |
|
Operating temperature |
0°C to 60°C |
|
USB cable length |
Default |
|
Support OS |
WinXP/Vista/Win7/Win8/Win10 |
