Module Number |
SNS21648-V1.0 |
Sensor |
GC2145 |
|
Resolution |
1616V x 1232H |
Dimension |
(customizable) |
|
Lens FOV |
90°(optional) |
Focus Type |
FF |
|
Interface |
DVP |
Feature |
auto exposure |
Products Description

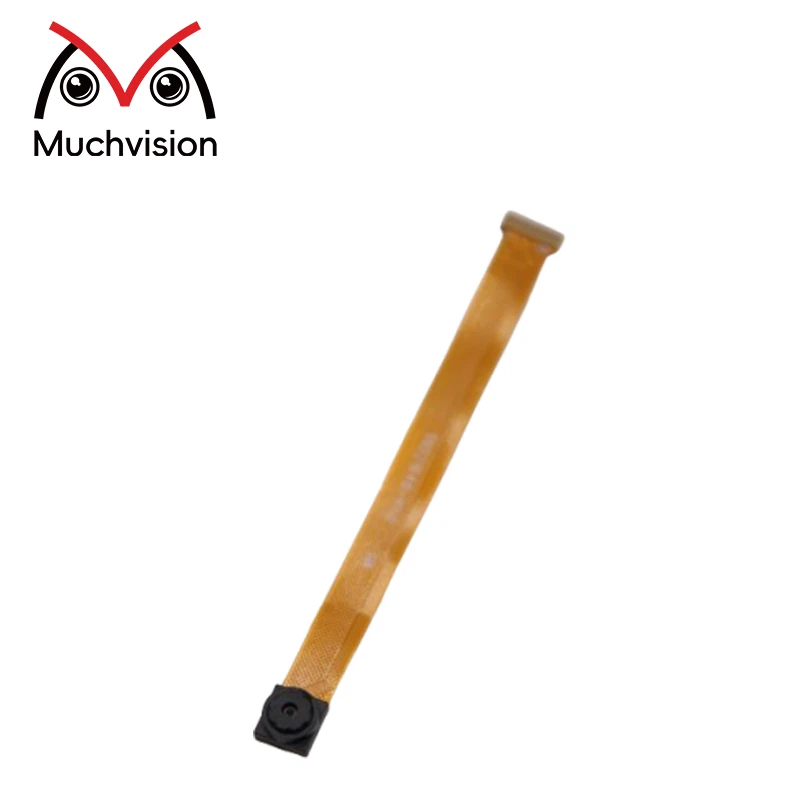

The GC2145-based SNS21648-V1.0 module combines high-resolution imaging with compact design and versatile platform support.
It offers 1616×1232 pixels and multiple output formats via DVP interface, along with an on-chip ISP for smooth auto exposure, accurate white balance, noise reduction, and color correction.
This makes it suitable for both technical and consumer applications, including mobile phones, smart home devices, drones, industrial scanners, and AR/VR systems. Low power consumption (180mW) and wide operating temperature range make it reliable in diverse conditions.
Highlights
· Compact, low-power, and highly compatible
· Produces smooth, accurate images under variable lighting
· Supports multiple platforms and device types
· Suitable for a wide range of applications from consumer electronics to industrial imaging
parameter
|
Parameter |
Specification |
|
Module Model |
SNS21648-V1.0 |
|
Sensor |
GC2145 |
|
Resolution |
1616×1232 (UXGA) |
|
Max Frame Rate |
15fps @24MHz (UXGA), 30fps @24MHz (SVGA/other resolutions) |
|
Pixel Size |
1.75µm × 1.75µm |
|
Optical Format |
1/5 inch |
|
Shutter |
Electronic Rolling Shutter |
|
Output Interface |
DVP |
|
Output Formats |
Bayer RGB, RGB565, YCbCr4:2:2 |
|
Power Consumption |
180mW (Active) |
|
Supply Voltage |
AVDD 2.7–3.0V, DVDD 1.7–1.9V, IOVDD 1.7–3.0V |
|
SNR |
37.5 dB |
|
Dynamic Range |
65 dB |
|
Dark Current |
4.2 mV/s |
|
Sensitivity |
1260 mV/Lux·s |
|
Operating Temp |
-20℃ ~ 70℃ |
|
Stable Image Temp |
0℃ ~ 50℃ |
|
CRA |
25° (non-linear) |
|
Package |
CSP / wafer |
|
Module Size |
76.5 × 6.5 mm |
|
FOV |
90° (optional) |
